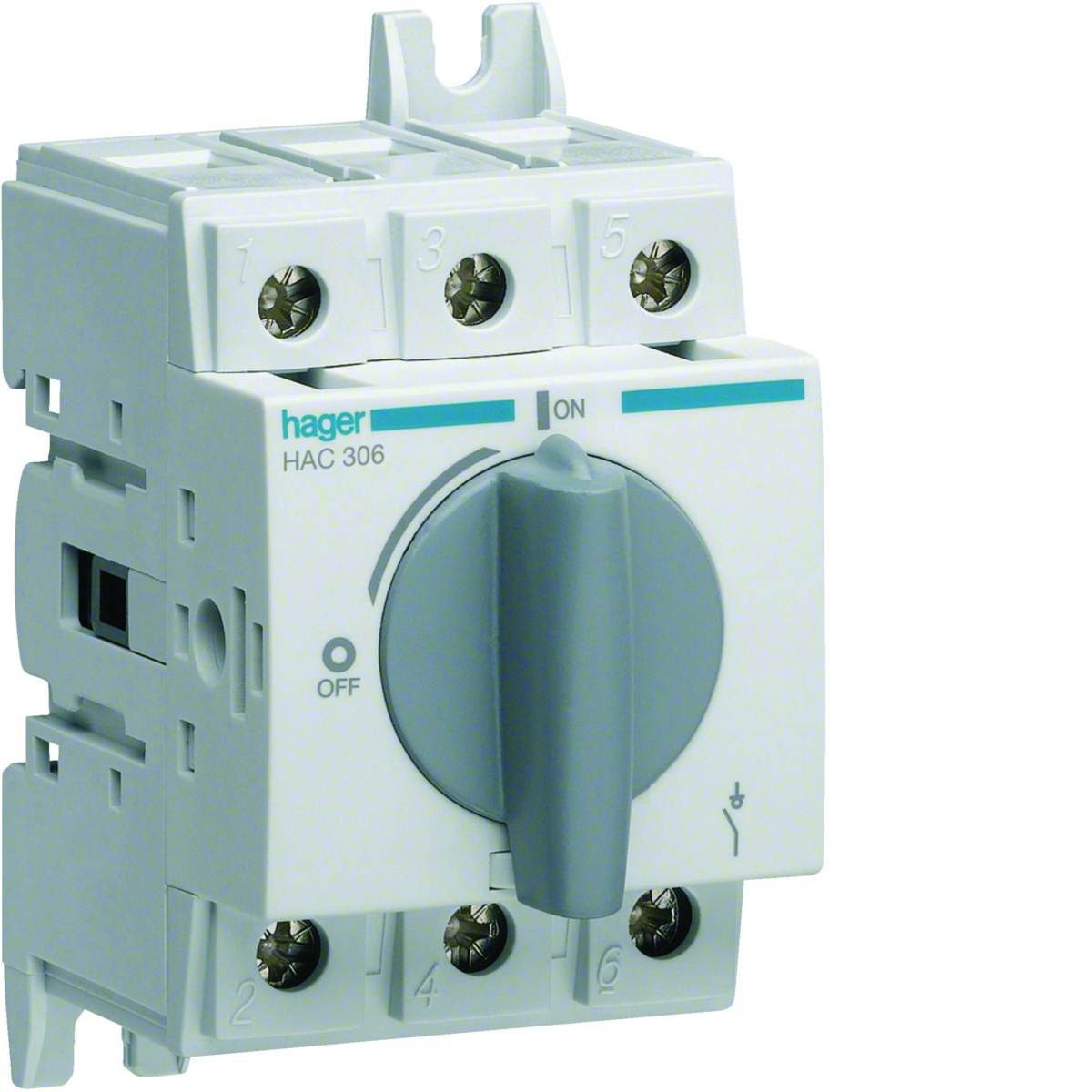

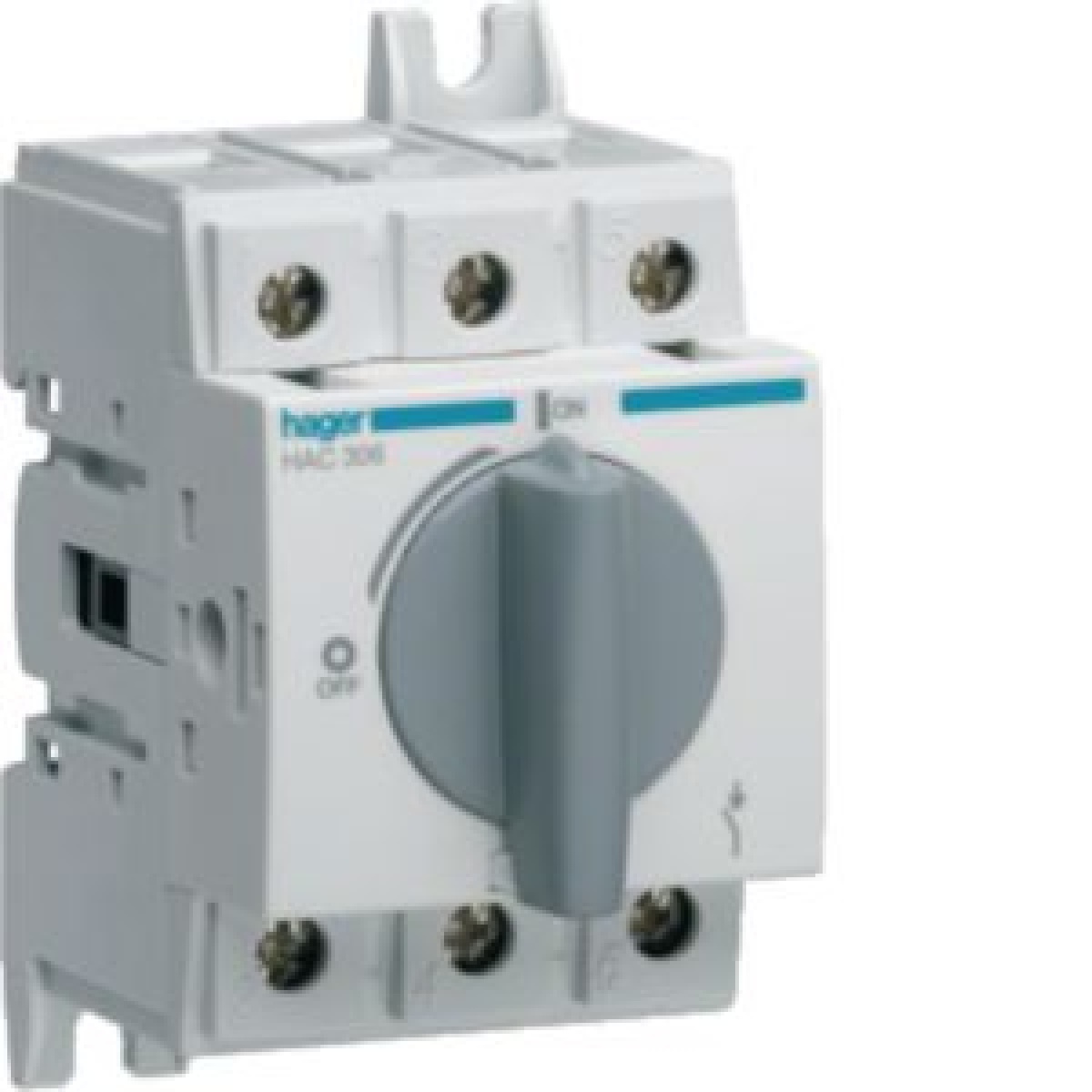

Inter. corte aparente 3P 63A 3M
Cutting and Protection Devices
Inter. corte aparente 3P 63A 3M
Nortécnica Ref:
71HAC306
EAN:
3250613140274
Description
Technical Information
Attributes
Width
52.5
Height
76
Depth
69
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
63
Number of poles
3
Rated operating voltage
380
415
Corrente condicional nominal de curto-circuito Iq
50
Width in number of modular spacings
3
Degree of protection IP, front side
IP20
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Short rotary handle
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
28
Corrente nominal suportável lcw atual
1.5
Colour control element
Grey
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
415
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
63
Switching power at 400 V
41
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
63
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager
Descrição Longa
Inter. corte aparente 3P 63A 3M
