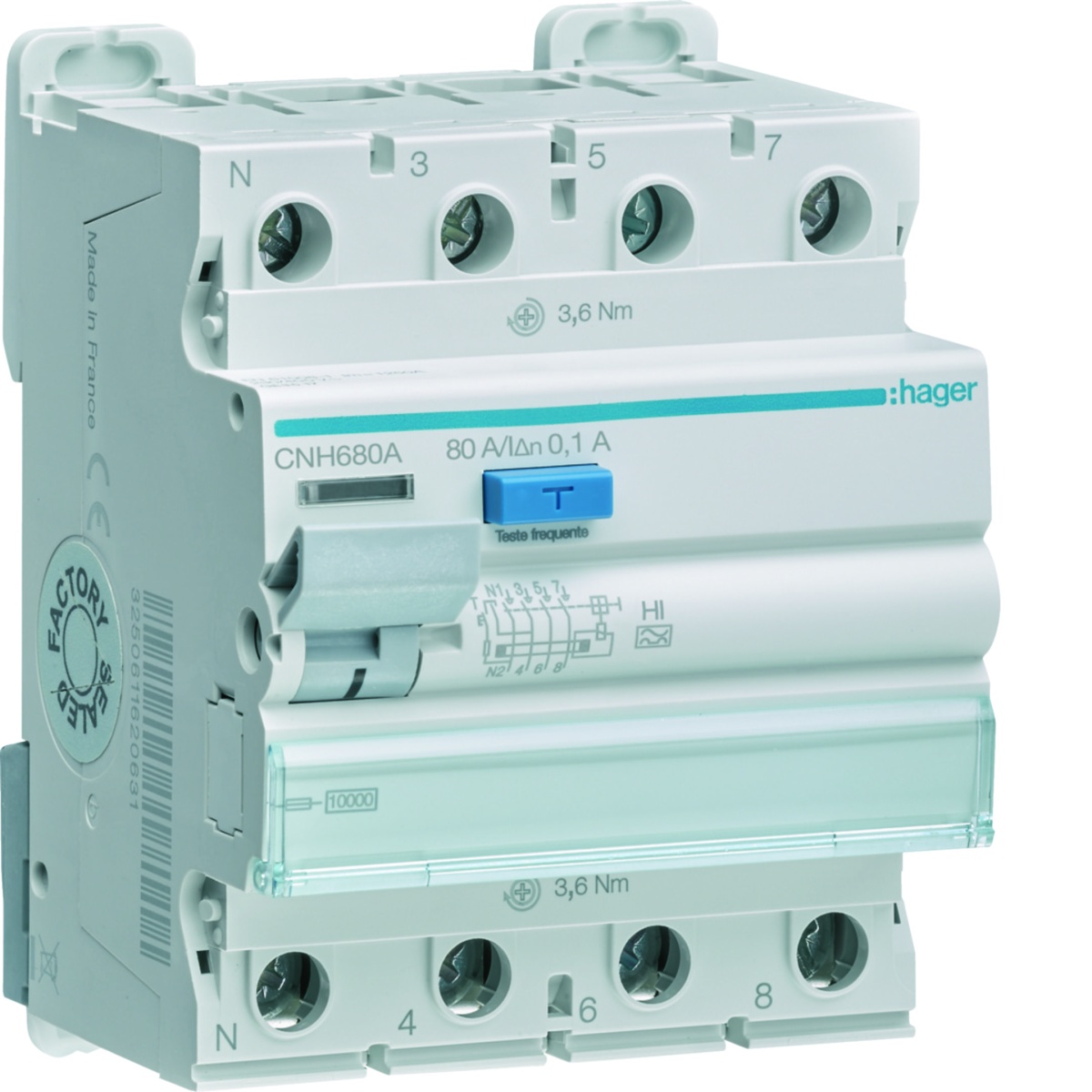

Inter. dif. 3P+N 80A sel 100mA A HI SEL 4M
Cutting and Protection Devices
Inter. dif. 3PN 80A 100mA A HI SEL 4M
Nortécnica Ref:
71CNH680A
EAN:
3250611621881
Description
Technical Information
Attributes
Mounting method
DIN rail
Voltage type
AC
Profundidade incorporada
70
Corrente nominal especificada
80
Tensão especificada de funcionamento
400
Tensão nominal de isolamento Ui
500
Número de polos
4
SensibilidadeCorrente nominal de defeito
0.1
Leakage current type
A
Selective protection
Yes
Short-circuit breaking capacity Icw
10
Surge current capacity
5
Grau de poluição
2
Largura em número de módulos
4
Short-time delayed tripping
Yes
Número RAL semelhante
7005
Explosion-proof
No
Potência dissipada
15.80
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
50
Connectable conductor cross section multi-wired
1
35
With interlocking device
Yes
Ambient temperature during operating
-25
70
Additional equipment possible
Yes
Tensão estipulada suportável ao choque Uimp
4
Brands
Hager
Descrição Longa
Inter. dif. 3P+N 80A sel 100mA A HI SEL 4M
