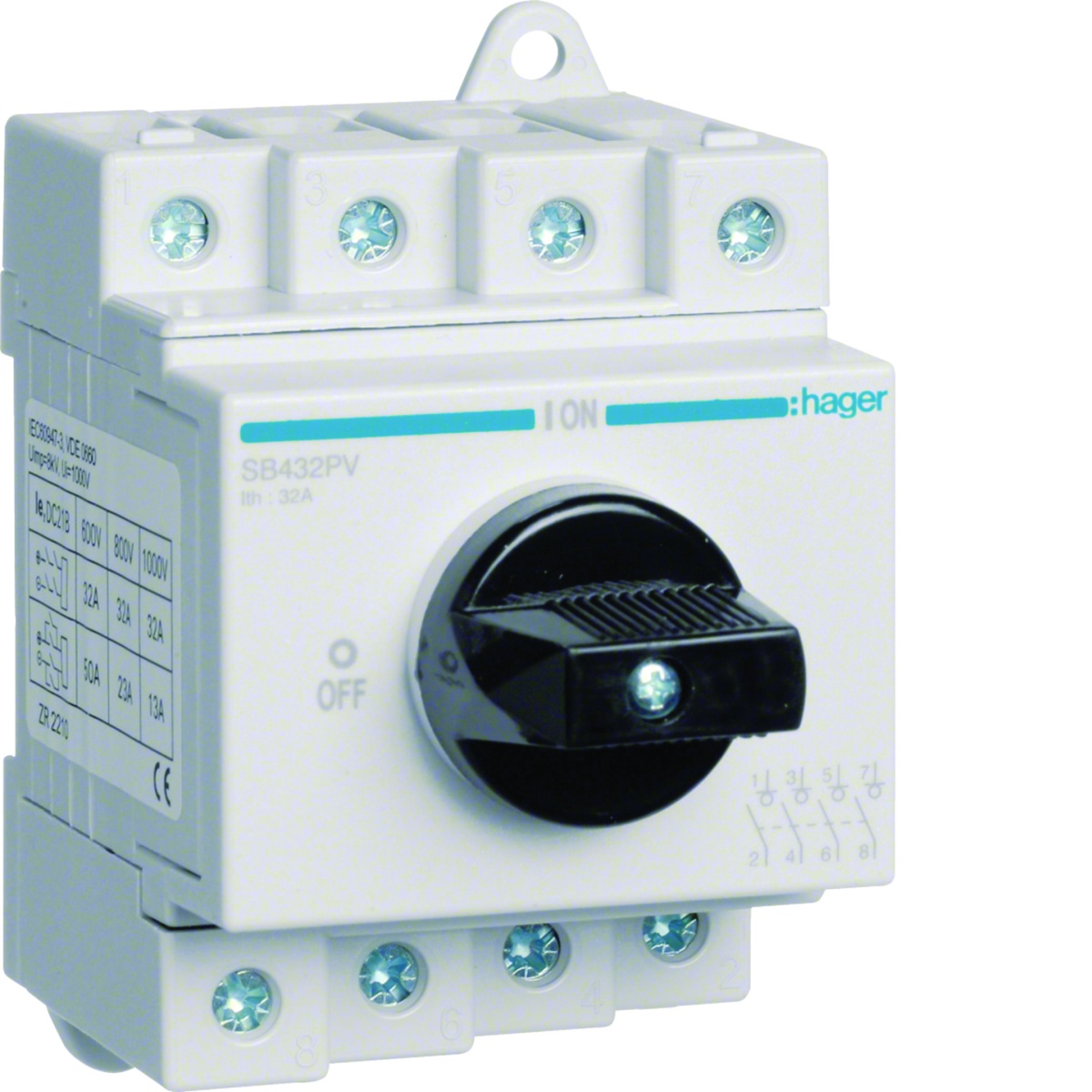

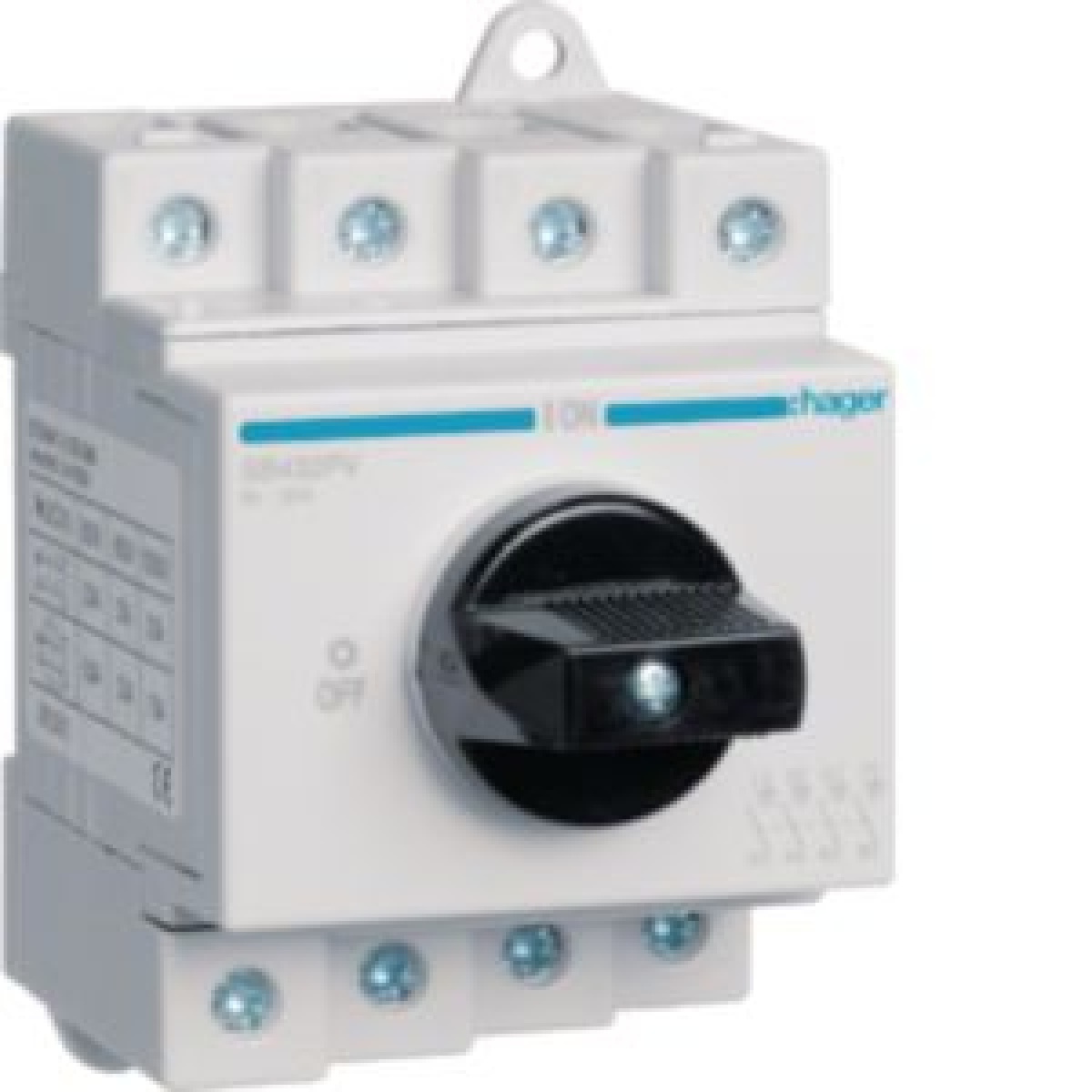

Interruptor 4P 32A 1000V DC
Cutting and Protection Devices
Interruptor 4P 32A 1000V DC
Nortécnica Ref:
71SB432PV
EAN:
3250615521392
Description
Technical Information
Attributes
Largura
60
Altura
85
Profundidade
72
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
32
Número de polos
4
Rated operating voltage
1000
1000
Corrente condicional nominal de curto-circuito Iq
-
Largura em número de módulos
3.5
Degree of protection IP, front side
IP20
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Short rotary handle
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
-
Corrente nominal suportável lcw atual
-
Colour control element
Black
EF007243
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Max. rated operation voltage Ue AC
-
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager
Descrição Longa
Interruptor 4P 32A 1000V DC
