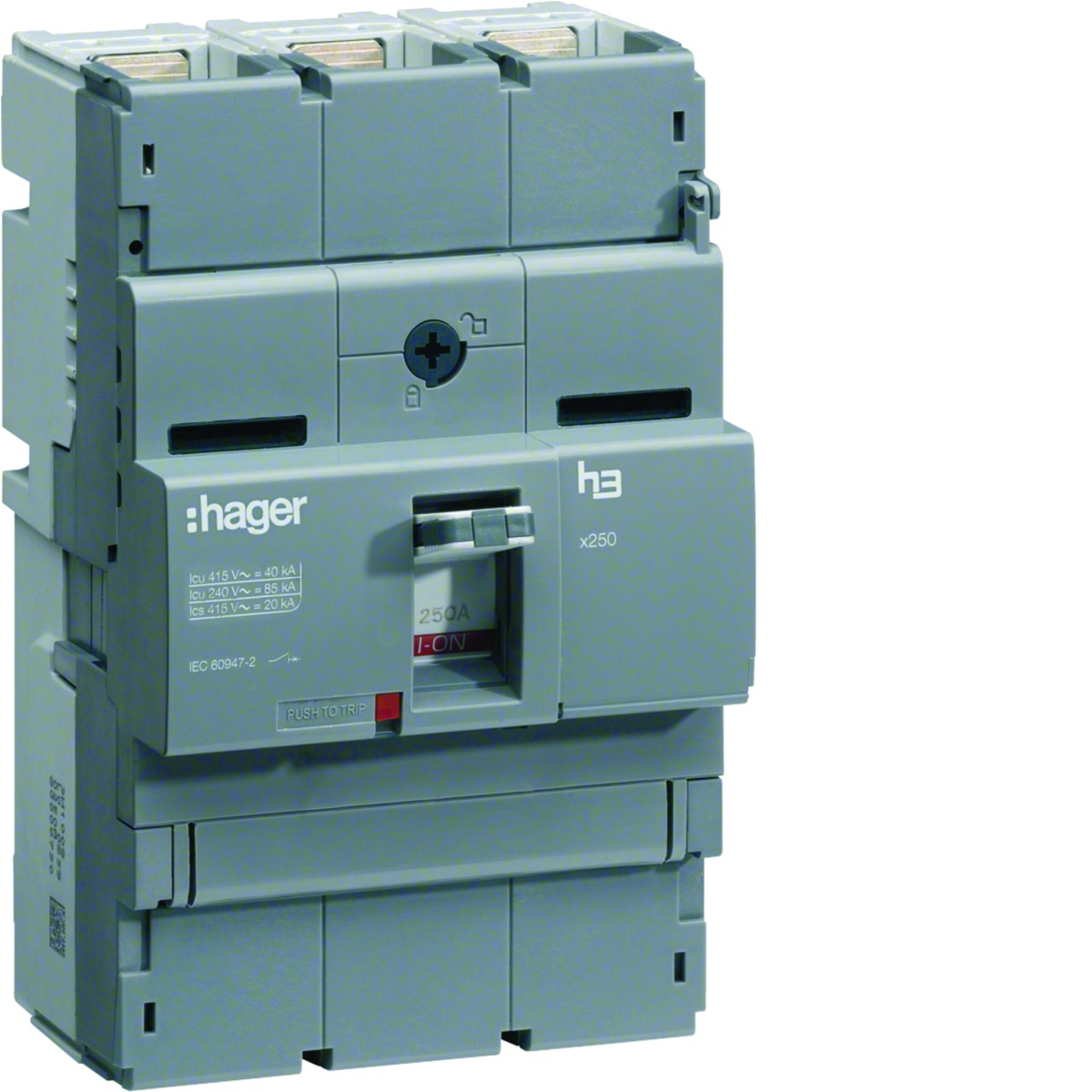

Interruptor geral x250 3P 250A
Cutting and Protection Devices
Interruptor geral x250 3P 250A
Nortécnica Ref:
EAN:
3250613136796
Description
Technical Information
Attributes
Width
105
Height
165
Depth
96
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
250
Number of poles
3
Rated operating voltage
220
415
Corrente condicional nominal de curto-circuito Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP40
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Cable clamp
Version as emergency stop installation
Yes
Type of control element
Wing knob
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
112
Corrente nominal suportável lcw atual
3
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
415
Motor drive optional
Yes
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
250
Switching power at 400 V
164
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
0
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager
Long Description
Interruptor geral x250 3P 250A
