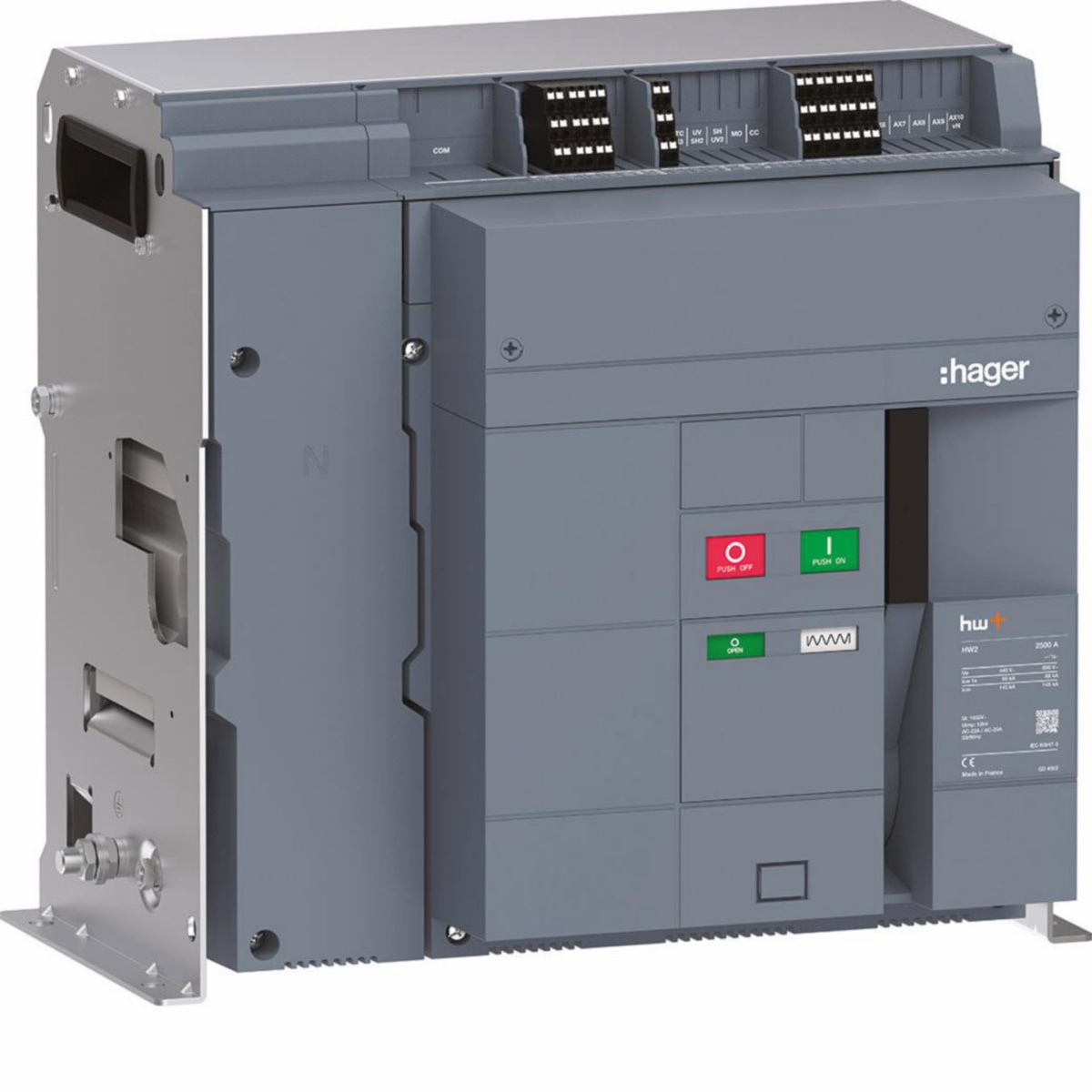

Interruptor HW2 2500A 4P HC/VC
Cutting and Protection Devices
Interruptor HW2 2500A 4P HCVC
Nortécnica Ref:
EAN:
3250610031773
Description
Technical Information
Attributes
Width
306.5
Height
443
Depth
415.5
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
2500
Number of poles
4
Rated operating voltage
440
690
Corrente condicional nominal de curto-circuito Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP2X
Número de contatos auxiliares como contato de comutação
4
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Rail connection
Version as emergency stop installation
No
Type of control element
Push button
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
1126
Corrente nominal suportável lcw atual
66
Colour control element
-
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Max. rated operation voltage Ue AC
690
Motor drive optional
Yes
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
2500
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
2500
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager
Long Description
Interruptor HW2 2500A 4P HC/VC
