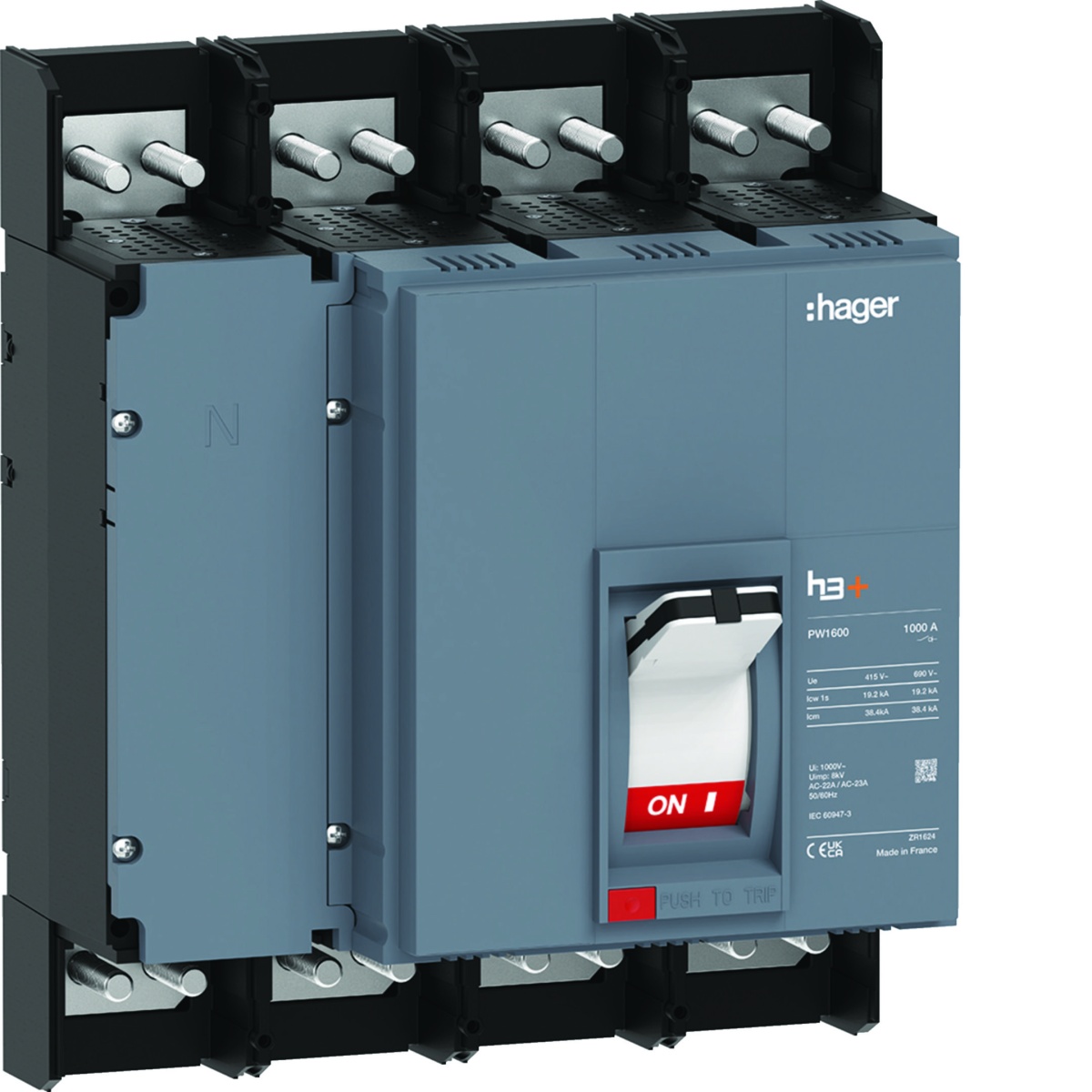

Interruptor PW1600 4P 1000A
Cutting and Protection Devices
Interruptor PW1600 4P 1000A
Nortécnica Ref:
71HMQ971AR
EAN:
3250613251277
Description
Technical Information
Attributes
Largura
280
Altura
330
Profundidade
198
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
1000
Número de polos
4
Rated operating voltage
220
690
Corrente condicional nominal de curto-circuito Iq
-
Largura em número de módulos
16
Degree of protection IP, front side
IP40
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Version as emergency stop installation
No
Type of control element
Wing knob
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
450
Corrente nominal suportável lcw atual
19.2
Colour control element
Grey
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
Yes
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
1000
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
1000
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager
Descrição Longa
Interruptor PW1600 4P 1000A
