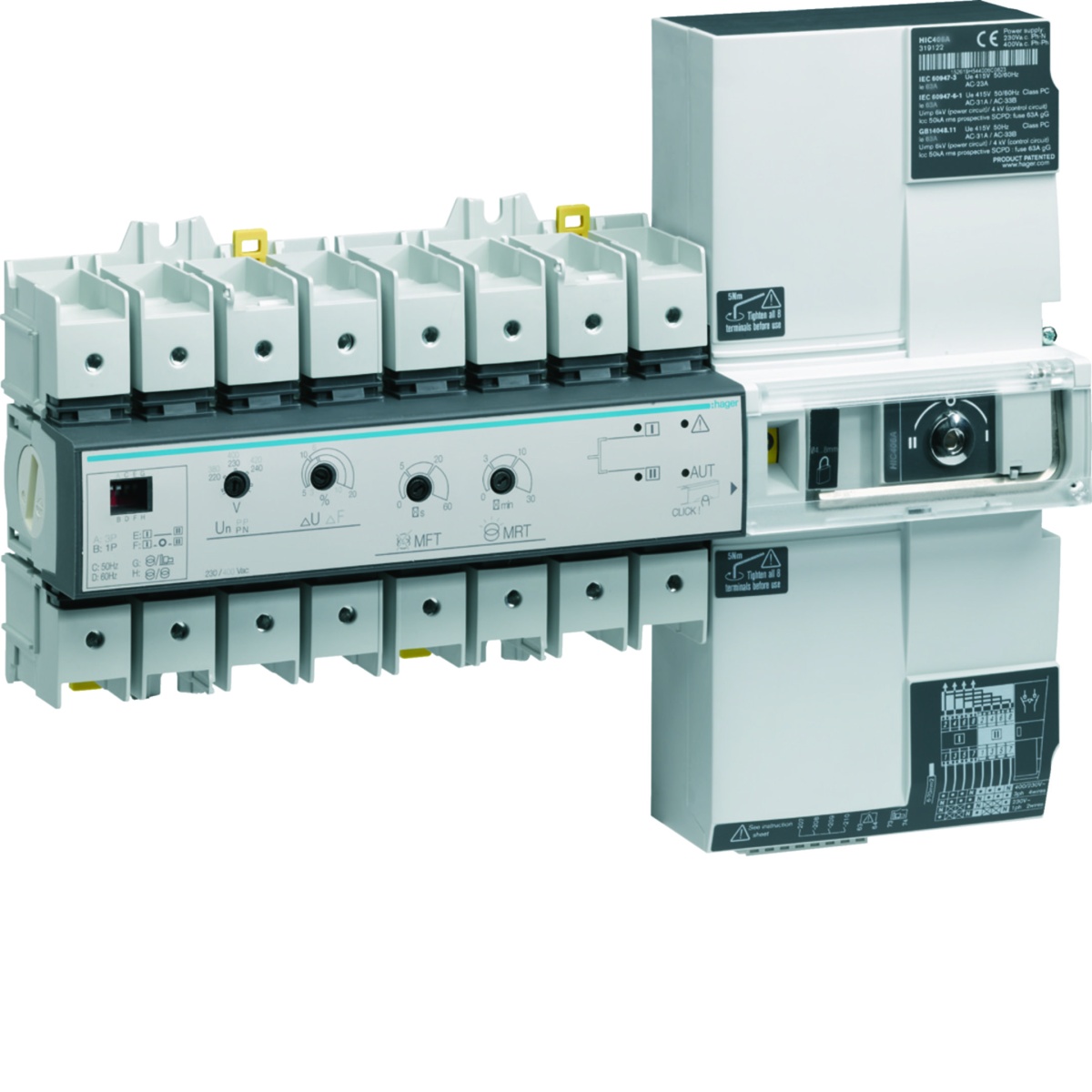

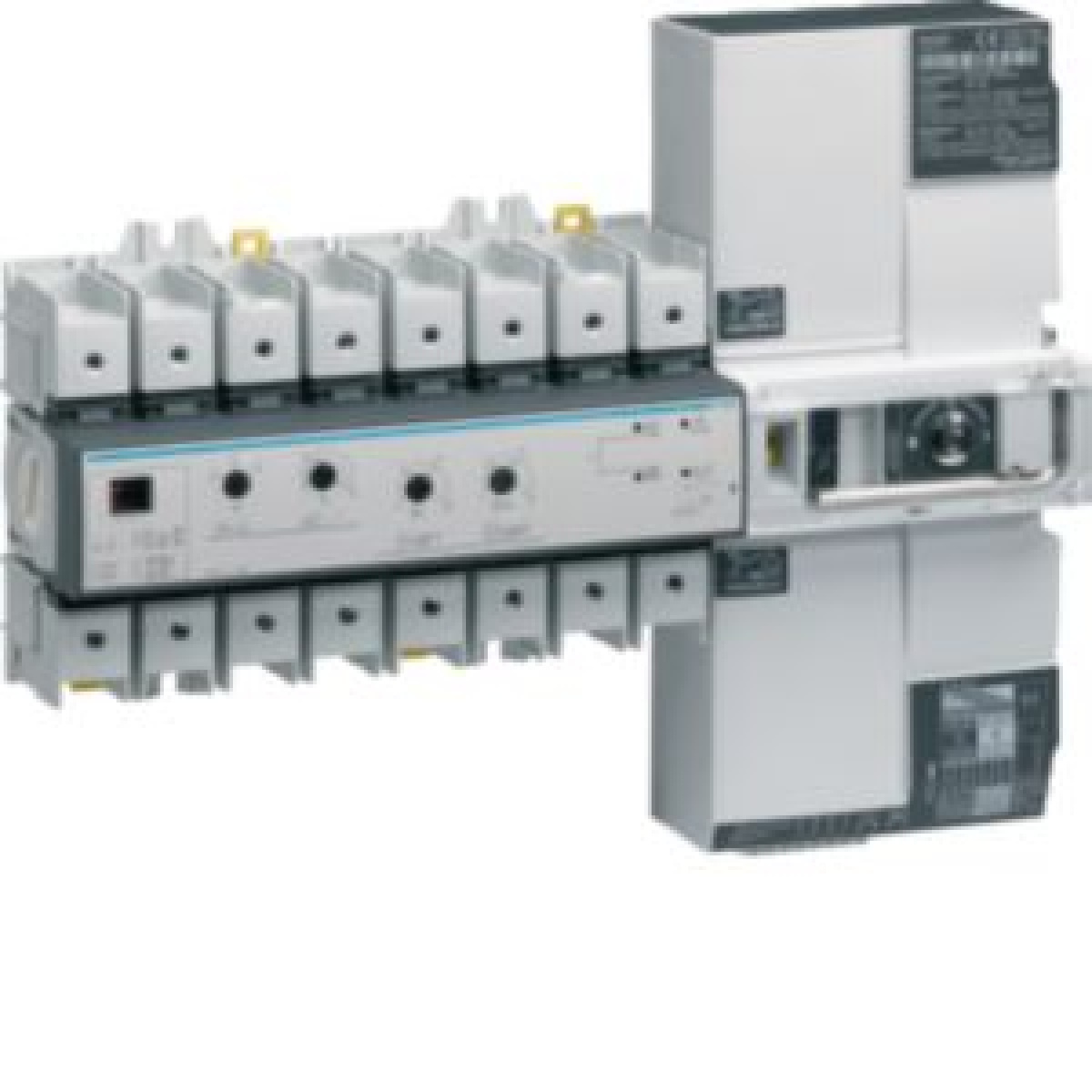

Invers. cmdo motorizado 4P 160A 19M
Cutting and Protection Devices
Invers. cmdo motorizado 4P 160A 19M
Nortécnica Ref:
71HIC416A
EAN:
3250613191269
Description
Technical Information
Attributes
Width
332
Height
73.5
Depth
245
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
160
Number of poles
4
Rated operating voltage
380
415
Corrente condicional nominal de curto-circuito Iq
40
Width in number of modular spacings
-
Degree of protection IP, front side
IP20
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
Yes
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Other
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
56
Corrente nominal suportável lcw atual
7
Colour control element
Other
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
415
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
160
Switching power at 400 V
105
Version as reversing switch
Yes
Rated permanent current at AC-23, 400 V
125
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager
Descrição Longa
Invers. cmdo motorizado 4P 160A 19M
