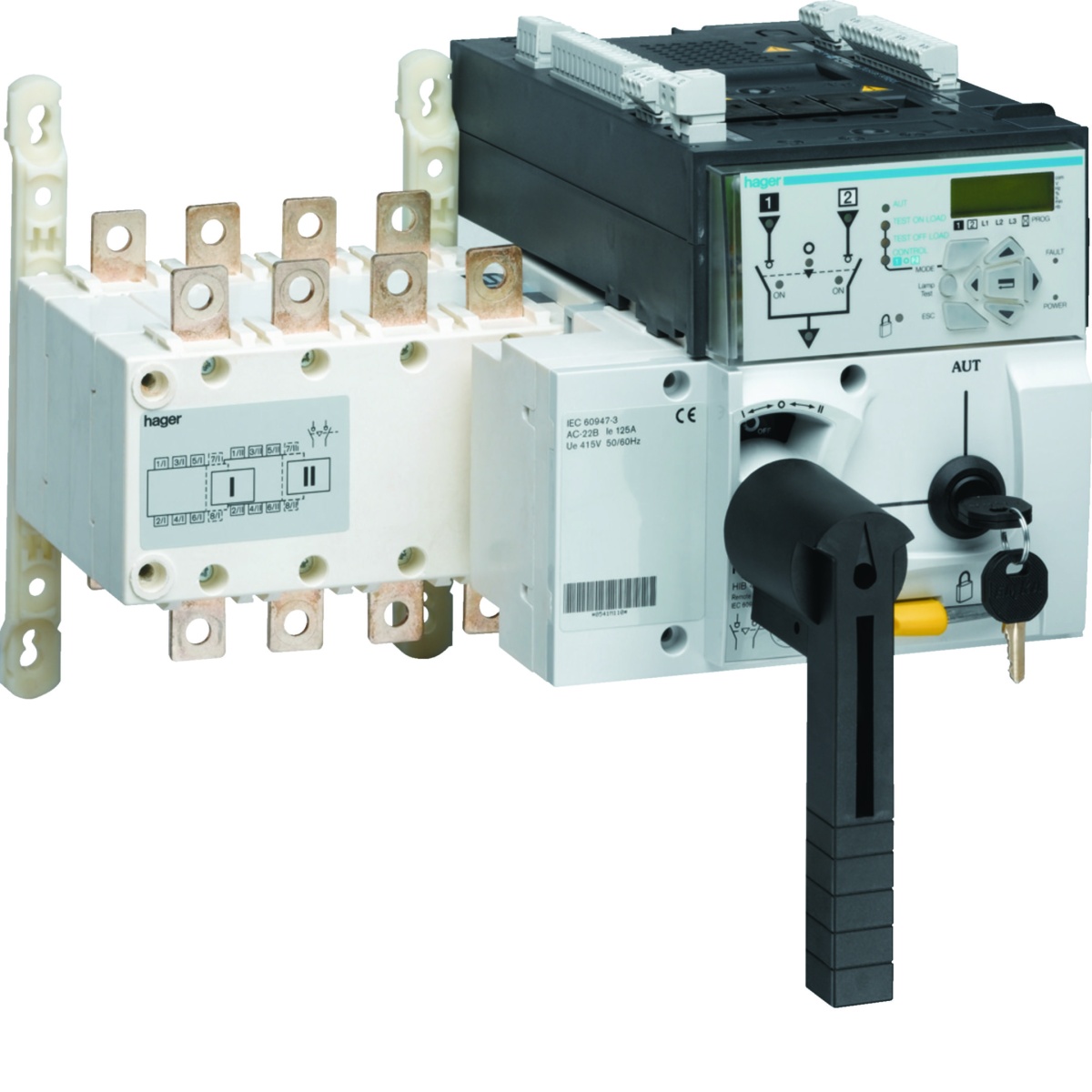

Invers. cmdo motorizado c/relé 4P 800A
Cutting and Protection Devices
Invers. cmdo motorizado crelé 4P 800A
Nortécnica Ref:
71HIC480
EAN:
3250613190392
Description
Technical Information
Attributes
Width
-
Height
-
Depth
-
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
1
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
800
Number of poles
4
Rated operating voltage
380
415
Corrente condicional nominal de curto-circuito Iq
50
Width in number of modular spacings
-
Degree of protection IP, front side
IP00
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
Yes
Type of electrical connection of main circuit
Cable clamp
Version as emergency stop installation
No
Type of control element
-
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
360
Corrente nominal suportável lcw atual
26
Colour control element
-
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
415
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
800
Switching power at 400 V
526
Version as reversing switch
Yes
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
-
With pre-assembled cabling
-
Brands
Hager
Descrição Longa
Invers. cmdo motorizado c/relé 4P 800A
