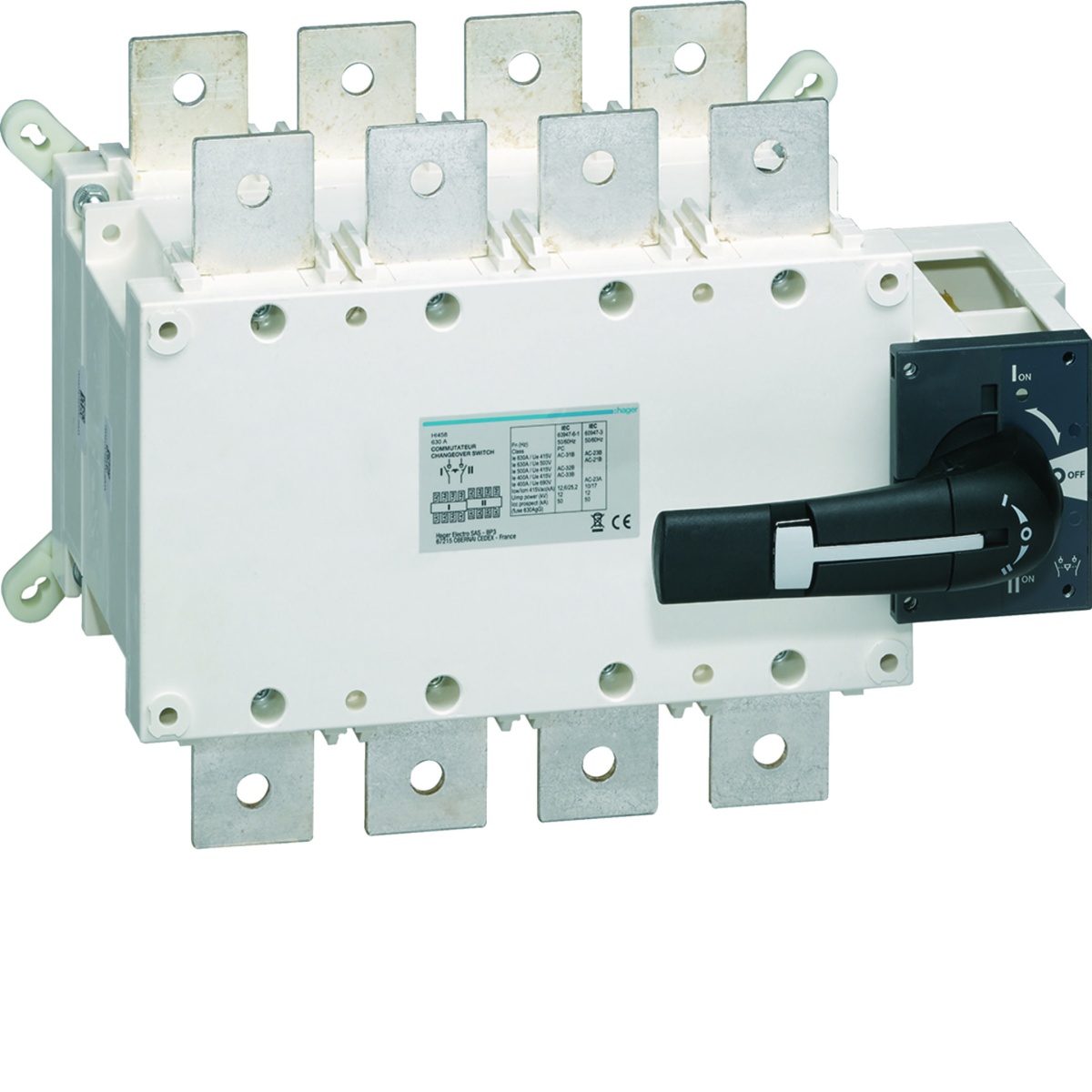

Invers. cmdo. manual 4P 630A
Cutting and Protection Devices
Invers. cmdo. manual 4P 630A
Nortécnica Ref:
71HI458
EAN:
3250613190057
Description
Technical Information
Attributes
Width
379
Height
260
Depth
295
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
630
Number of poles
4
Rated operating voltage
380
690
Corrente condicional nominal de curto-circuito Iq
50
Width in number of modular spacings
12
Degree of protection IP, front side
IP00
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Cable clamp
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
225
Corrente nominal suportável lcw atual
17
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
630
Switching power at 400 V
414
Version as reversing switch
Yes
Rated permanent current at AC-23, 400 V
500
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager
Descrição Longa
Invers. cmdo. manual 4P 630A
