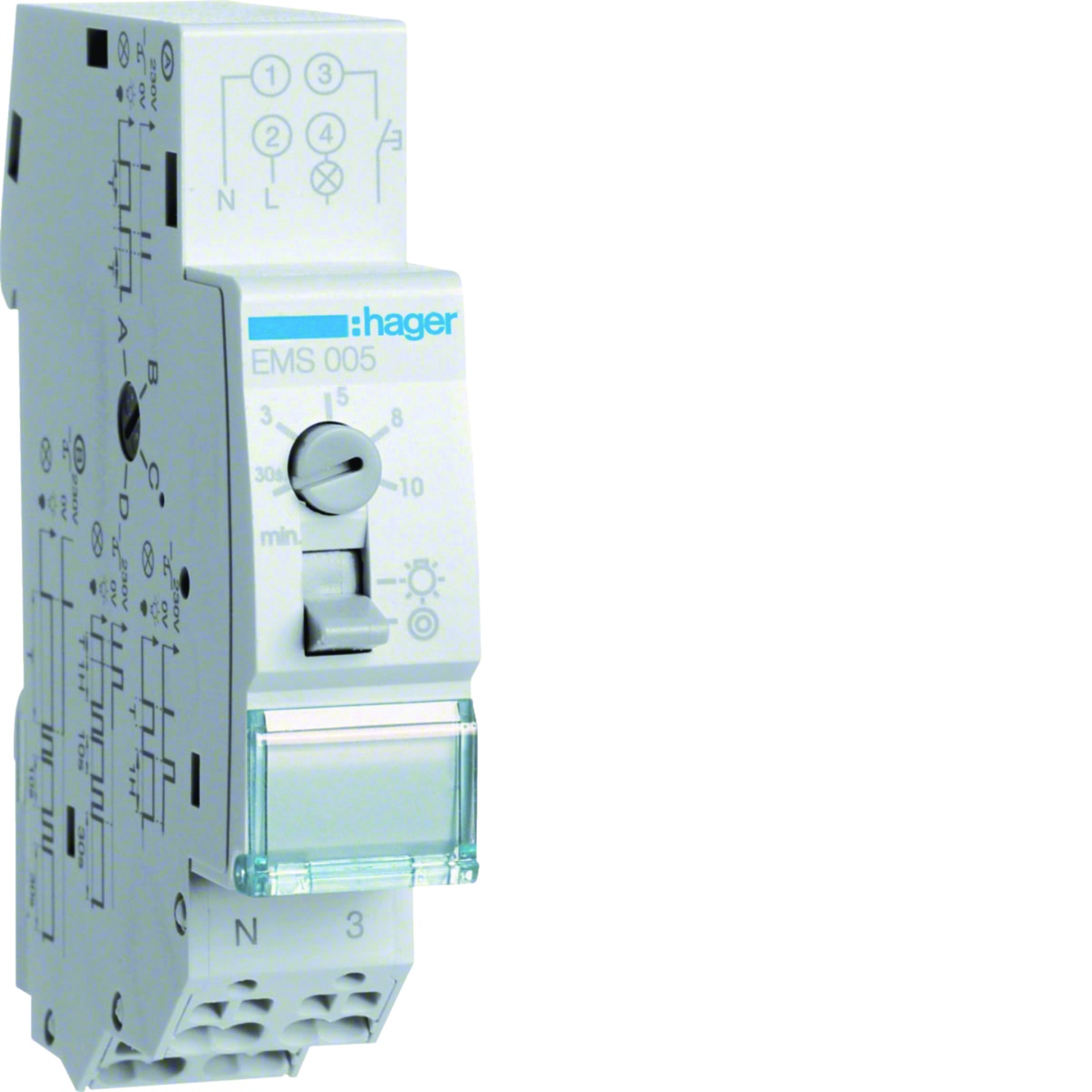

Aut. escada multifunções lig. rápida
Management and Measuring Devices
Aut. escada multifunções lig. rápida
Nortécnica Ref:
71EMS005
EAN:
3250612339921
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Electronic
Built-in depth
64
Power consumption
-
Release-delay
0.5
10
Width in number of modular spacings
1
Control voltage 1
230
230
Control voltage 2
230
230
Type of control voltage 1
AC
Type of control voltage 2
AC
Frequency control voltage 1
50
60
Frequency control voltage 2
50
60
Wiring system
3 and 4 wire configuration
Prewarning of switchingoff
Flickering
Repetitive
Repetitive
Voltage type supply voltage
AC
Supply voltage
230
230
Máx. corrente de comutação cos phi 0,6
16
Carga máxima lâmpada incandescente
2300
Carga máxima lâmpada fluorescente
3600
Carga máxima lâmpada fluorescente circuito Duo
1000
Carga máxima lâmpada fluorescente compensada em paralelo
1000
Rated switch current
16
Corrente do botão de pressão da lâmpada incandescente
100
Current surge function selectable
No
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Max. switching power LED
400
Brands
Hager
Long Description
Aut. escada multifunções lig. rápida
