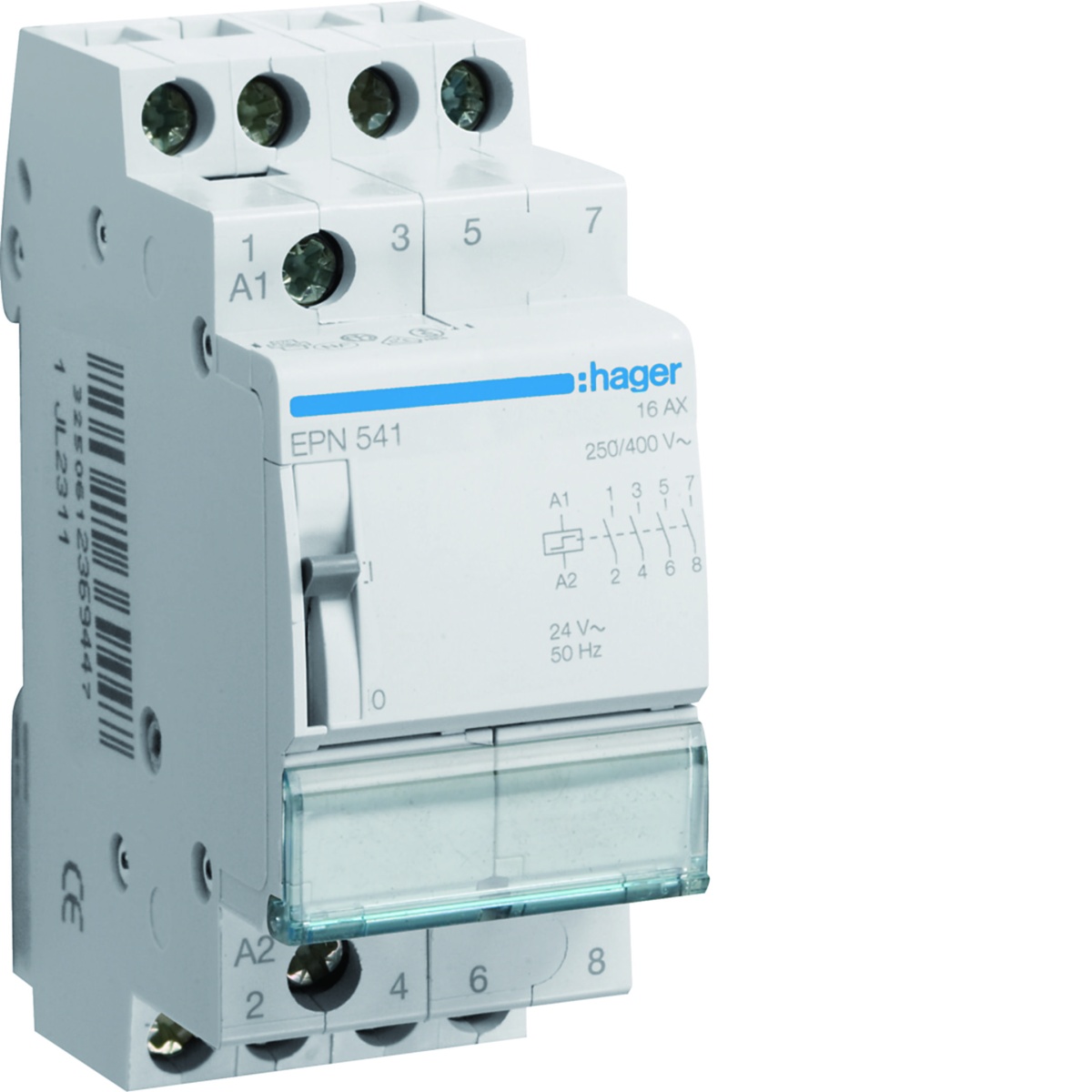

Telerruptor 24V 50Hz 4NA 2M
Management and Measuring Devices
Telerruptor 24V 50Hz 4NA 2M
Manufacturer Ref:
EPN541
Nortécnica Ref:
71EPN541
EAN:
3250612369447
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Mechanical switch
Built-in depth
63
Width in number of modular spacings
35
Control voltage 1
24
24
Control voltage 2
12
12
Type of control voltage 1
AC
Type of control voltage 2
DC
Frequency control voltage 1
50
60
Frequency control voltage 2
50
60
Suitable for manual operation
Yes
Voltage type supply voltage
AC
Supply voltage
250
400
Max. switching current cos phi 0.6
16
Max. incandescent lamp load
1800
Max. load fluorescent lamp
800
Max. load fluorescent lamp Duo circuit
1600
Max. load fluorescent lamp parallel compensated
900
Rated switch current
16
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
4
Number of contacts as change-over contact
0
Brands
Hager Sistemas Eléctricos Modulares SA
