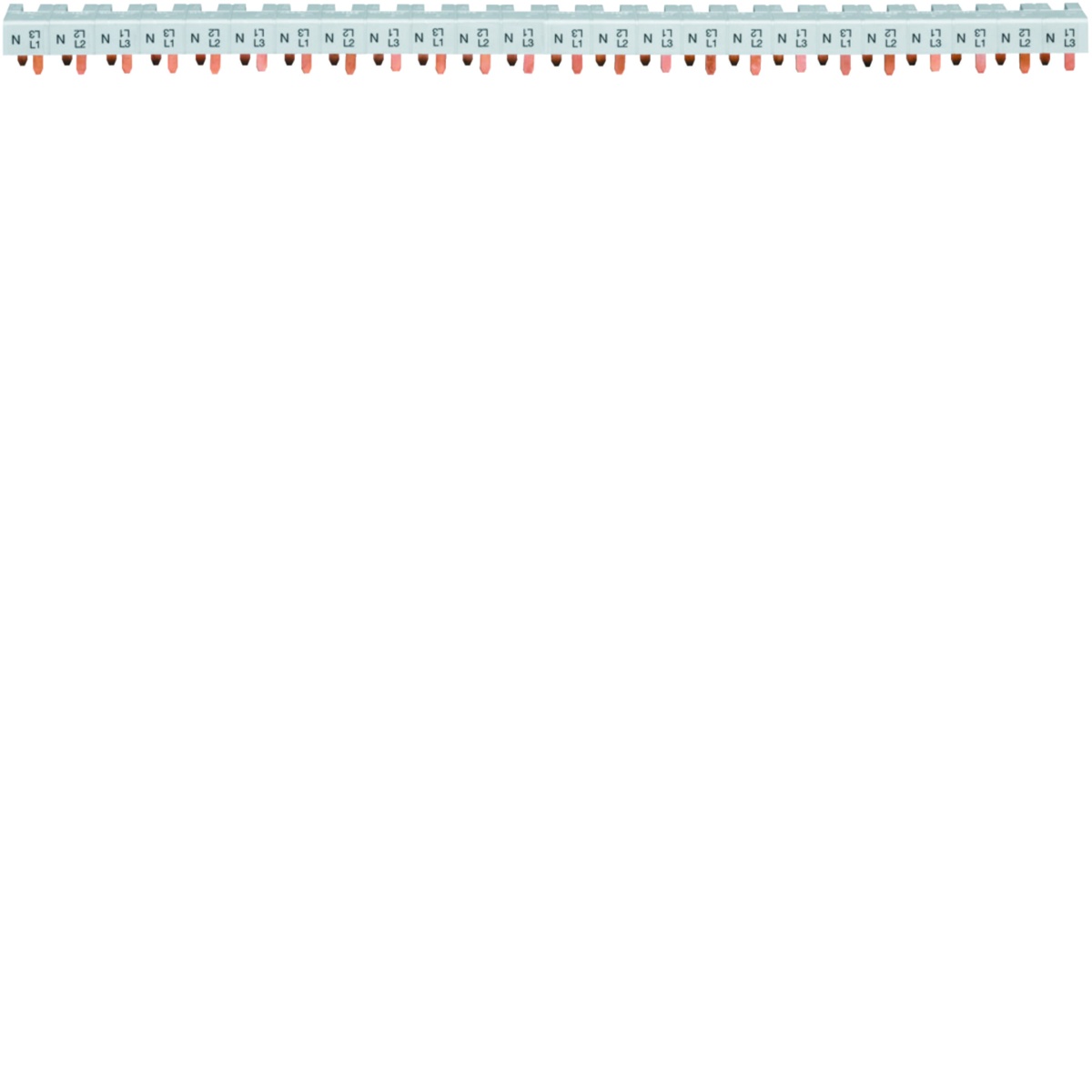

Pente de ligação 3P+N 63A para sist. P+N 24M KBN663C compatível com os produtos modulares da oferta hager, como disjuntores, interruptores diferenciais ou disjuntores diferenciais.
Accessories and Components
Pente de ligação 3PN 63A para sist. PN 24M
Nortécnica Ref:
71KBN663C
EAN:
3250613720803
Description
Technical Information
Attributes
Colour
Grey
Insulated
Yes
Number of phases
3
Cross section
10
Rated permanent current Iu
63
Número de polos
4
Comprimento
428
Conditioned rated short-circuit current Iq
-
Width in number of modular spacings
24
Rated surge voltage
4
Type of electric connection
Pin
Rated short-time withstand current lcw
-
Suitable for devices with auxiliary switch
No
Suitable for devices with N-conductor
Yes
Suitable for number of devices
6
Max. rated operation voltage Ue
400
Module width
17.8
Can be cut to size
Yes
Brands
Hager
