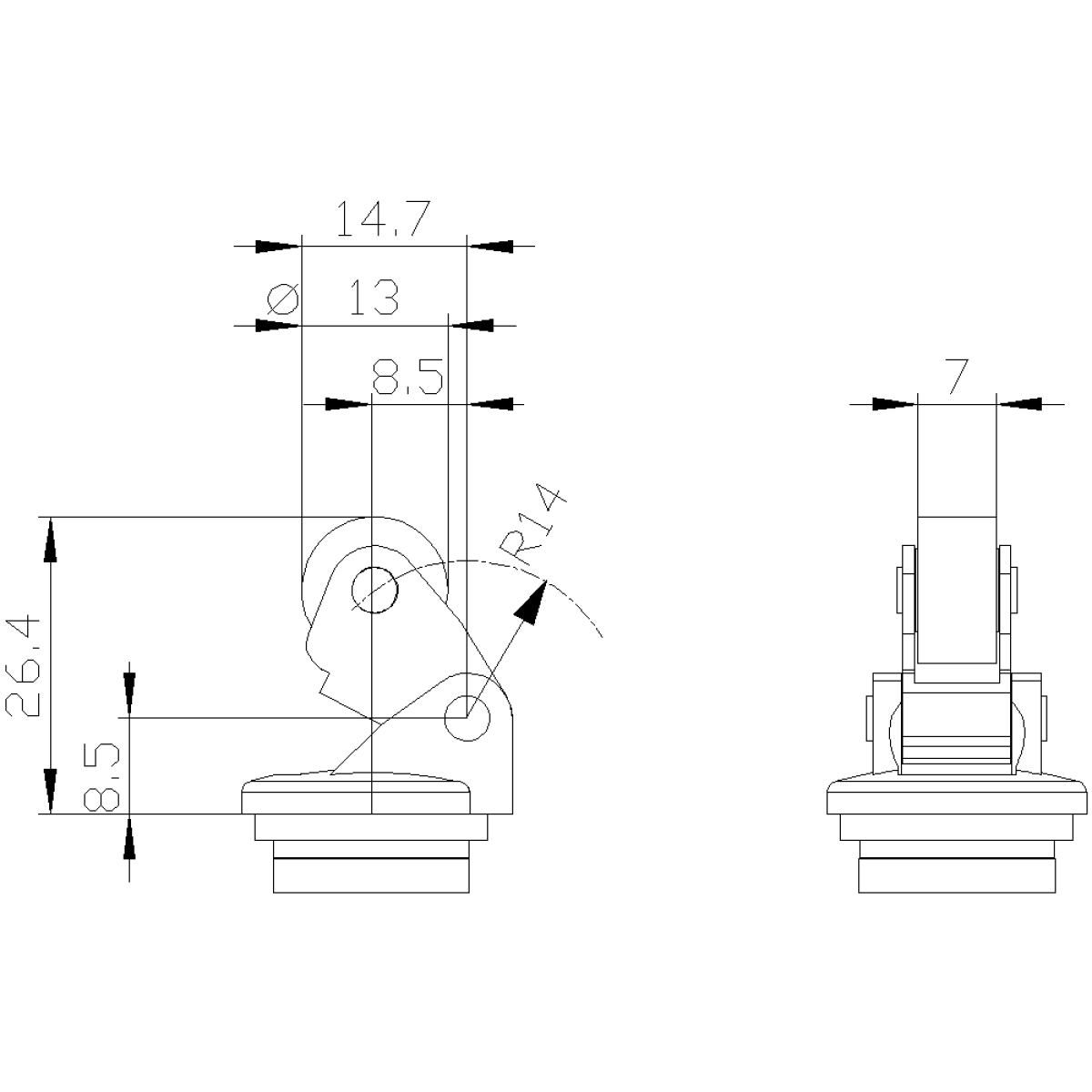

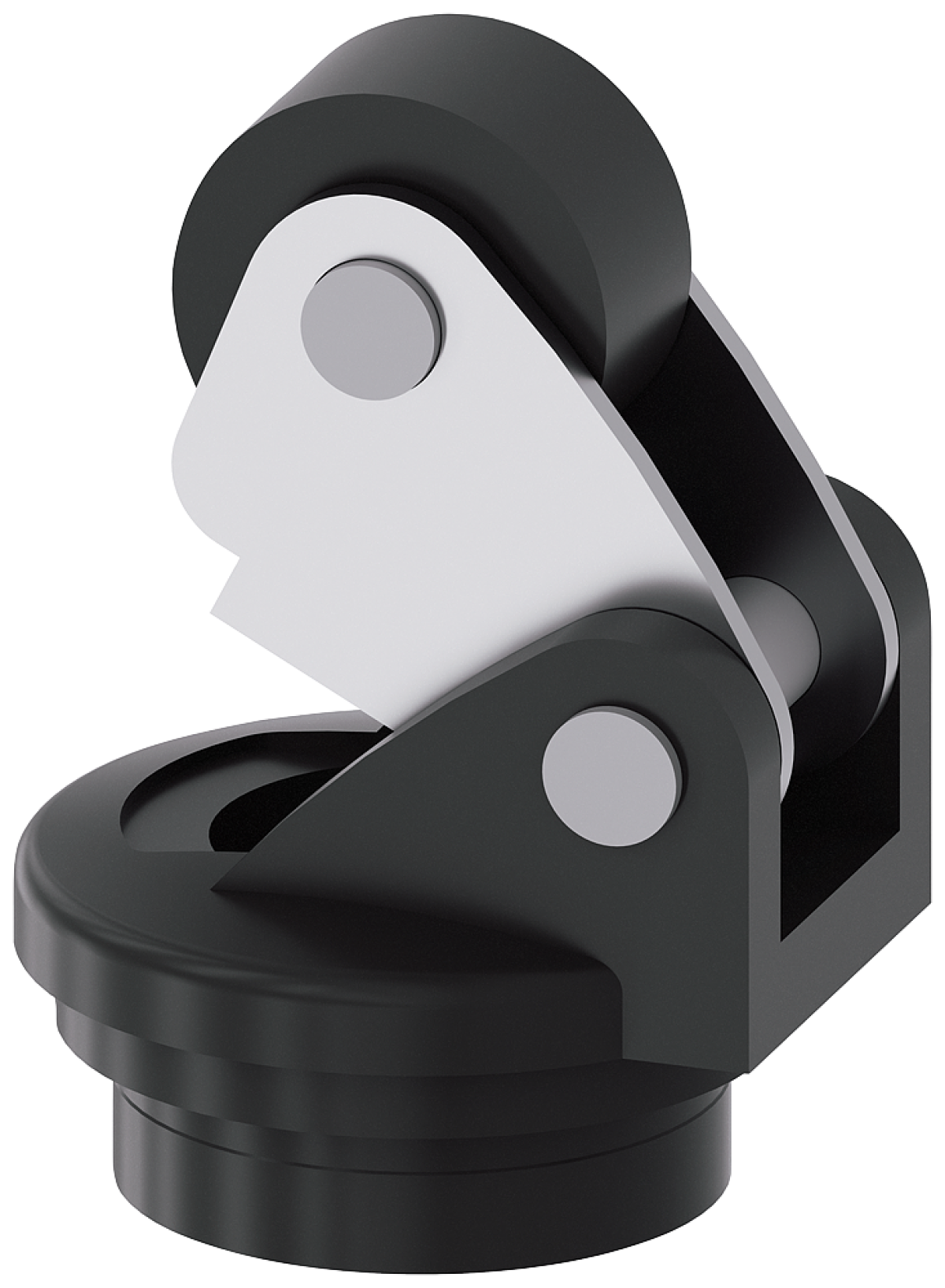

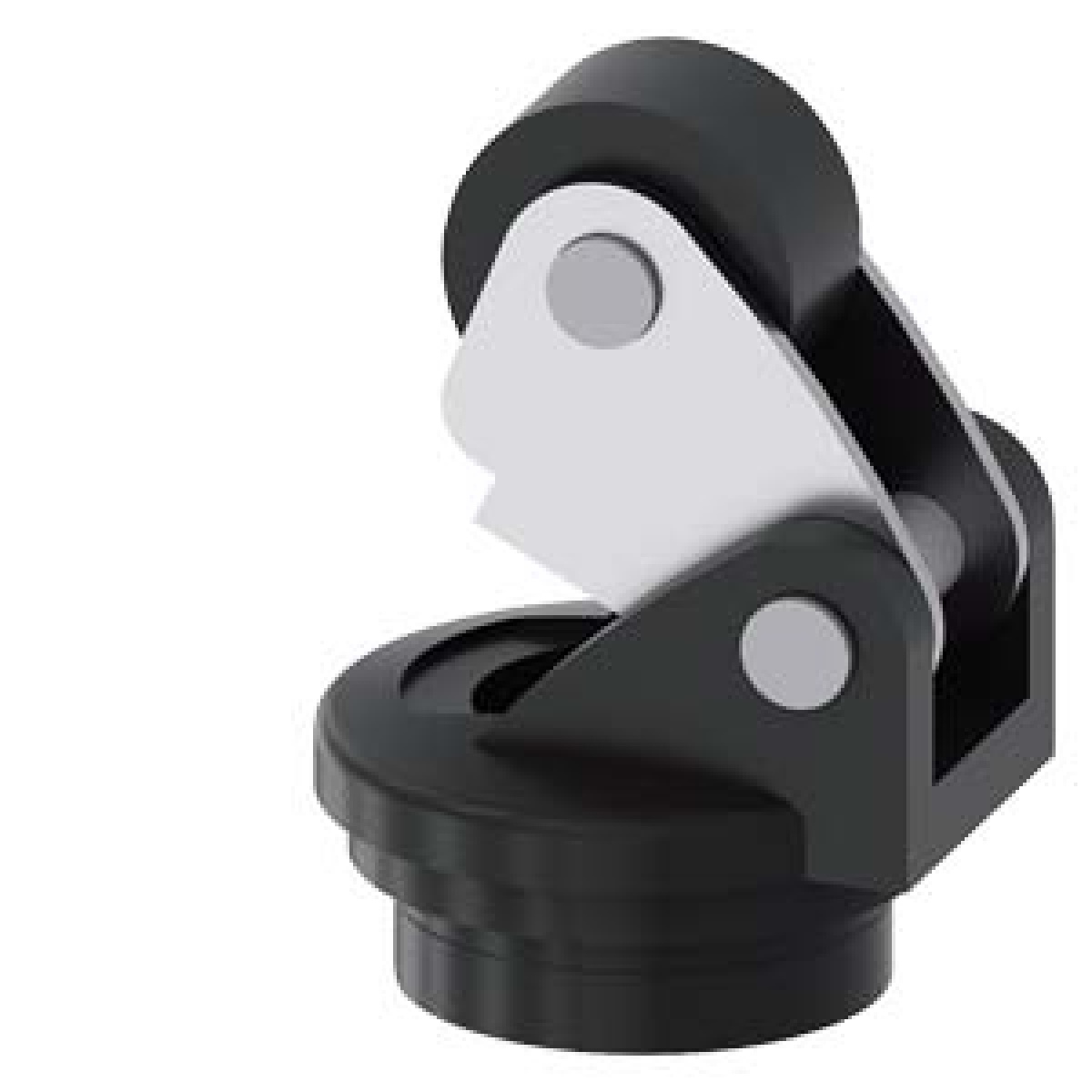

Actuator head for position switch 3SE52 roller lever made of metal 13 mm
Electromechanical and Electronic Sensors
Actuator head for position switch 3SE52 roller lever made of metal 13 mm
Manufacturer Ref:
3SE50000AE101AJ0
Nortécnica Ref:
EAN:
4011209822207
Description
Technical Information
Attributes
Switching function
-
Rated operation current Ie at AC-15, 230 V
-
Rated operation current Ie at DC-13, 230 V
-
Housing material
-
Suitable for safety functions
-
Coating housing
Other
With status indication
-
Type of interface for safety communication
None
Type of electric connection
-
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
-
Degree of protection IP
-
Forced opening
Yes
Number of safety auxiliary contacts
-
Type of control element
-
Type of interface
None
Output electronic
No
Rated operation current Ie at AC-15, 125 V
-
Rated operation current Ie at AC-15, 24 V
-
Rated operation current Ie at DC-13, 125 V
-
Rated operation current Ie at DC-13, 24 V
-
Width sensor
-
Diameter sensor
-
Height of sensor
-
Length of sensor
-
Switching function latching
No
Ambient temperature during operating
-40
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Number of contacts as change-over contact
-
Alignment of the control element
Roller cam straight
Degree of protection NEMA
-
Brands
Siemens AG
Technical Sheet
