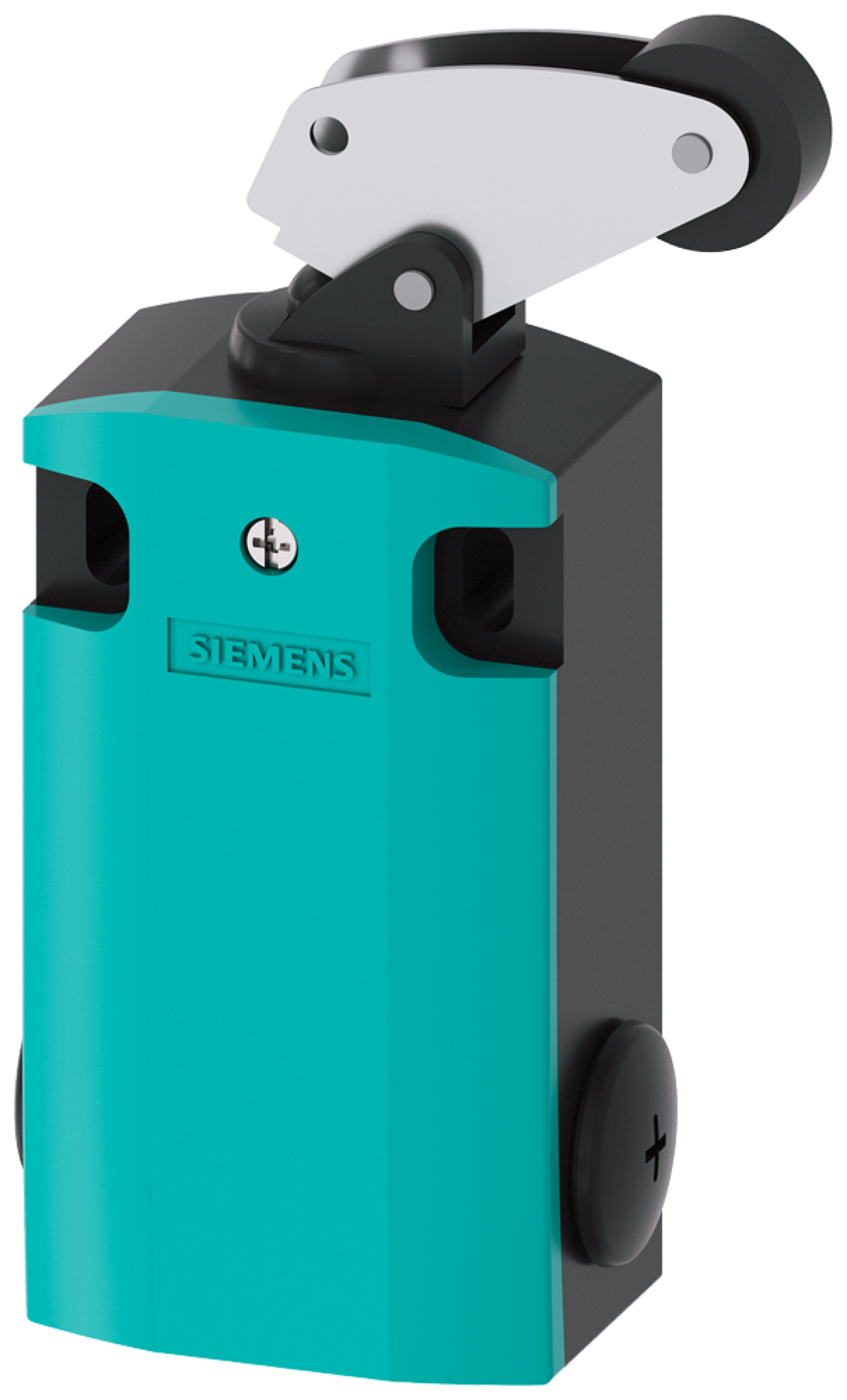

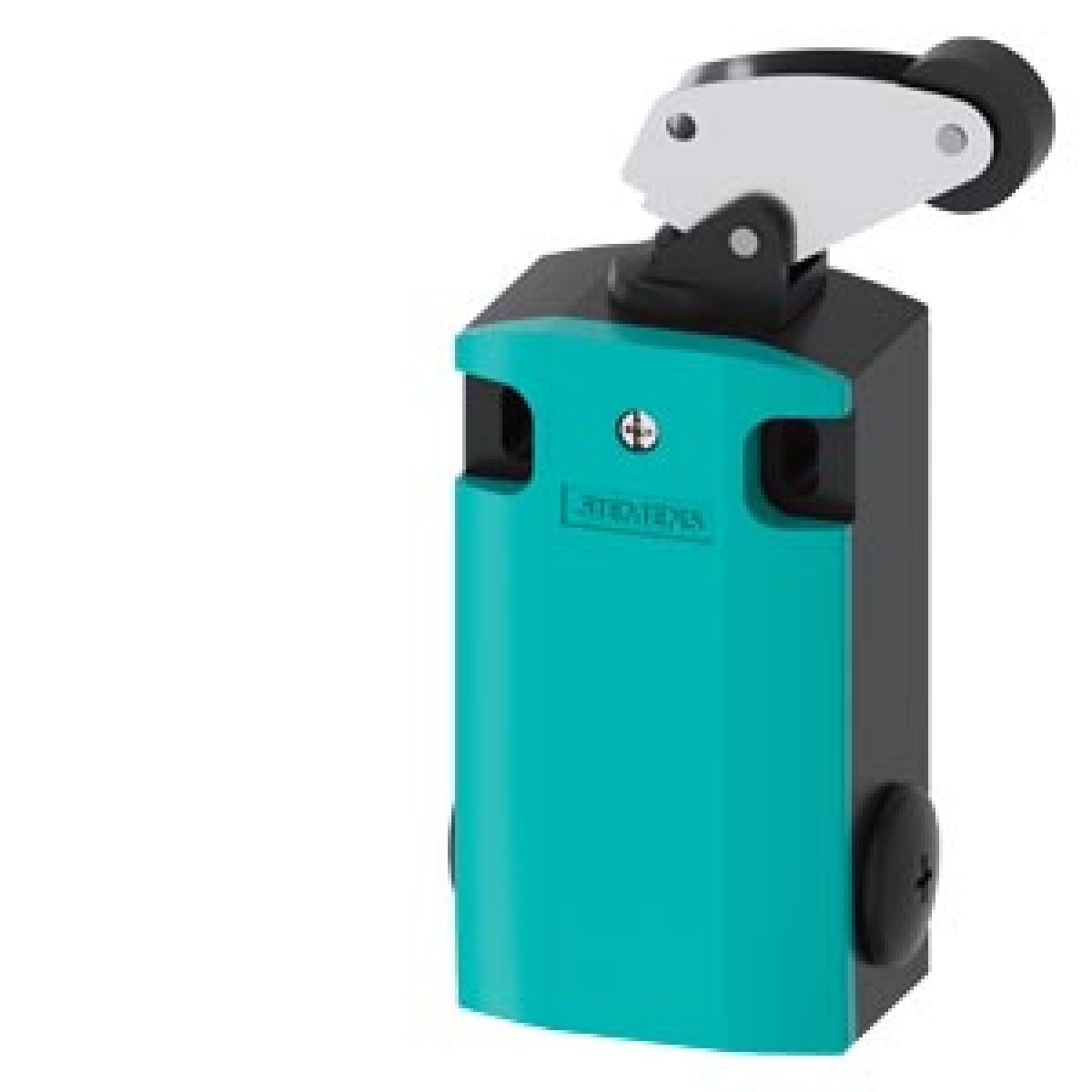

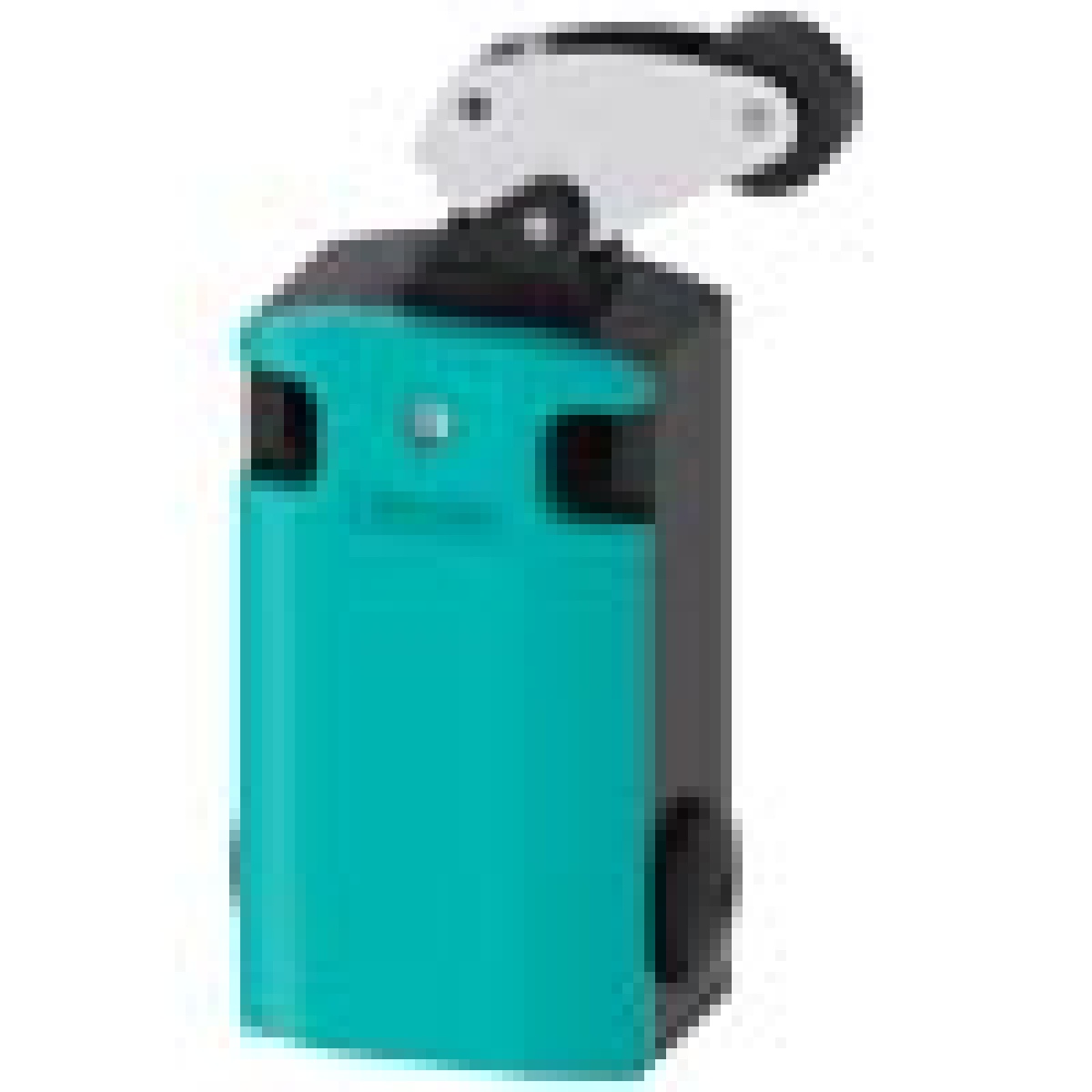

Position switch 3SE5162 metal encl XL 56 mm wide with angular roller lever
Electromechanical and Electronic Sensors
Position switch 3SE5162 metal encl XL 56 mm wide with angular roller lever
Manufacturer Ref:
3SE51620CF01
Nortécnica Ref:
EAN:
4011209862999
Description
Technical Information
Attributes
Switching function
-
Rated operation current Ie at AC-15, 230 V
-
Rated operation current Ie at DC-13, 230 V
-
Housing material
Metal
Suitable for safety functions
Yes
Coating housing
-
With status indication
No
Type of interface for safety communication
None
Type of electric connection
-
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
-
Degree of protection IP
IP66IP67
Forced opening
Yes
Number of safety auxiliary contacts
2
Type of control element
-
Type of interface
None
Output electronic
No
Rated operation current Ie at AC-15, 125 V
6
Rated operation current Ie at AC-15, 24 V
6
Rated operation current Ie at DC-13, 125 V
0.55
Rated operation current Ie at DC-13, 24 V
3
Width sensor
56
Diameter sensor
-
Height of sensor
37.3
Length of sensor
140
Switching function latching
No
Ambient temperature during operating
-25
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Alignment of the control element
Roller cam straight
Degree of protection NEMA
12
Brands
Siemens AG
