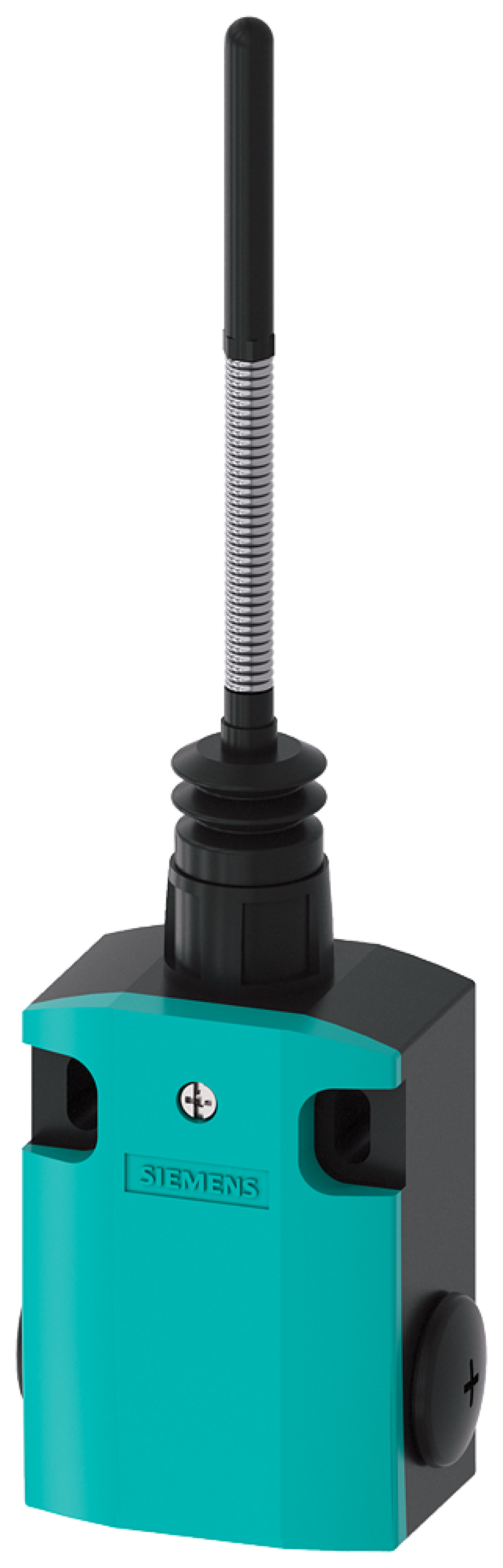

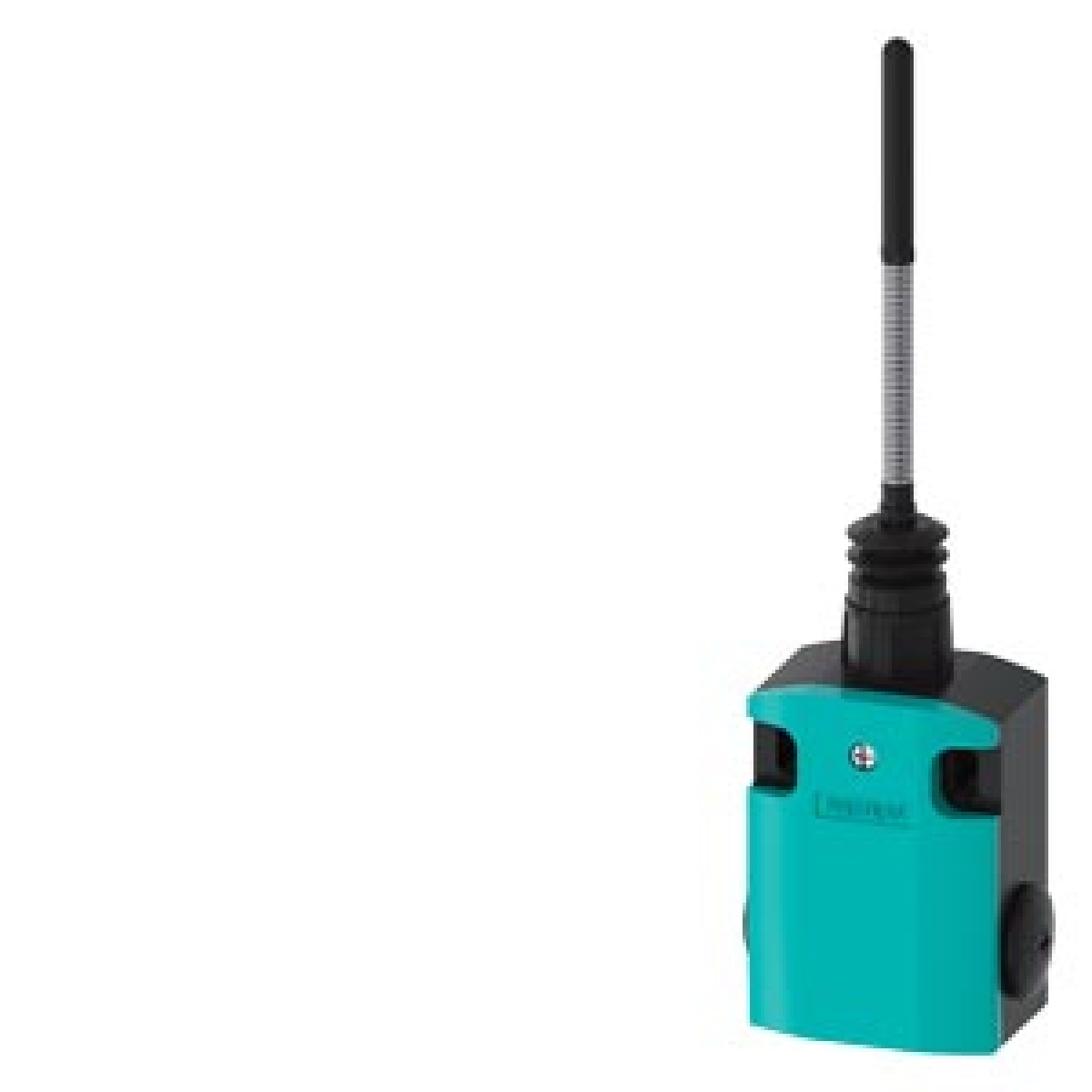

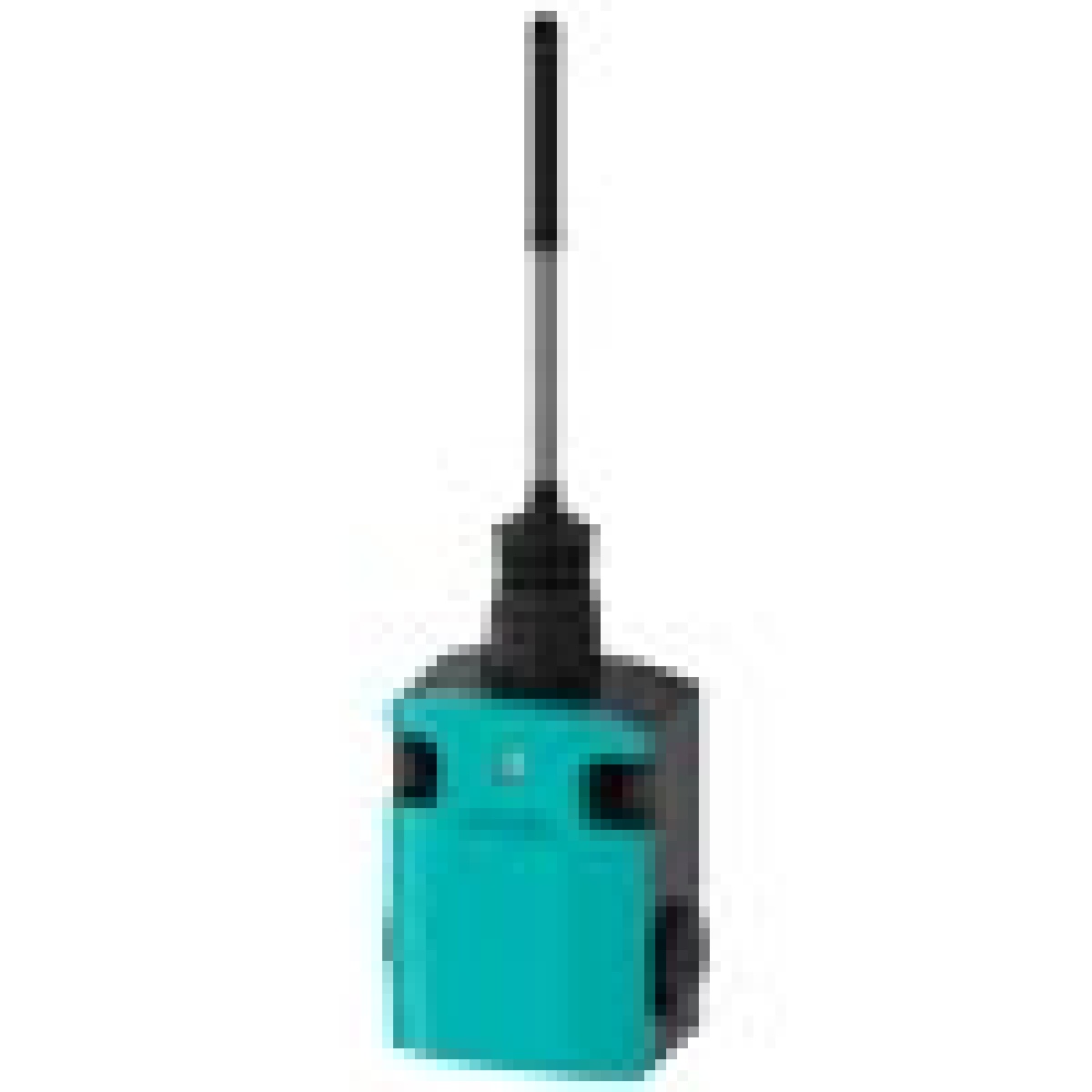

Position switch metal encl 56 mm wide 1 NO1 NC
Electromechanical and Electronic Sensors
Position switch metal encl 56 mm wide 1 NO1 NC
Manufacturer Ref:
3SE51220CR01
Nortécnica Ref:
EAN:
4011209693555
Description
Technical Information
Attributes
Switching function
-
Rated operation current Ie at AC-15, 230 V
-
Rated operation current Ie at DC-13, 230 V
-
Housing material
Metal
Suitable for safety functions
No
Coating housing
-
With status indication
No
Type of interface for safety communication
None
Type of electric connection
-
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
-
Degree of protection IP
-
Forced opening
No
Number of safety auxiliary contacts
0
Type of control element
-
Type of interface
None
Output electronic
No
Rated operation current Ie at AC-15, 125 V
6
Rated operation current Ie at AC-15, 24 V
6
Rated operation current Ie at DC-13, 125 V
0.55
Rated operation current Ie at DC-13, 24 V
3

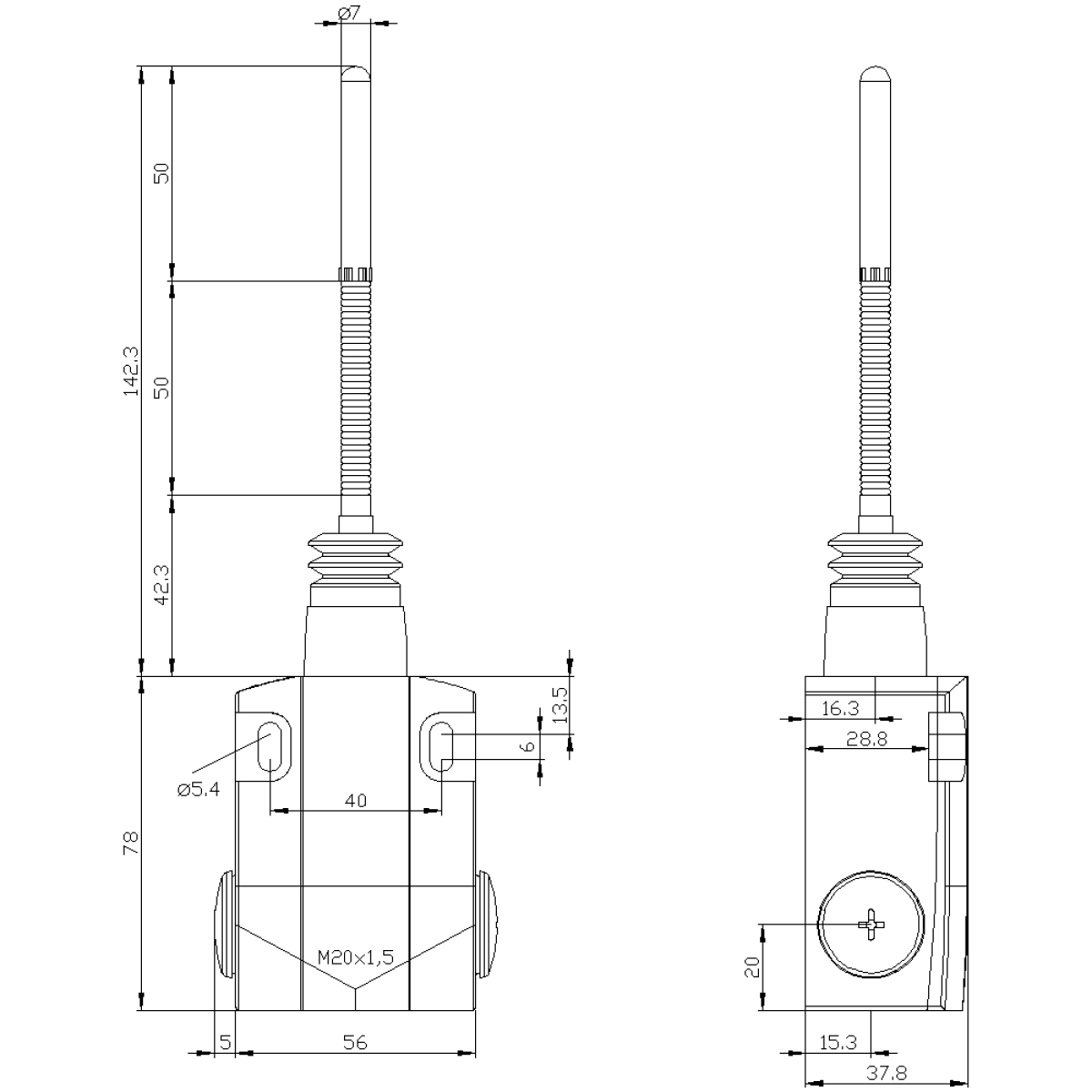

Width sensor
56
Diameter sensor
-
Height of sensor
37.8
Length of sensor
220.299999999
Switching function latching
No
Ambient temperature during operating
-25
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Alignment of the control element
Roller cam straight
Degree of protection NEMA
12
Brands
Siemens AG
