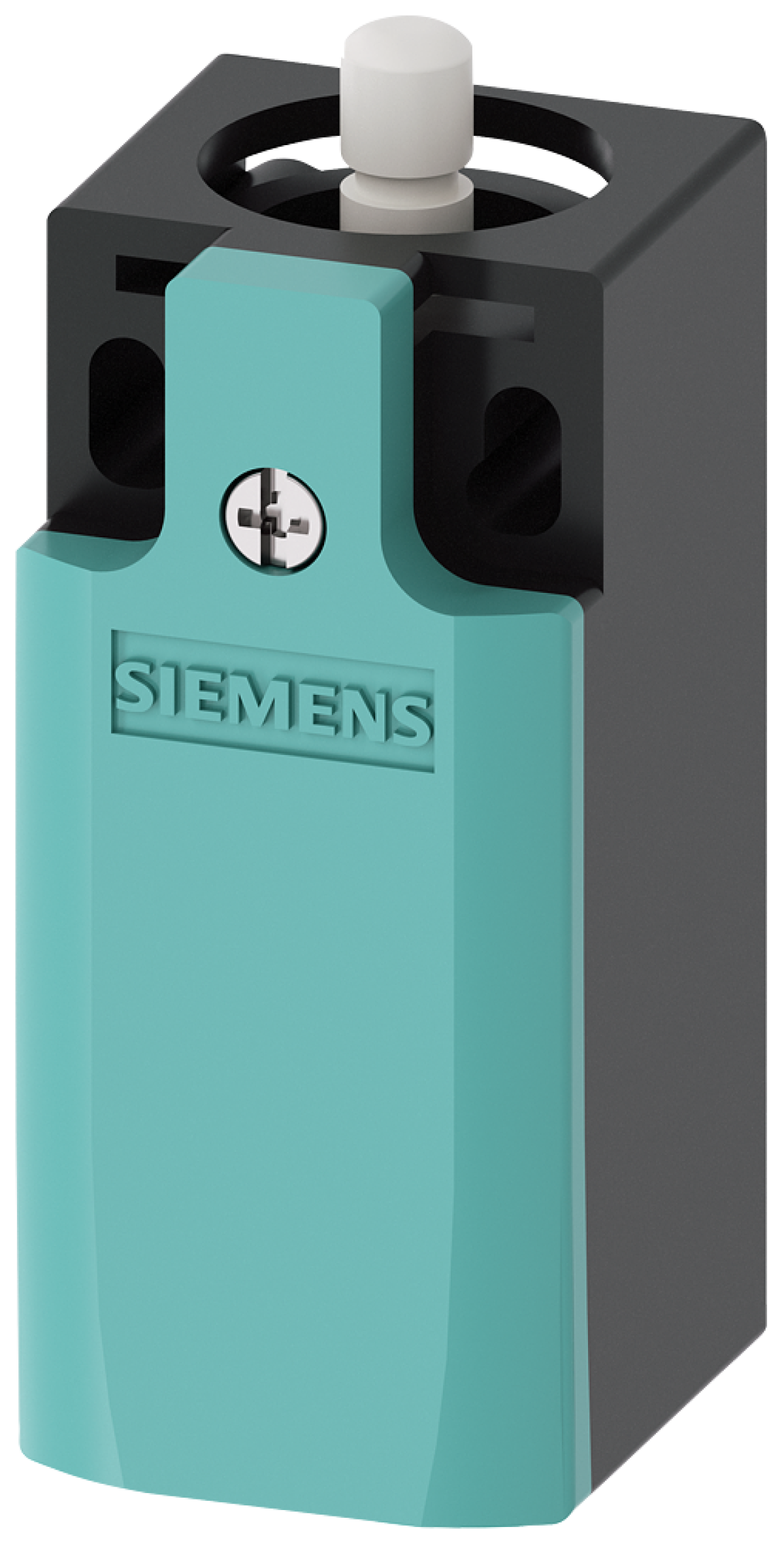

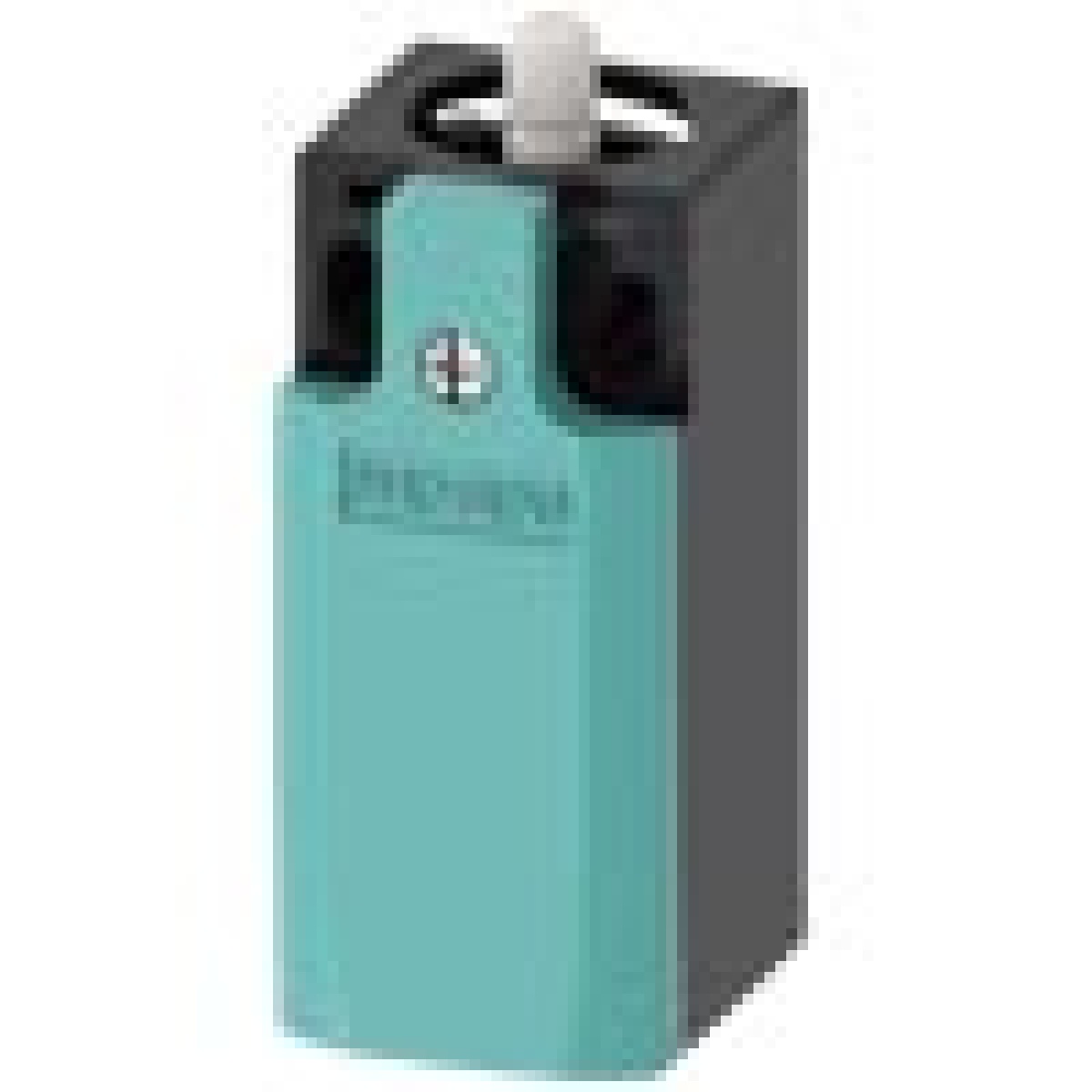

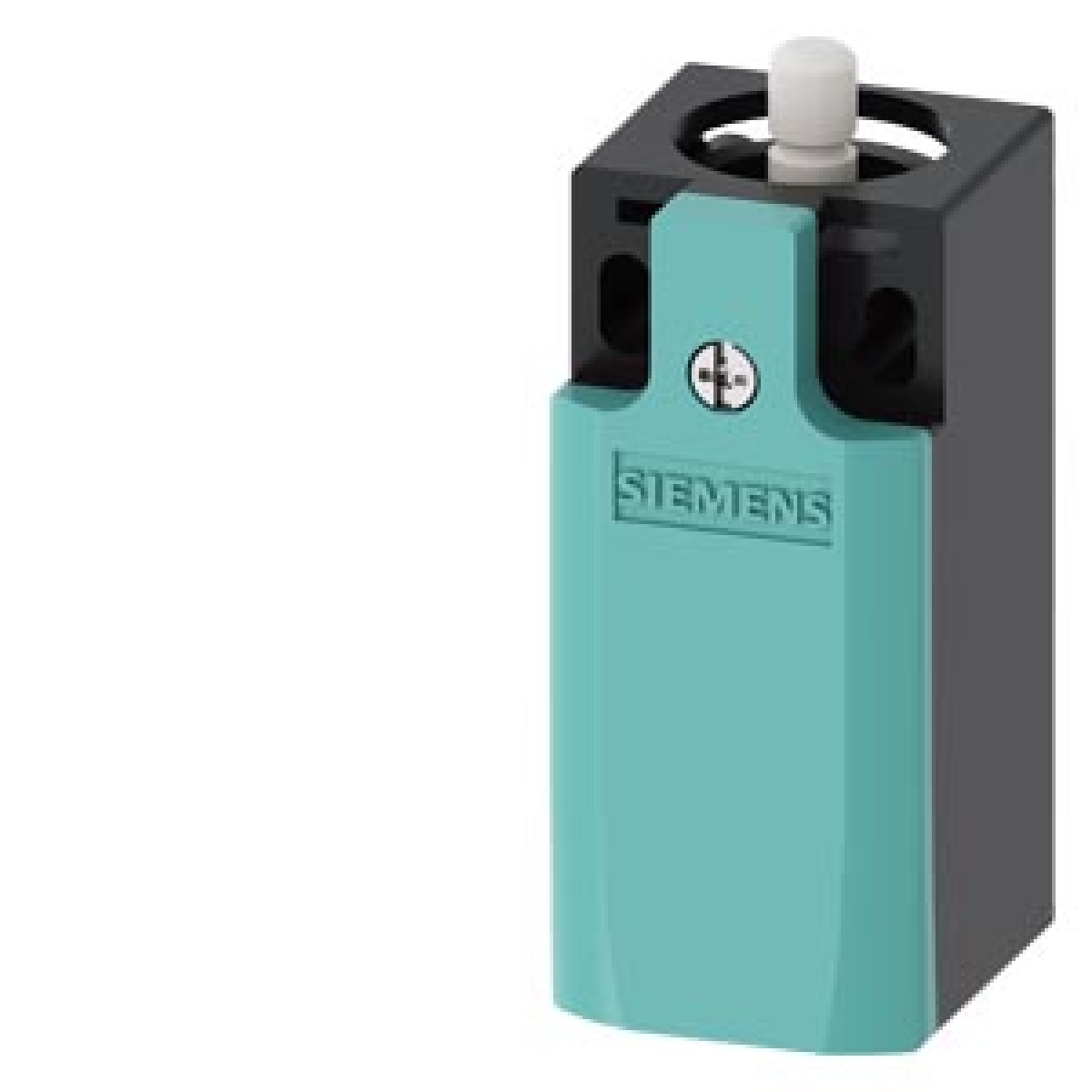

Position switch metal housing EN50047 31 mm device connection functional
Electromechanical and Electronic Sensors
Position switch metal housing EN50047 31 mm device connection functional
Manufacturer Ref:
3SE52120KC051AJ0
Nortécnica Ref:
EAN:
4011209916500
Description
Technical Information
Attributes
Switching function
Slowaction switch
Rated operation current Ie at AC-15, 230 V
-
Rated operation current Ie at DC-13, 230 V
-
Housing material
Metal
Suitable for safety functions
Yes
Coating housing
Lacquered
With status indication
No
Type of interface for safety communication
None
Type of electric connection
-
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Degree of protection IP
IP66IP67
Forced opening
Yes
Number of safety auxiliary contacts
2
Type of control element
-
Type of interface
None
Output electronic
No
Rated operation current Ie at AC-15, 125 V
-
Rated operation current Ie at AC-15, 24 V
6
Rated operation current Ie at DC-13, 125 V
0.55
Rated operation current Ie at DC-13, 24 V
3

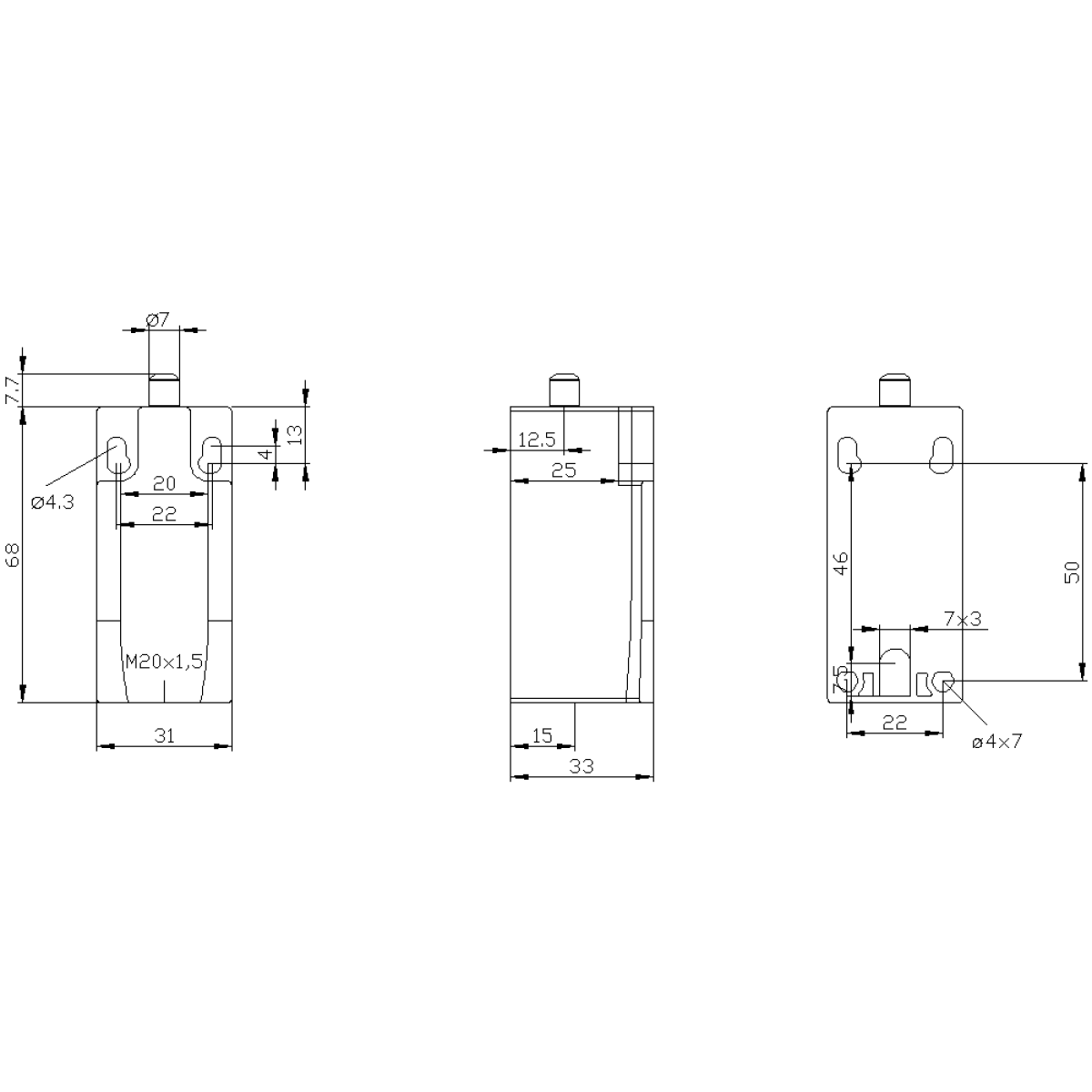

Width sensor
31
Diameter sensor
-
Height of sensor
33
Length of sensor
75.7
Switching function latching
No
Ambient temperature during operating
-40
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Alignment of the control element
Roller cam straight
Degree of protection NEMA
12
Brands
Siemens AG
