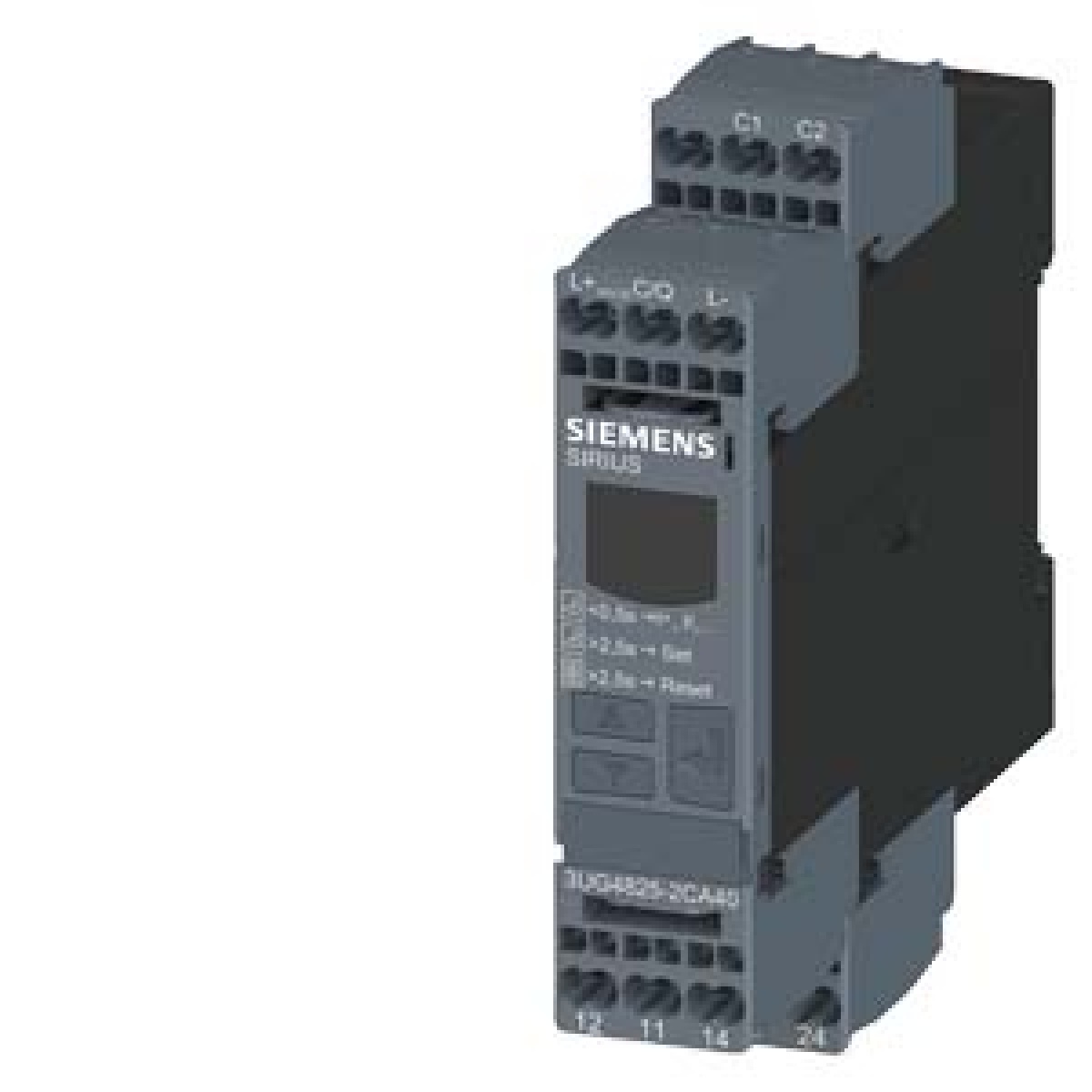

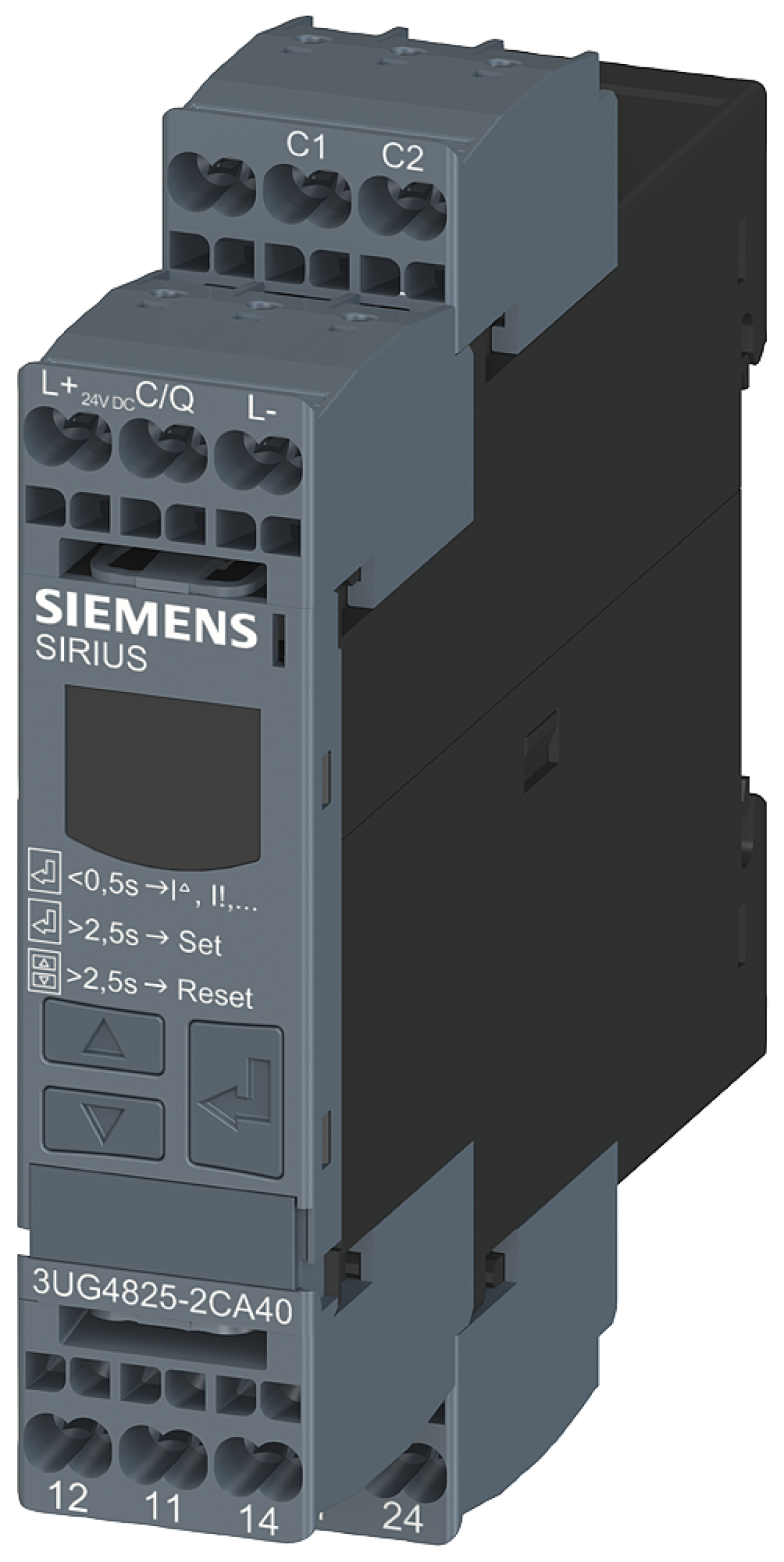

Monitoring relay digital transformer 3UL23 spring
Industrial Relays
Monitoring relay digital transformer 3UL23 spring
Manufacturer Ref:
3UG48252CA40
Nortécnica Ref:
EAN:
4011209912540
Description
Technical Information
Attributes
Width
22.5
Function
-
Height
103
Depth
91
Rated frequency
16
With detachable clamps
Yes
Error registration possible
Yes
Indication of difference current
Yes
Type of electric connection
Spring clamp connection
Rated voltage
24
Rated control supply voltage AC 50 Hz
-
Rated control supply voltage AC 60 Hz
-
Rated control supply voltage DC
24
Max. permitted delay-on energization time
999.9
Min. adjustable delay-on energization time
0
Response value amperage 1
30
Response value amperage 2
30
Voltage type for actuating
EV000461
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Brands
Siemens AG
Technical Sheet
