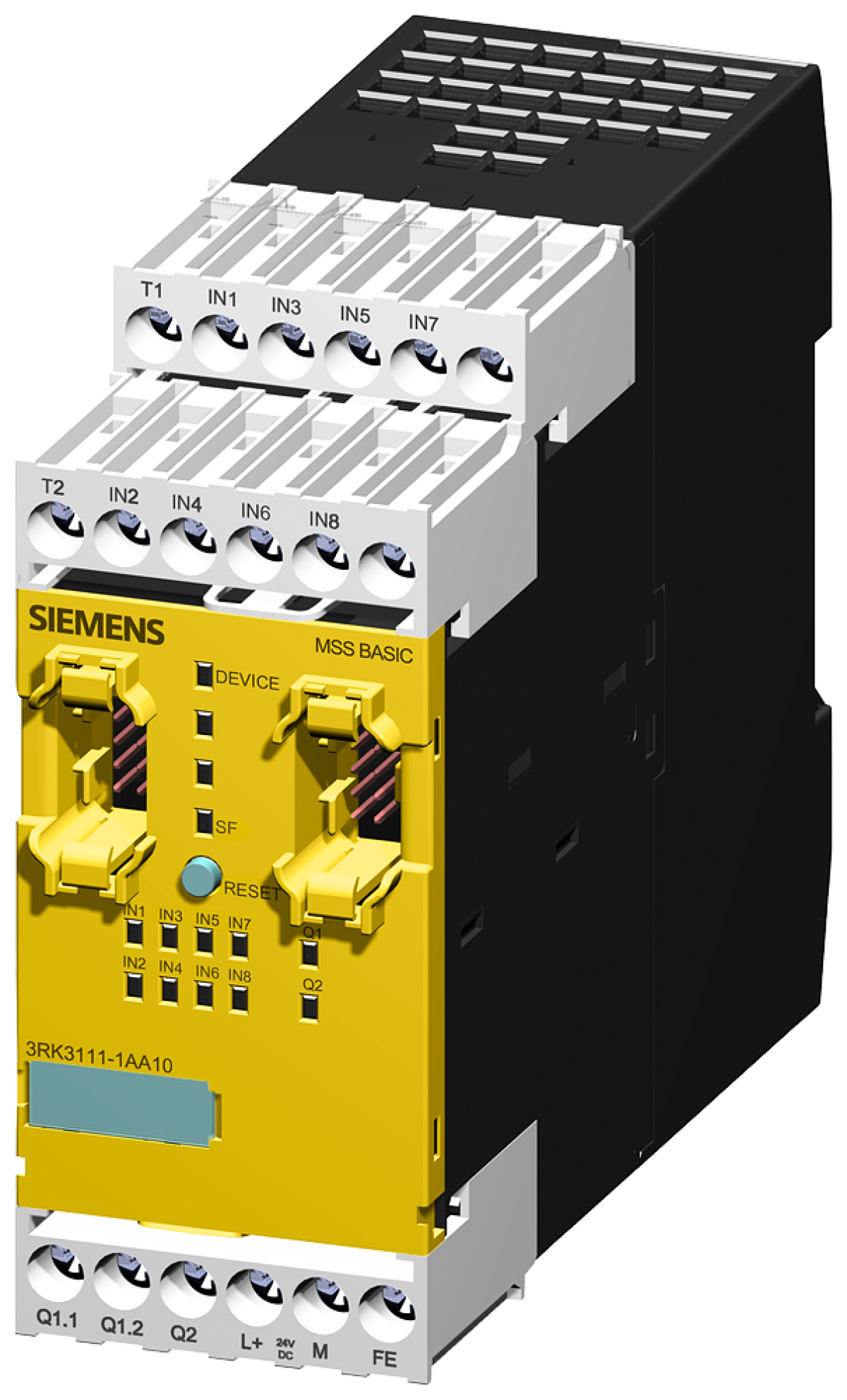

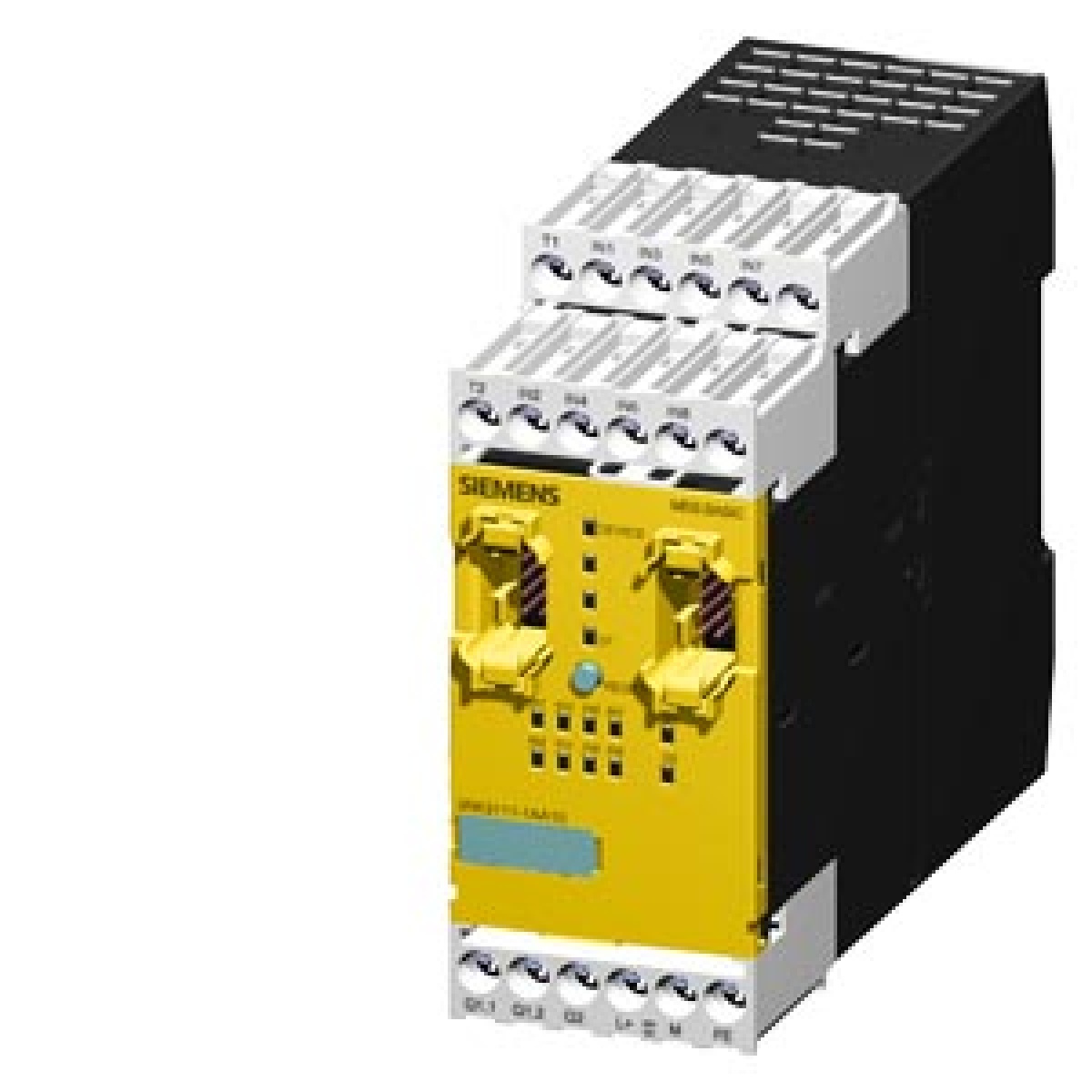

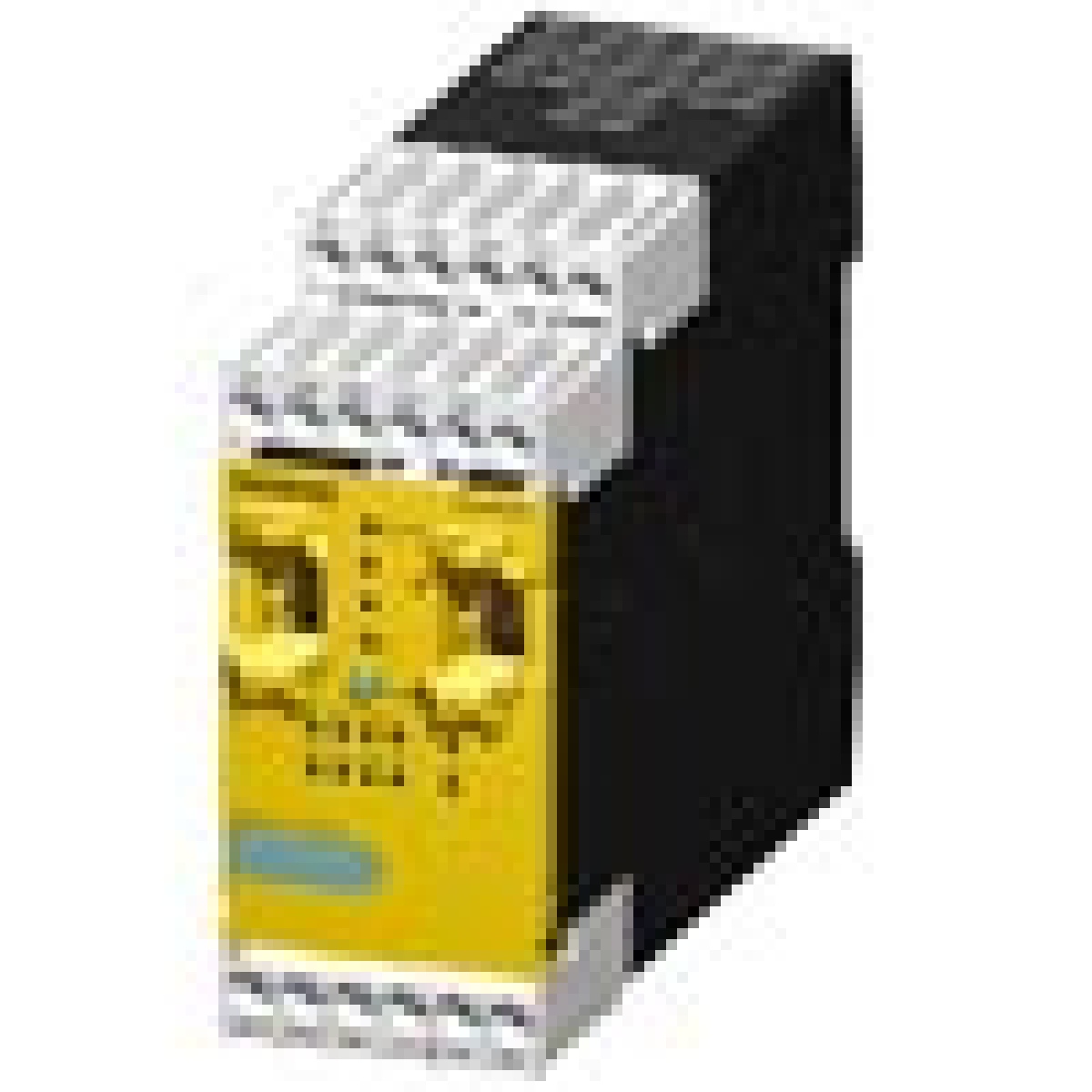

SIRIUS central unit 3RK3 basic for Modular Safety System 3RK3 48 FDI
Industrial Relays
SIRIUS central unit 3RK3 basic for Modular Safety System 3RK3 48 FDI
Manufacturer Ref:
3RK31111AA10
Nortécnica Ref:
EAN:
4011209684195
Description
Technical Information
Attributes

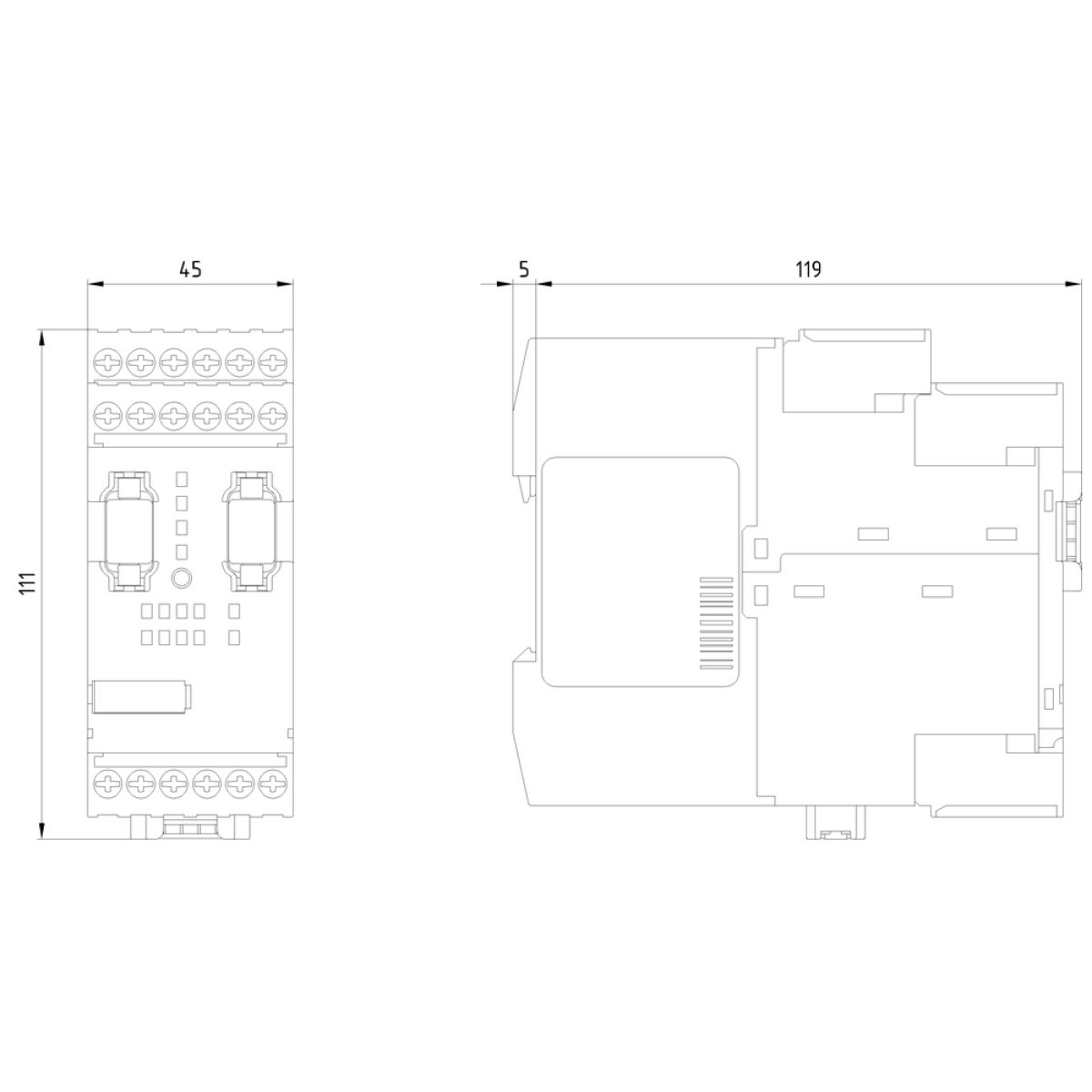

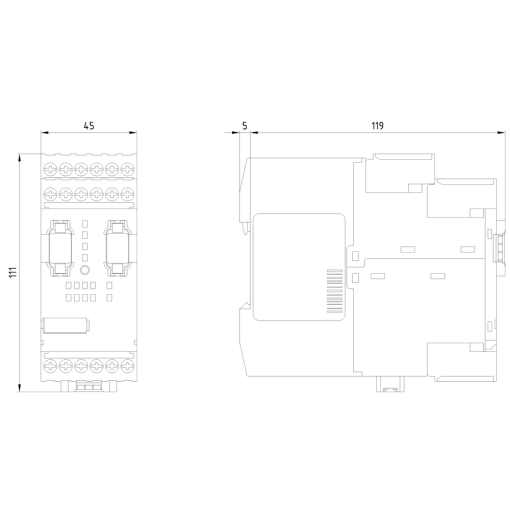

Largura
45
Model
Basic device
Altura
111
Profundidade
124
Release-delay
-
With approval according to UL
Yes
With detachable clamps
Yes
With start input
-
With feedback circuit
-
Number of outputs, safety related, undelayed, with contact
0
Number of outputs, safety related, delayed, with contact
-
Number of outputs, safety related, undelayed, semiconductors
1
Number of outputs, safety related, delayed, semiconductors
-
Number of outputs, signalling function, undelayed, with contact
-
Number of outputs, signalling function, delayed, with contact
-
Number of outputs, signalling function, undelayed, semiconductors
-
Number of outputs, signalling function, delayed, semiconductors
-
Type of electric connection
Screw connection
Suitable for rail mounting
No
Rated control supply voltage AC 50 Hz
-
Rated control supply voltage AC 60 Hz
-
Rated control supply voltage DC
24
With muting function
No
Type of safety according to IEC 61496-1
-
With approval for BG BIA
-
Suitable for monitoring of magnetic switches
-
Suitable for monitoring of proximity switches
Yes
Suitable for monitoring of emergency-stop circuits
Yes
Suitable for monitoring of optoelectronic protection equipment
Yes
Suitable for monitoring of position switches
Yes
Suitable for monitoring of tactile sensors
-
Suitable for monitoring of valves
Yes
Performance level according to EN ISO 13849-1
Level e
Stop category according to IEC 60204
0 1
Voltage type for actuating
EV000461
Evaluation inputs
-
SIL according to IEC 61508
3
With approval for TÜV
Yes
Brands
Siemens AG
Technical Sheet
