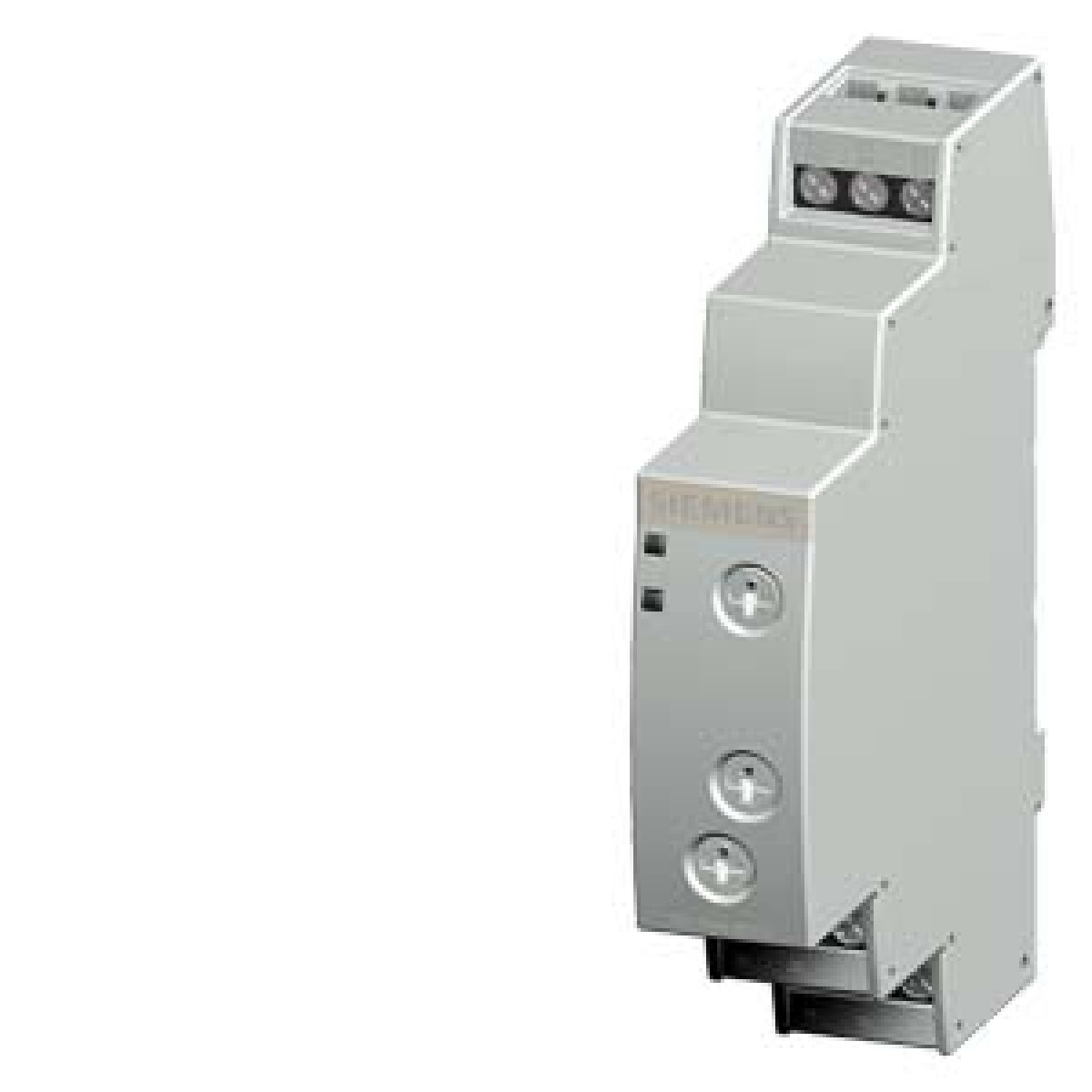

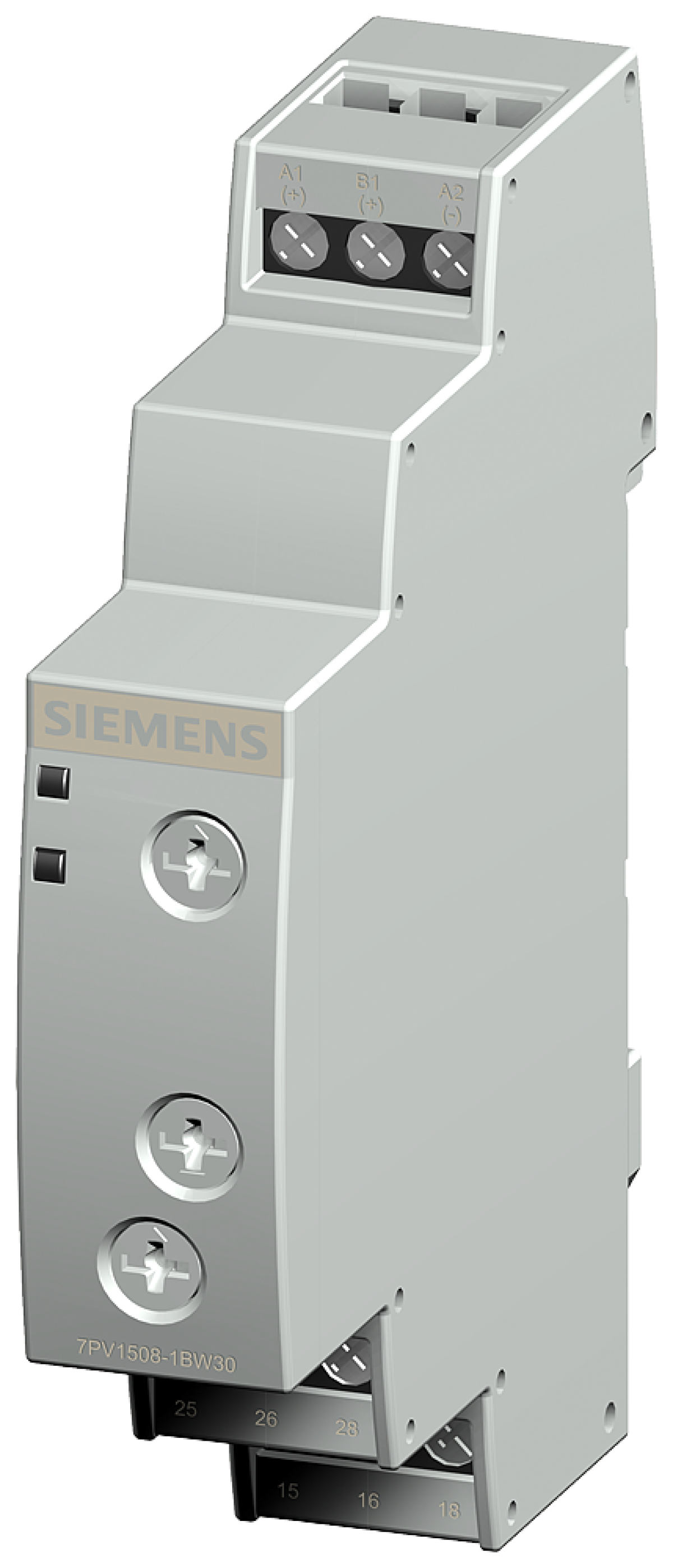

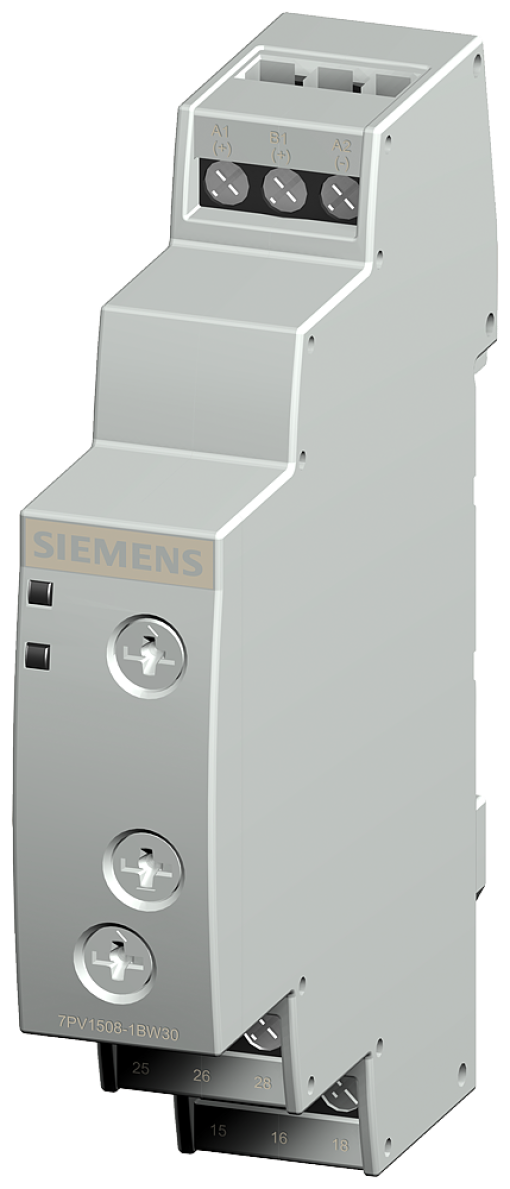

Timing relay electronic multifunction 2 changeover contacts 7 functions 7
Industrial Relays
Timing relay electronic multifunction 2 changeover contacts 7 functions 7
Manufacturer Ref:
7PV15081BW30
Nortécnica Ref:
EAN:
4011209892347
Description
Technical Information
Attributes
Nominal current
-

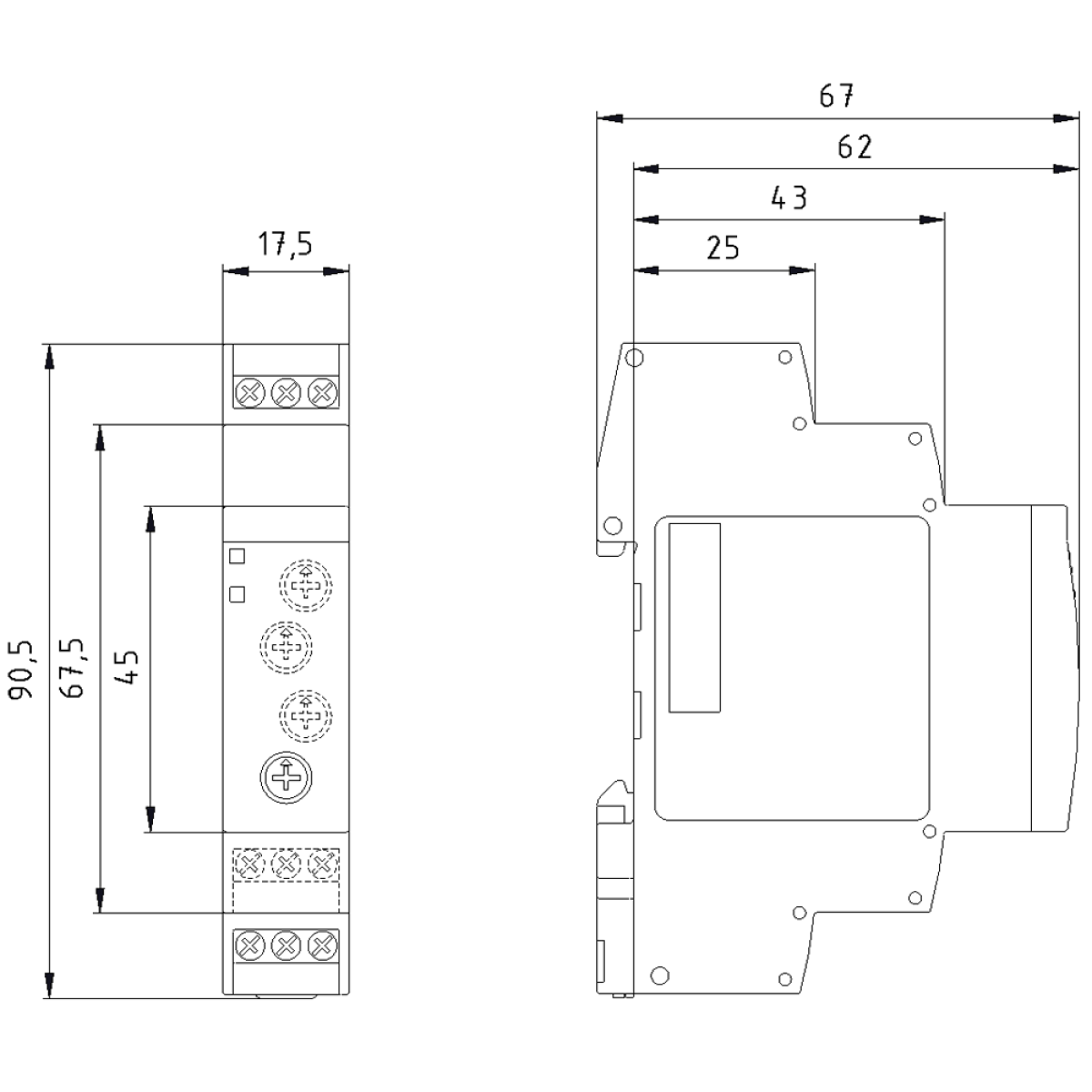

Width
17.5
Height
90
Depth
66.699999999
EF001127
-
EF003360
No
Remote operation possible
No
Suitable as remote control
No
Function flashing, starting with pause, fixed time
Yes
Function flashing, starting with pulse, fixed time
No
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
With semiconductor output
No
Function delay-on energization
Yes
Function floating contact on energization
Yes
Function star-delta
No
Time range
0.05
Function delay on de-energization
No
Function floating contact on de-energization
No
Function pulse shaping
Yes
Type of electric connection
Screw connection
Rated control supply voltage AC 50 Hz
12
Rated control supply voltage AC 60 Hz
12
Rated control supply voltage DC
12
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, change-over contact
0
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
2
Pluggable on auxiliary contact block
No
Outputs, reversible delayedundelayed
No
Suitable for DIN rail top hat rail mounting
-
Voltage type for actuating
ACDC
Brands
Siemens AG
