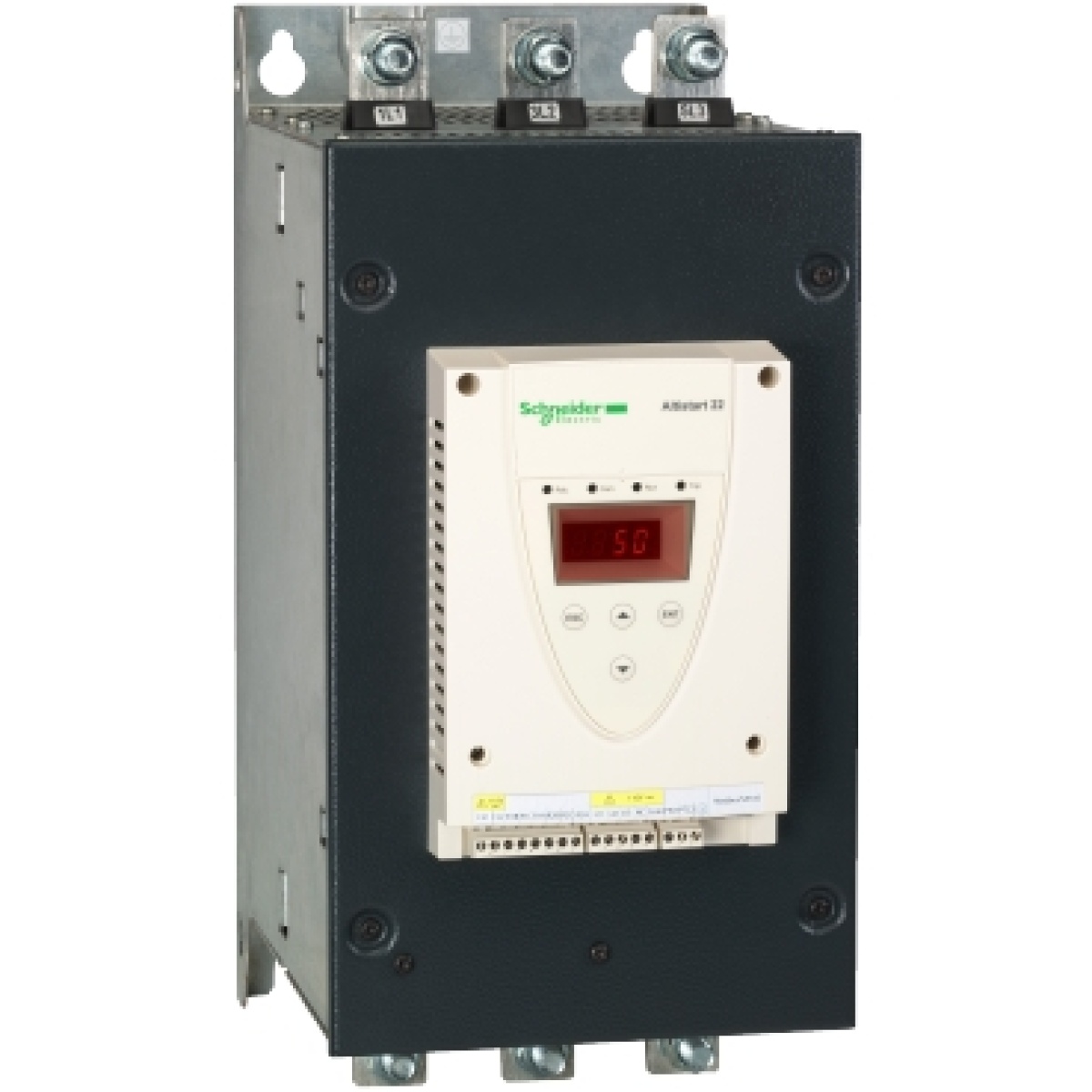

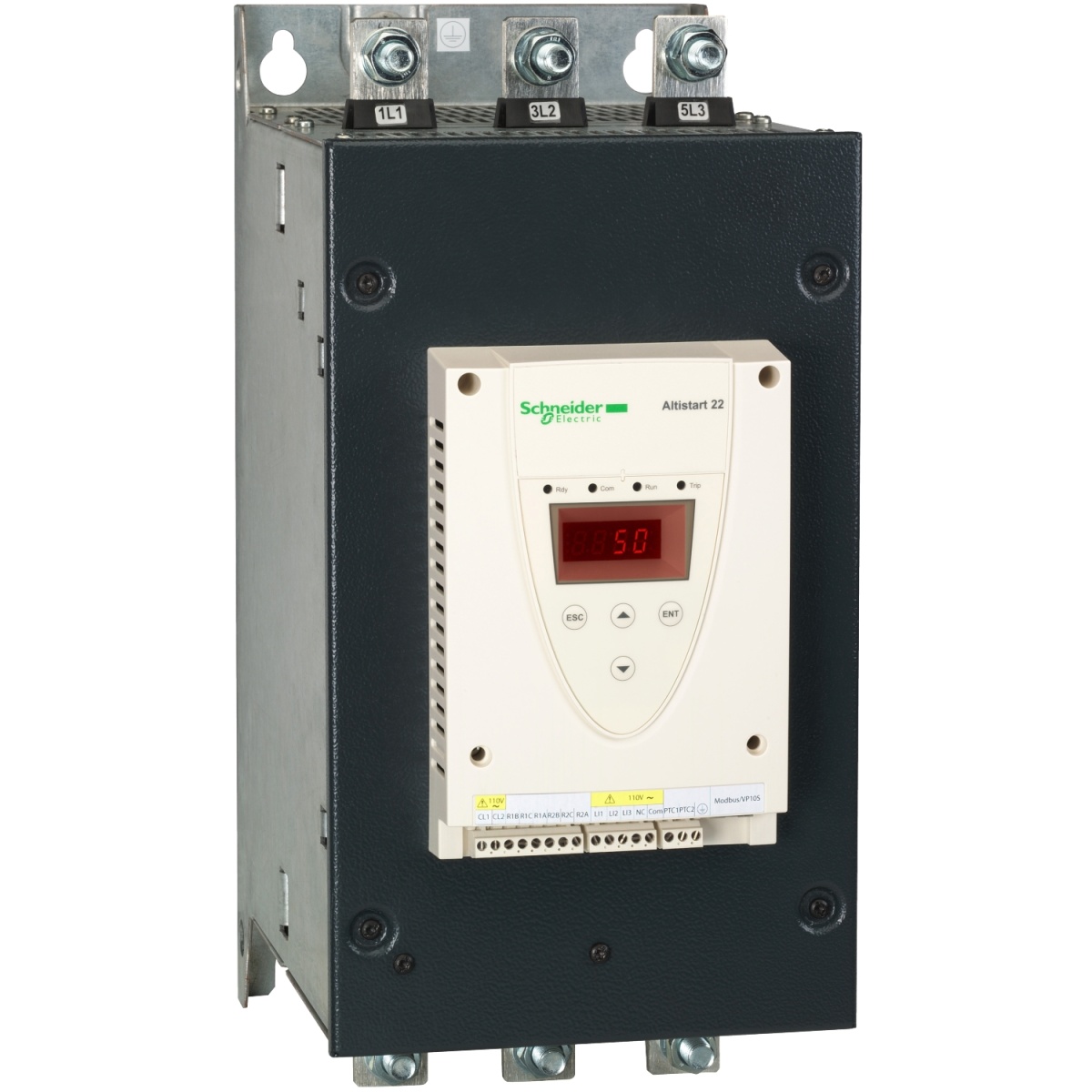

Arrancador suave -ATS22-controlo 220V-potência 230V90kW400...440V160kW
Speed Variation and Motor Starting
Arrancador suave -ATS22-controlo 220V-potência 230V90kW400...440V160kW
Manufacturer Ref:
ATS22C32Q
Nortécnica Ref:
52ATS22C32Q
EAN:
3606480211270
Description
Technical Information
Attributes
Function
Single direction
With display
No
Rated operating voltage Ue
230
440
Rated control supply voltage AC 50 Hz
230
230
Rated control supply voltage AC 60 Hz
220
230
Rated control supply voltage DC
24
24
Degree of protection IP
IP20
Release class
Other
Rated operation current Ie at 40 C Tu
320
Rated power three-phase motor, inline, at 230 V
90
Rated power three-phase motor, inline, at 400 V
160
Rated power three-phase motor, inside delta, at 230 V
132
Rated power three-phase motor, inside delta, at 400 V
250
Rated surrounding temperature without derating
40
Integrated motor overload protection
Yes
Voltage type for actuating
AC
Internal bypass
Yes
Torque control
Yes
Degree of protection NEMA
-
Brands
Schneider
Technical Sheet
