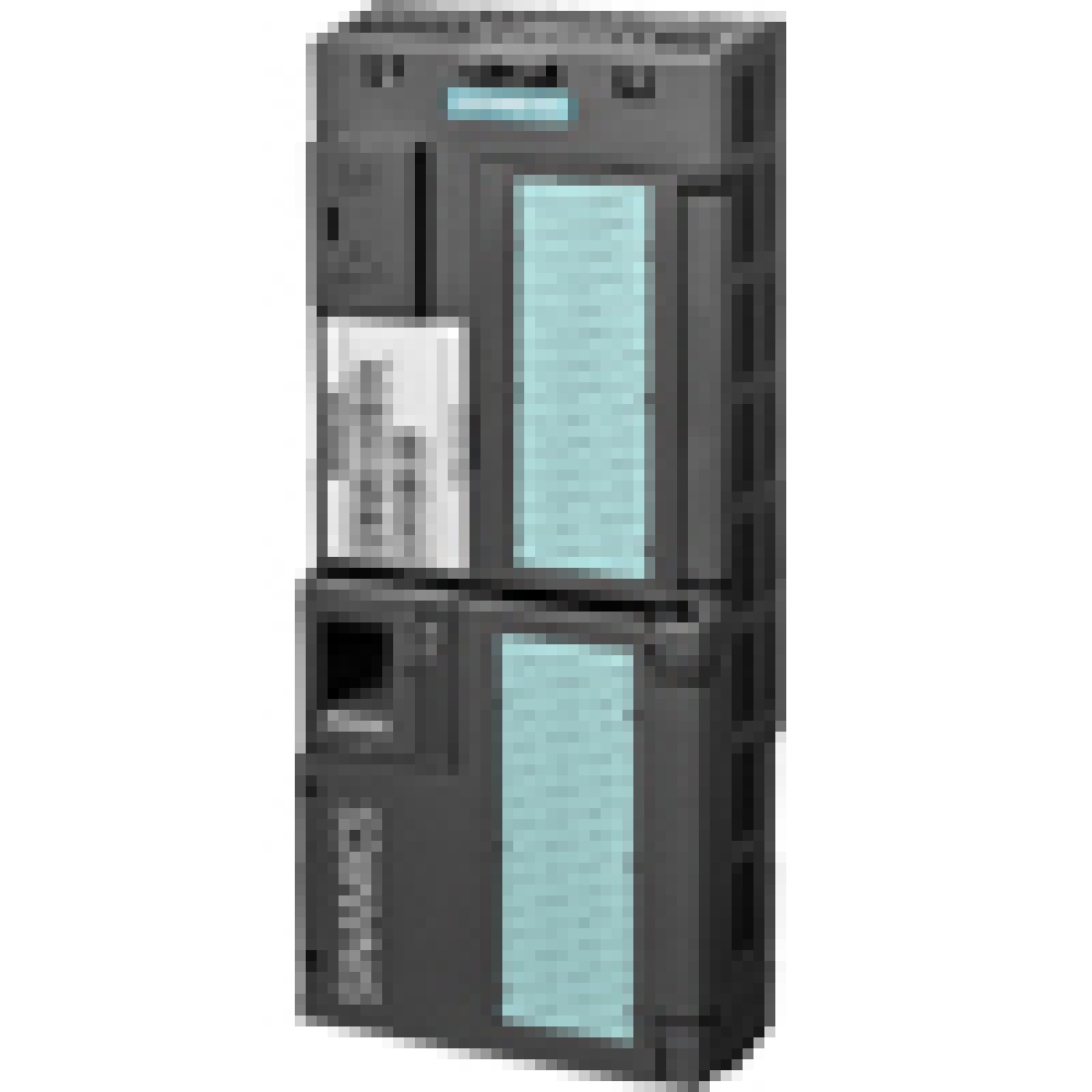

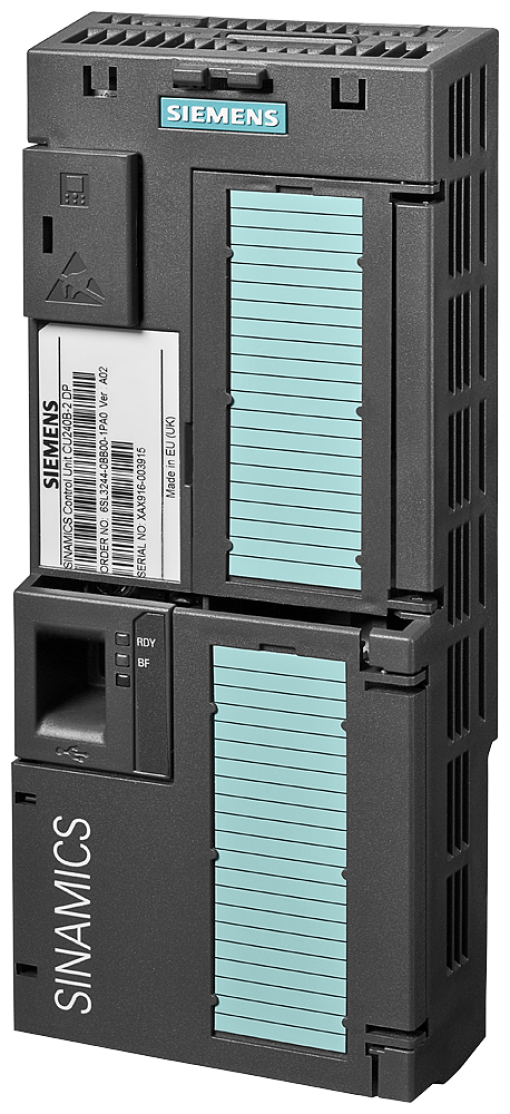

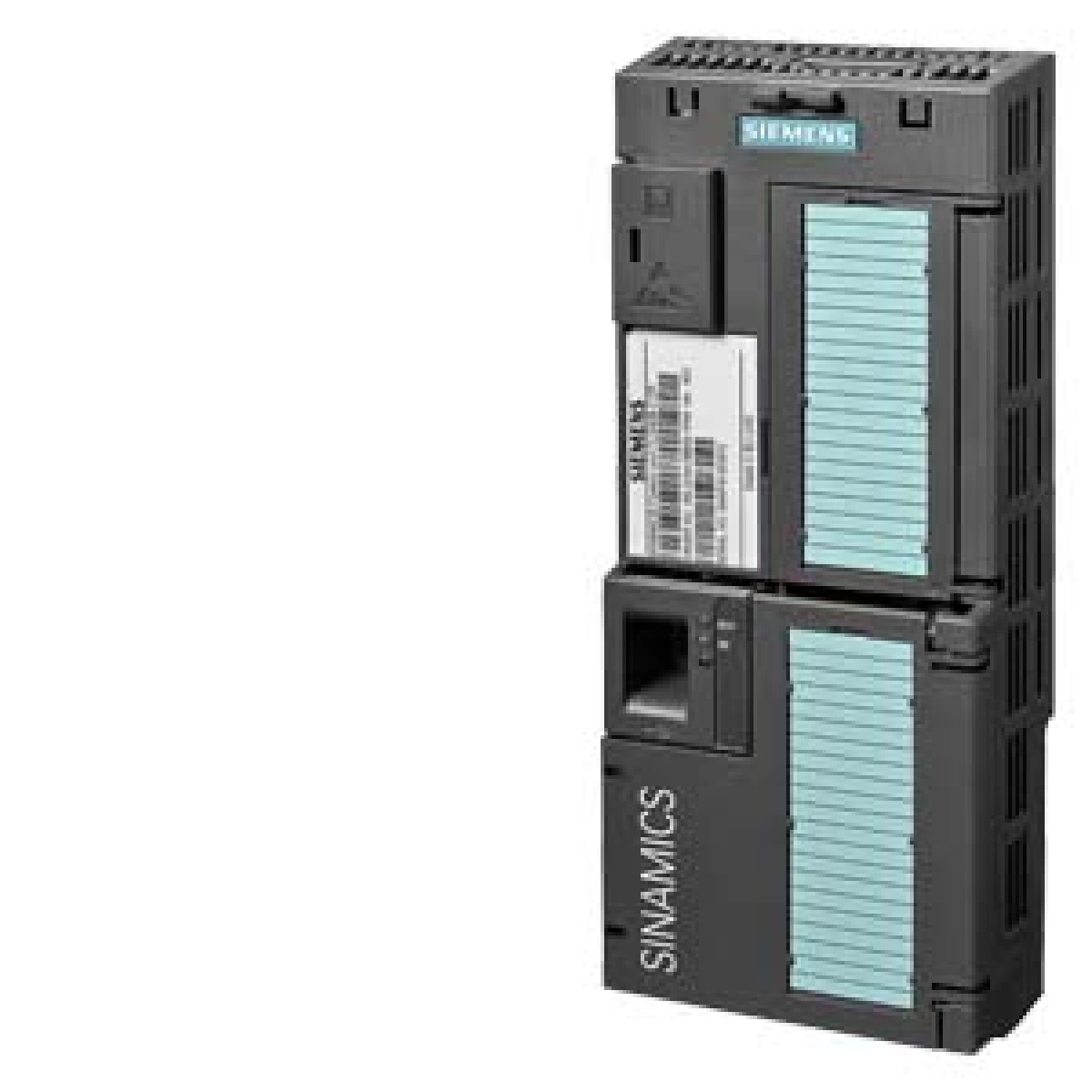

SINAMICS CU240B2 DP
Speed Variation and Motor Starting
SINAMICS CU240B2 DP
Manufacturer Ref:
6SL32440BB001PA1
Nortécnica Ref:
EAN:
4042948661772
Description
Technical Information
Attributes
Width
73
Height
199
Depth
46
With control element
-
Number of digital inputs
4
Number of digital outputs
1
Number of analogue inputs
1
Number of analogue outputs
1
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
2
Number of HW-interfaces USB
1
Number of HW-interfaces parallel
0
Number of HW-interfaces other
-
With optical interface
No
Supporting protocol for TCPIP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Degree of protection IP
-
With PC connection
Yes
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Mains voltage
-
Mains frequency
-
4-quadrant operation possible
-
Number of interfaces PROFINET
0
Type of converter
-
Number of phases output
-
Number of phases input
-
Integrated breaking resistance
-
Application in industrial area permitted
-
Application in domestic- and commercial area permitted
-
Max. output frequency
-
Max. output at linear load at rated output voltage
-
Max. output at quadratic load at rated output voltage
-
Relative symmetric net voltage tolerance
-
Relative symmetric net frequency tolerance
-
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
Yes
Supporting protocol for SafetyBUS p
No
Max. output voltage
-
Nominal output current I2N
-
Supporting protocol for BACnet
No
Degree of protection NEMA
1
Brands
Siemens AG
Technical Sheet
