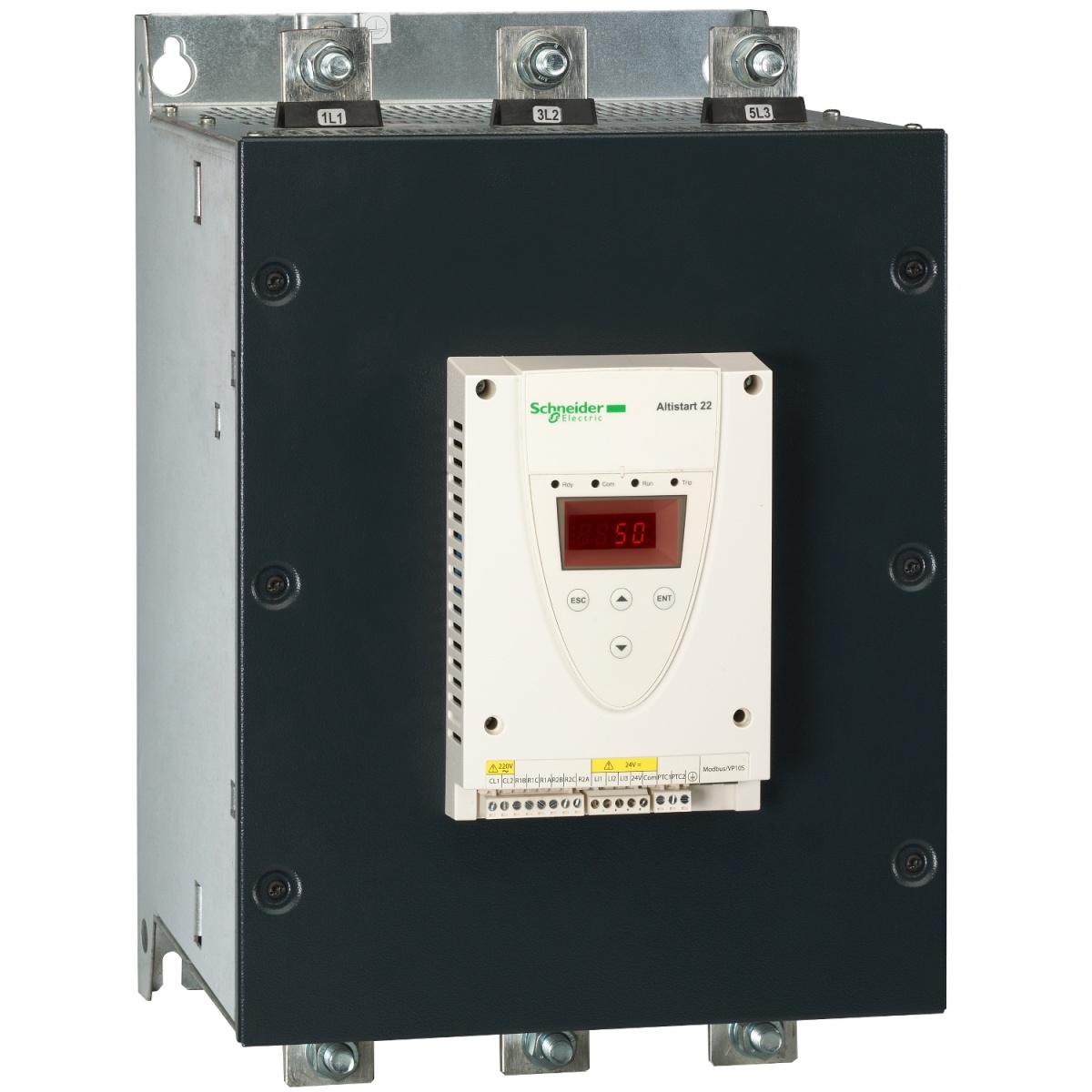

soft starter-ATS22-control110V-power 230V200hp460V400hp575V500hp
Speed Variation and Motor Starting
soft starter-ATS22-control110V-power 230V200hp460V400hp575V500hp
Manufacturer Ref:
ATS22C59S6U
Nortécnica Ref:
EAN:
3606480211249
Description
Technical Information
Attributes
Function
Single direction
With display
No
Rated operating voltage Ue
230
600
Rated control supply voltage AC 50 Hz
110
110
Rated control supply voltage AC 60 Hz
110
110
Rated control supply voltage DC
-
-
Degree of protection IP
IP20
Release class
Other
Rated operation current Ie at 40 C Tu
590
Rated power three-phase motor, inline, at 230 V
160
Rated power three-phase motor, inline, at 400 V
315
Rated power three-phase motor, inside delta, at 230 V
-
Rated power three-phase motor, inside delta, at 400 V
-
Rated surrounding temperature without derating
40
Integrated motor overload protection
Yes
Voltage type for actuating
AC/DC
Internal bypass
Yes
Torque control
Yes
Degree of protection NEMA
-
Brands
Schneider
Technical Sheet
