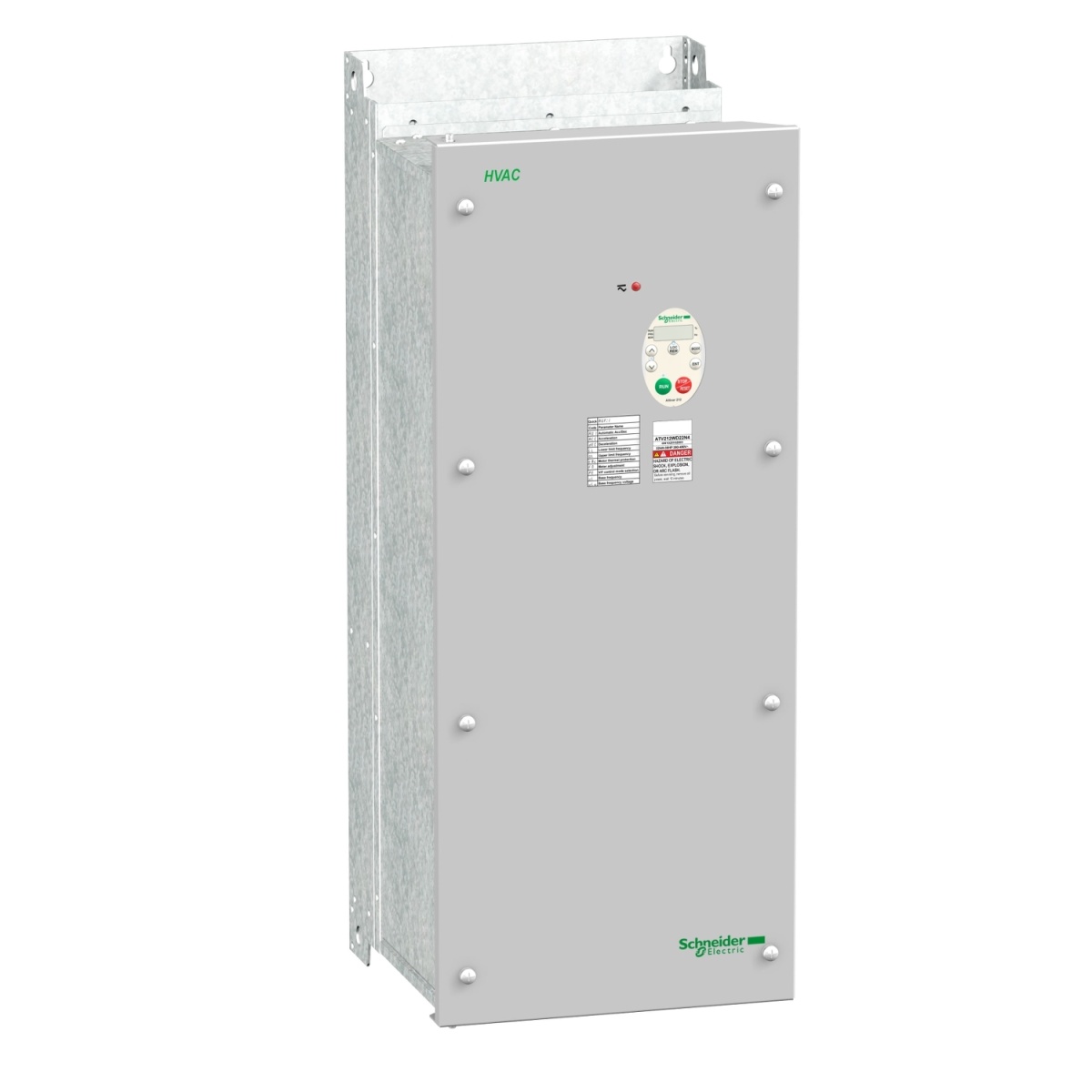

Variador de velocidade ATV212 - 22kW - 30hp - 480V - 3ph - EMC classe C1 - IP55
Speed Variation and Motor Starting
Variador de velocidade ATV212 - 22kW - 30hp - 480V - 3ph - EMC classe C1 - IP55
Manufacturer Ref:
ATV212WD22N4C
Nortécnica Ref:
EAN:
3606480322754
Description
Technical Information
Attributes
Width
284
Height
720
Depth
315
Power consumption
-
With control element
Yes
Number of digital inputs
3
Number of digital outputs
0
Number of analogue inputs
2
Number of analogue outputs
1
Supporting protocol for LON
Yes
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
With optical interface
No
Supporting protocol for TCPIP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
Yes
Degree of protection IP
IP55
With PC connection
Yes
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Mains voltage
380
480
Mains frequency
50/60 Hz
4-quadrant operation possible
No
Number of interfaces PROFINET
0
Type of converter
U converter
Number of phases output
3
Number of phases input
3
Integrated breaking resistance
No
Application in industrial area permitted
Yes
Application in domestic- and commercial area permitted
Yes
Max. output frequency
200
Max. output at linear load at rated output voltage
22
Max. output at quadratic load at rated output voltage
22
Relative symmetric net voltage tolerance
10
Relative symmetric net frequency tolerance
5
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Max. output voltage
480
Nominal output current I2N
43.5
Supporting protocol for BACnet
No
Degree of protection NEMA
-
Brands
Schneider
