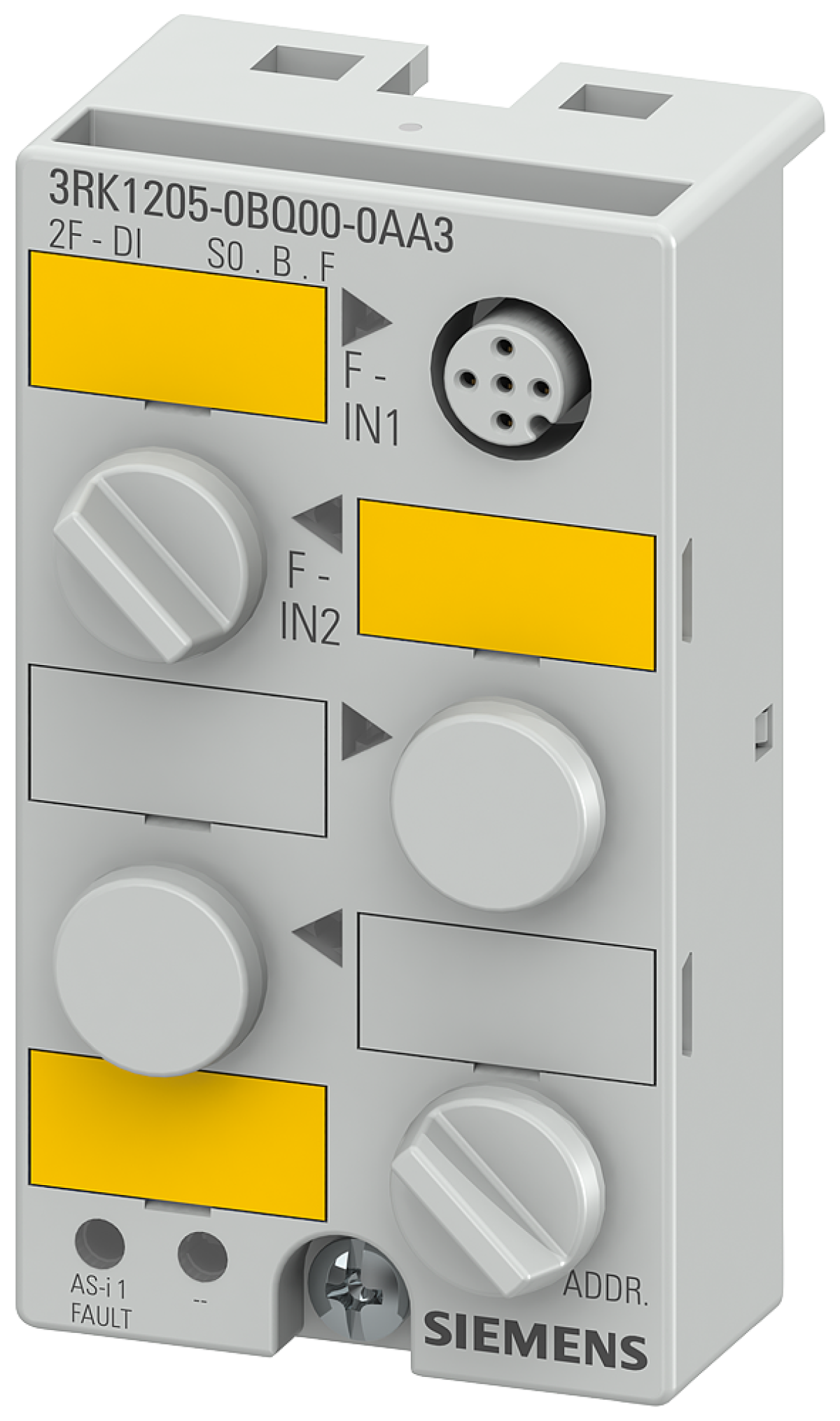

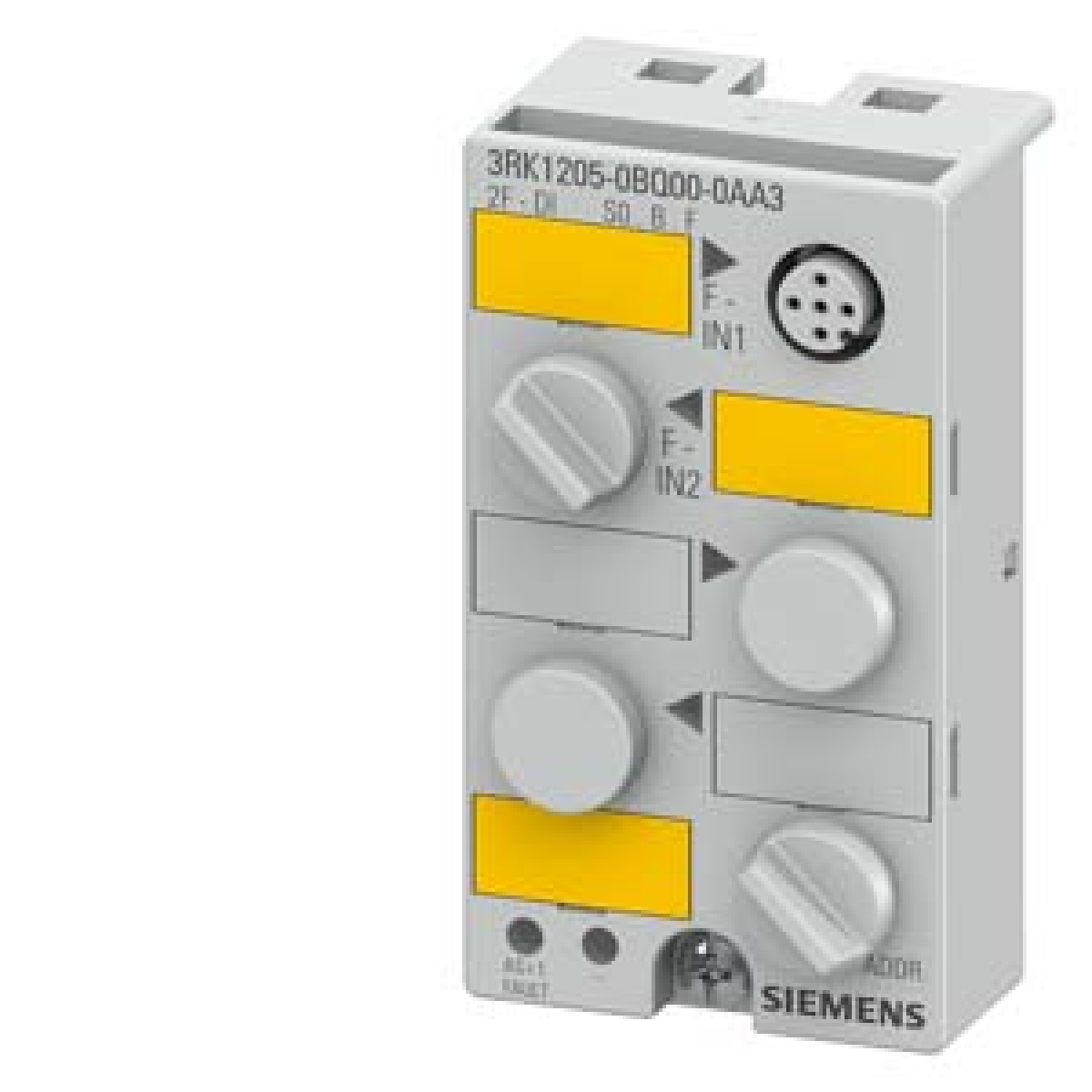

ASIsafe module K45F two safe inputs 2 FDI mounting pl 3RK19012EA00
Programmable Logic Controllers and Dialogue Terminals
ASIsafe module K45F two safe inputs 2 FDI mounting pl 3RK19012EA00
Manufacturer Ref:
3RK12050BQ000AA3
Nortécnica Ref:
EAN:
4011209450370
Description
Technical Information
Attributes

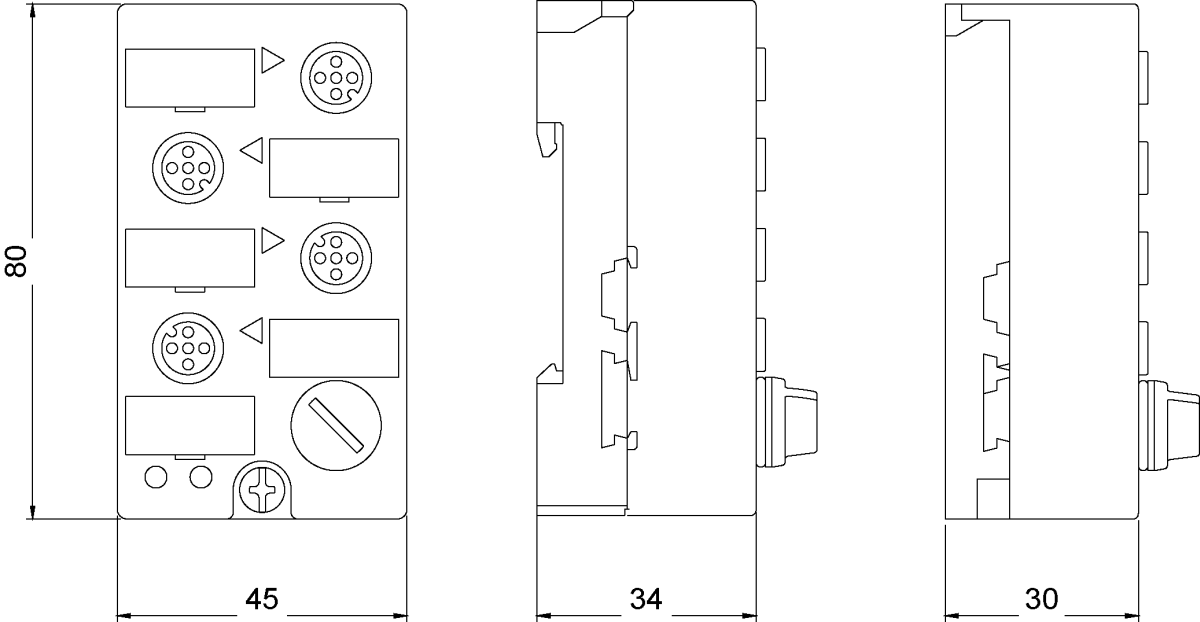

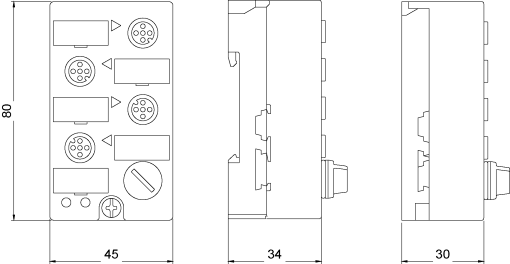

Width
45
Height
80
Depth
34
Input current at signal 1
5
Suitable for safety functions
-
Number of digital inputs
-
Number of digital outputs
-
Time delay at signal change
-
Voltage type supply voltage
DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
With optical interface
No
Type of voltage input voltage
DC
Supporting protocol for TCPIP
No
Supporting protocol for ASI
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Output current
-
Short-circuit protection, outputs available
-
Type of digital output
-
Type of electric connection
Screw connection
Suitable for rail mounting
No
Explosion safety category for gas
None
Explosion safety category for dust
-
Fieldbus connection over separate bus coupler possible
-
System accessory
Yes
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Degree of protection IP
IP67
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of interfaces PROFINET
0
Number of HW-interfaces wireless
0
Front built-in possible
No
Rack-assembly possible
No
Wall mountingdirect mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Performance level according to EN ISO 13849-1
Level e
Supporting protocol for AS-Interface Safety at Work
Yes
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
Supply voltage AC 60 Hz
-
Supply voltage DC
-
Permitted voltage at output
-
Permitted voltage at input
-
Type of output voltage
DC
Digital inputs configurable
-
Digital outputs configurable
No
Radio standard GPRS
No
Radio standard GSM
No
Mobile communications standard 3G UMTS
No
SIL according to IEC 61508
3
Brands
Siemens AG
Technical Sheet
