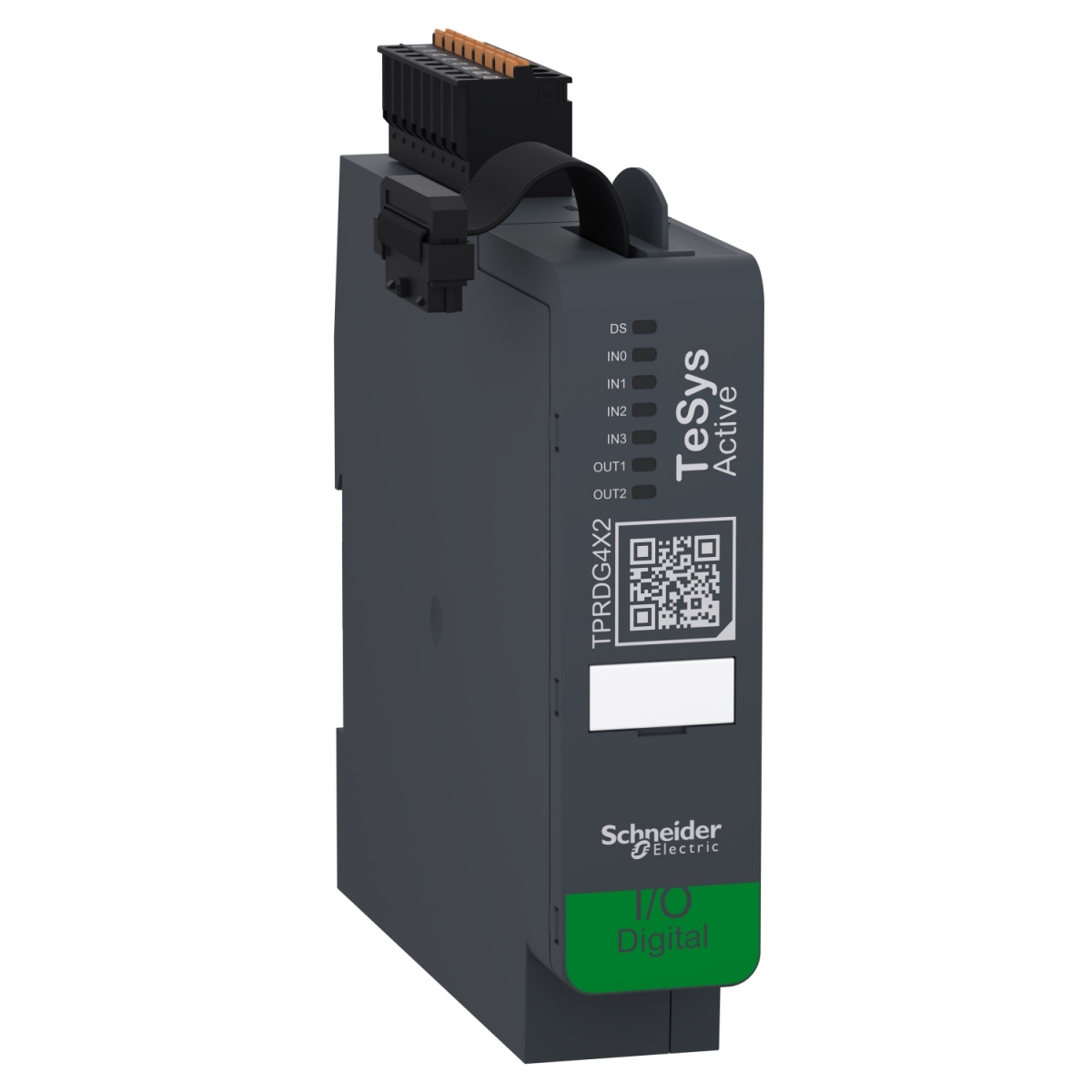

Digital IO module, TeSys island, 4 inputs, 2 outputs
Programmable Logic Controllers and Dialogue Terminals
Digital IO module, TeSys island, 4 inputs, 2 outputs
Manufacturer Ref:
TPRDG4X2
Nortécnica Ref:
EAN:
3606489832896
Description
Technical Information
Attributes
Width
25
Height
118
Depth
114
Input current at signal 1
7
Suitable for safety functions
No
Number of digital inputs
4
Number of digital outputs
2
Time delay at signal change
5
5
Voltage type supply voltage
DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
2
With optical interface
No
Type of voltage input voltage
DC
Supporting protocol for TCPIP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
Yes
Output current
0.5
Short-circuit protection, outputs available
No
Type of digital output
Other
Type of electric connection
Plug-in connection
Suitable for rail mounting
Yes
Explosion safety category for gas
None
Explosion safety category for dust
None
Fieldbus connection over separate bus coupler possible
Yes
System accessory
Yes
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
EF005474
IP20
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of interfaces PROFINET
0
Number of HW-interfaces wireless
0
Front built-in possible
No
Rack-assembly possible
No
Wall mountingdirect mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Performance level according to EN ISO 13849-1
None
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
20.4
28.8
Permitted voltage at output
0
28.8
Permitted voltage at input
0
28.8
Type of output voltage
DC
Digital inputs configurable
Yes
Digital outputs configurable
Yes
Radio standard GPRS
No
Radio standard GSM
No
Mobile communications standard 3G UMTS
No
SIL according to IEC 61508
None
Brands
Schneider
