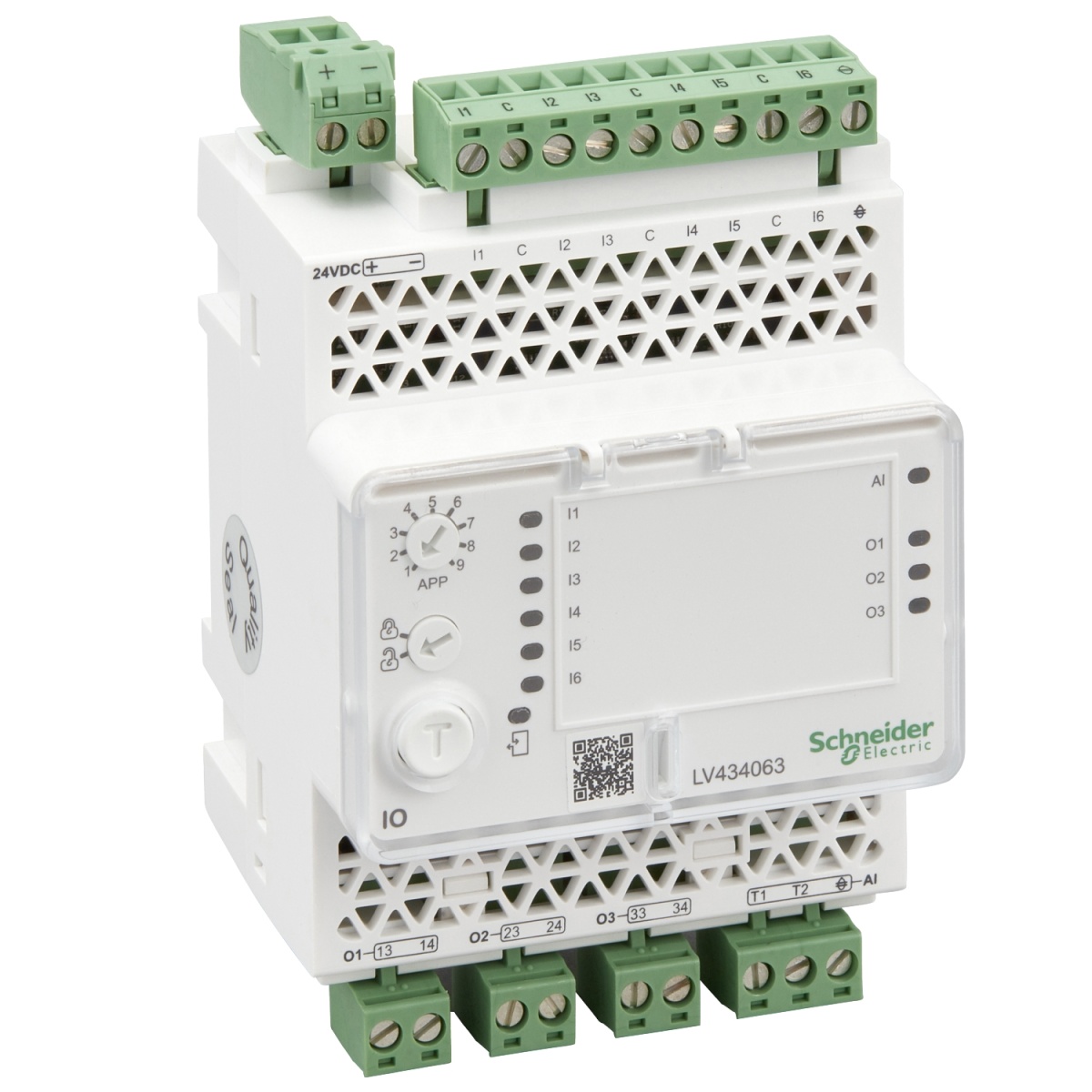

Enerlin'X IO module
Programmable Logic Controllers and Dialogue Terminals
Enerlin'X IO module
Manufacturer Ref:
LV434063
Nortécnica Ref:
EAN:
3606480631146
Description
Technical Information
Attributes
Width
71.7
Height
116
Depth
70.6
Input current at signal 1
6.1
Suitable for safety functions
No
Number of digital inputs
6
Number of digital outputs
3
Number of analogue inputs
1
Number of analogue outputs
0
Time delay at signal change
0
20
Voltage type supply voltage
DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
2
With optical interface
No
Type of voltage input voltage
DC
Supporting protocol for TCPIP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Output voltage at digital output
250
250
Output current at digital output
5
Analogue input, current
No
Analogue input, voltage
No
Analogue input, resistor
No
Analogue input, resistor temperature
Yes
Analogue input, thermocouple
Yes
Analogue input signal configurable
Yes
Analogue output, current
No
Analogue output, voltage
No
Analogue output signal configurable
No
Short-circuit protection, digital outputs available
Yes
Resolution of the analogue inputs
-
Resolution of the analogue outputs
-
Type of digital output
Other
Type of electric connection
Screw connection
Suitable for rail mounting
Yes
Explosion safety category for gas
-
Explosion safety category for dust
-
Fieldbus connection over separate bus coupler possible
No
System accessory
No
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
EF005474
IP2X
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of interfaces PROFINET
0
Number of HW-interfaces wireless
0
Front built-in possible
No
Rack-assembly possible
No
Wall mountingdirect mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
Yes
Performance level according to EN ISO 13849-1
-
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
Yes
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
19.2
26.4
Permitted voltage at input
19.8
25.2
Type of output voltage
AC
Digital inputs configurable
Yes
Analogue inputs configurable
Yes
Analogue outputs configurable
No
Digital outputs configurable
Yes
Radio standard GPRS
No
Radio standard GSM
No
Mobile communications standard 3G UMTS
No
SIL according to IEC 61508
None
Supporting protocol for EtherCAT
No
Certified for UL hazardous location class I
No
Certified for UL hazardous location class II
No
Certified for UL hazardous location class III
No
Certified for UL hazardous location division 1
No
Certified for UL hazardous location division 2
No
Certified for UL hazardous location group A acetylene
No
Certified for UL hazardous location group B hydrogen
No
Certified for UL hazardous location group C ethylene
No
Certified for UL hazardous location group D propane
No
Certified for UL hazardous location group E metal dusts
No
Certified for UL hazardous location group F carbonaceous dusts
No
Certified for UL hazardous location group G non-conductive dusts
No
Brands
Schneider
