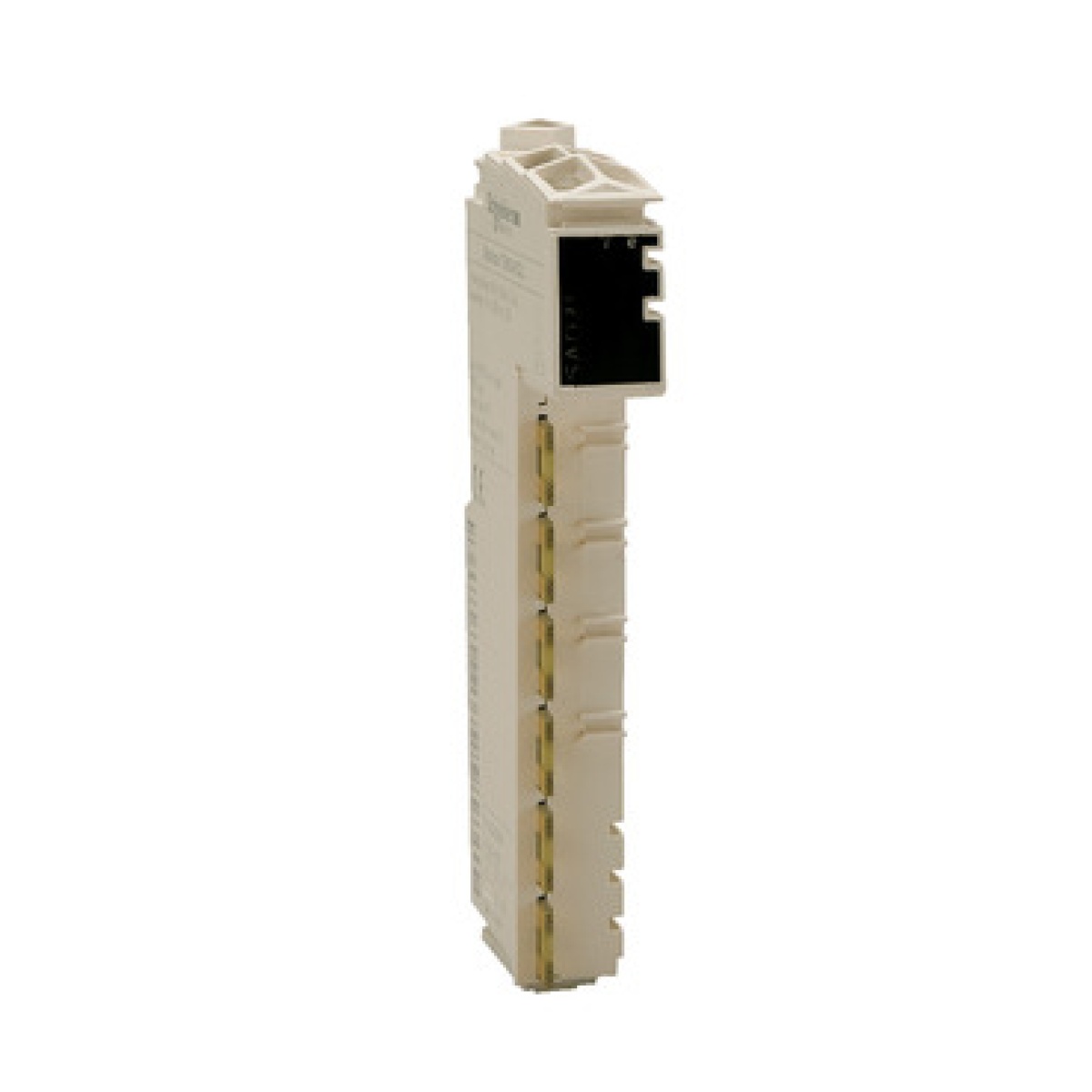

Módulo ES
Programmable Logic Controllers and Dialogue Terminals
Módulo ES
Manufacturer Ref:
TM5SMM6D2L
Nortécnica Ref:
EAN:
3595864082073
Description
Technical Information
Attributes
Width
12.5
Height
99
Depth
75
Input current at signal 1
3.3
Suitable for safety functions
No
Number of digital inputs
4
Number of digital outputs
2
Number of analogue inputs
1
Number of analogue outputs
1
Time delay at signal change
1
1
Voltage type supply voltage
DC
Type of voltage input voltage
DC
Output voltage at digital output
24
24
Output current at digital output
0.5
Analogue input, current
Yes
Analogue input, voltage
Yes
Analogue input, resistor
No
Analogue input, resistor temperature
No
Analogue input, thermocouple
No
Analogue input signal configurable
No
Analogue output, current
Yes
Analogue output, voltage
Yes
Analogue output signal configurable
No
Short-circuit protection, digital outputs available
Yes
Resolution of the analogue inputs
12
Resolution of the analogue outputs
12
Type of digital output
Transistor
Type of electric connection
Other
Explosion safety category for gas
None
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Digital in-outputs, configurable
No
Performance level according to EN ISO 13849-1
None
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
24
24
Permitted voltage at input
24
24
Type of output voltage
DC
SIL according to IEC 61508
None
Brands
Schneider
