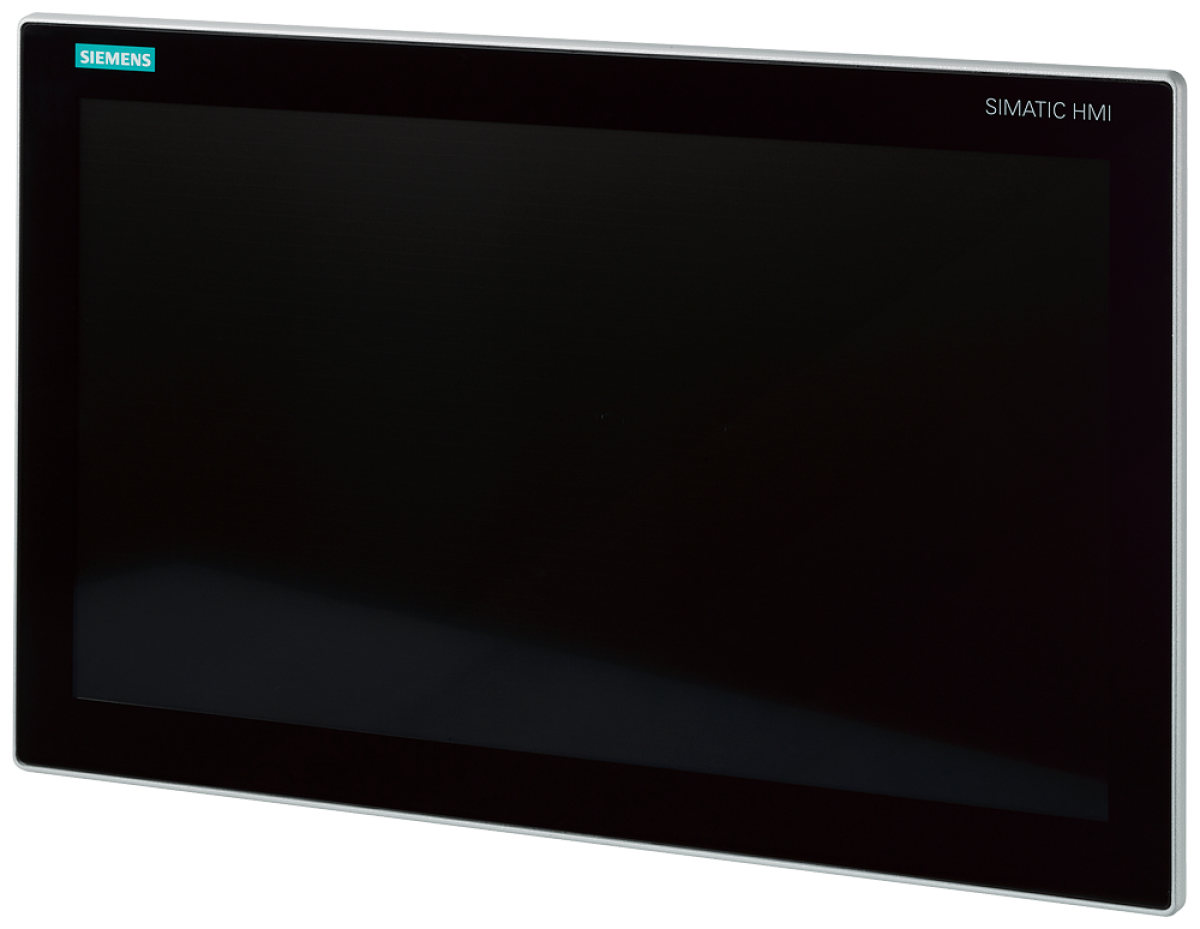

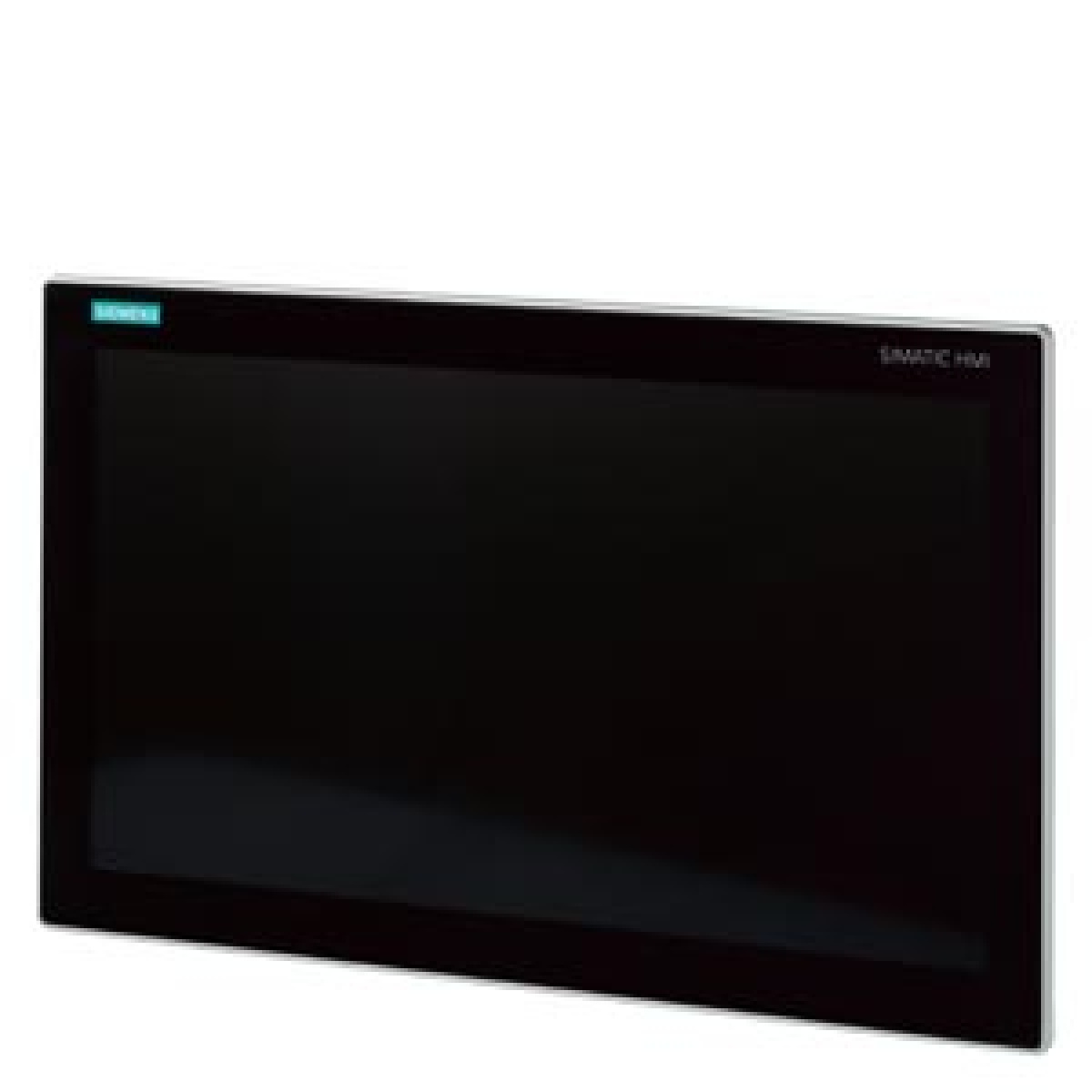

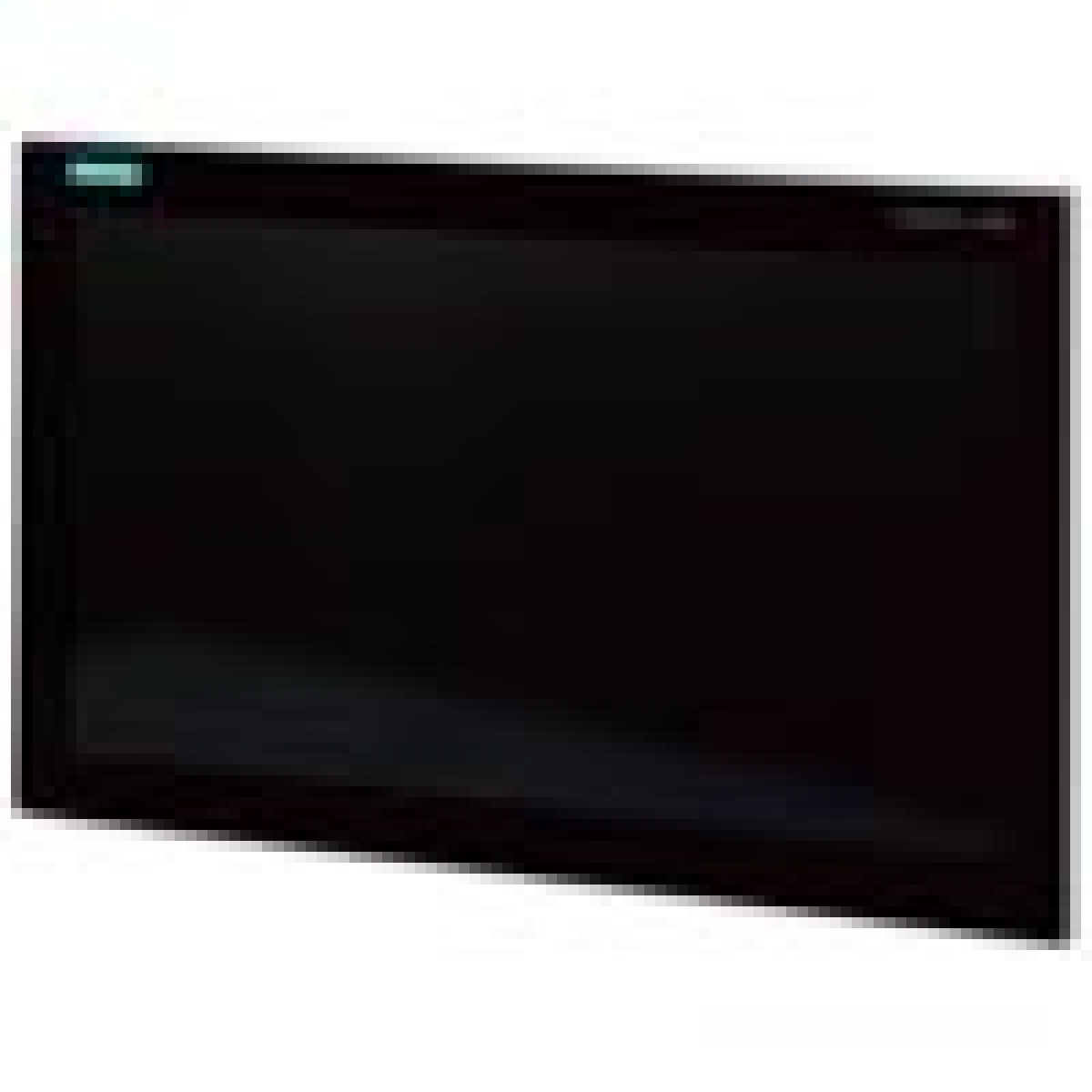

SIMATIC HMI ITC1500 V3 standard design Builtin unit
Programmable Logic Controllers and Dialogue Terminals
SIMATIC HMI ITC1500 V3 standard design Builtin unit
Manufacturer Ref:
6AV66461BA150AA0
Nortécnica Ref:
EAN:
4025515738077
Description
Technical Information
Attributes
Built-in depth
73
Suitable for safety functions
No
With hard disc
Yes
EF002002
No
Diagonal do ecrã
15.6
Operating temperature
0
Voltage type supply voltage
DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
2
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
4
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
Yes
Number of pixels, horizontal
1366
Number of pixels, vertical
768
With touch screen
Yes
Degree of protection IP, front side
IP65
Max. main memory
512
EF003124
No
EF003125
No
EF003127
No
With floppy disc drive
No
With other storage media
No
Customer individual configuration
No
Number of free AGP-slots
0
Number of free PCI-slots
0
Number of free ISA-slots
0
Number of free PCMCIA-slots
0
Number of HW-interfaces SCSI
0
Number of HW-interfaces PS2
0
Integrated keyboard
No
Number of function buttons
0
Mouse-cursor control integrated
No

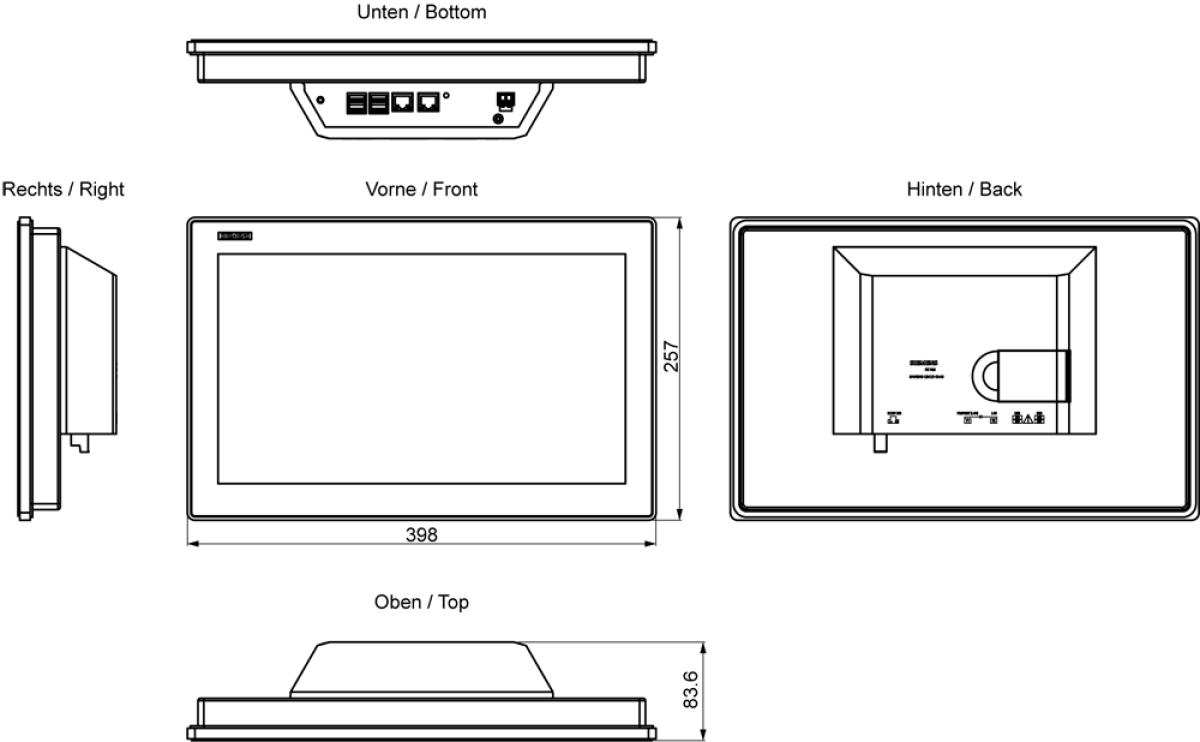

Width of the front
398
Height of the front
257
Suitable for rail mounting
No
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of interfaces PROFINET
2
Number of HW-interfaces wireless
-
Front built-in possible
Yes
Mounting type, gallows mounting
No
Rack-assembly possible
Yes
Mounting type, table foot
No
Wall mountingdirect mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
Supply voltage AC 60 Hz
-
Supply voltage DC
19.2
Preinstalled operating system
-
Type of display
-
Mobile communication standard GPRS
No
Mobile communication standard 2G GSM
No
Mobile communication standard 3G UMTS
No
Number of buttons with LED
0
Number of system buttons
0
Degree of protection NEMA
-
Brands
Siemens AG
