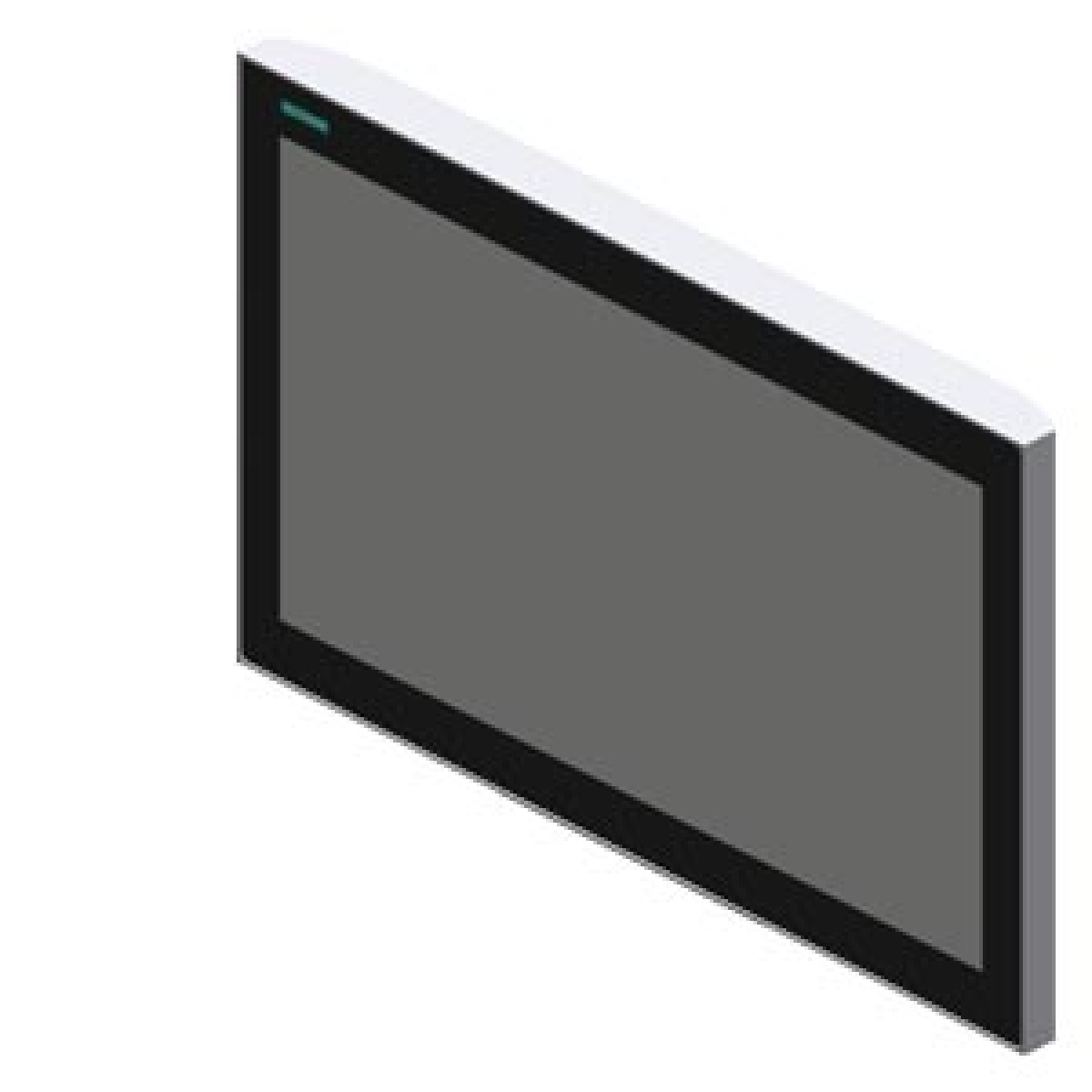

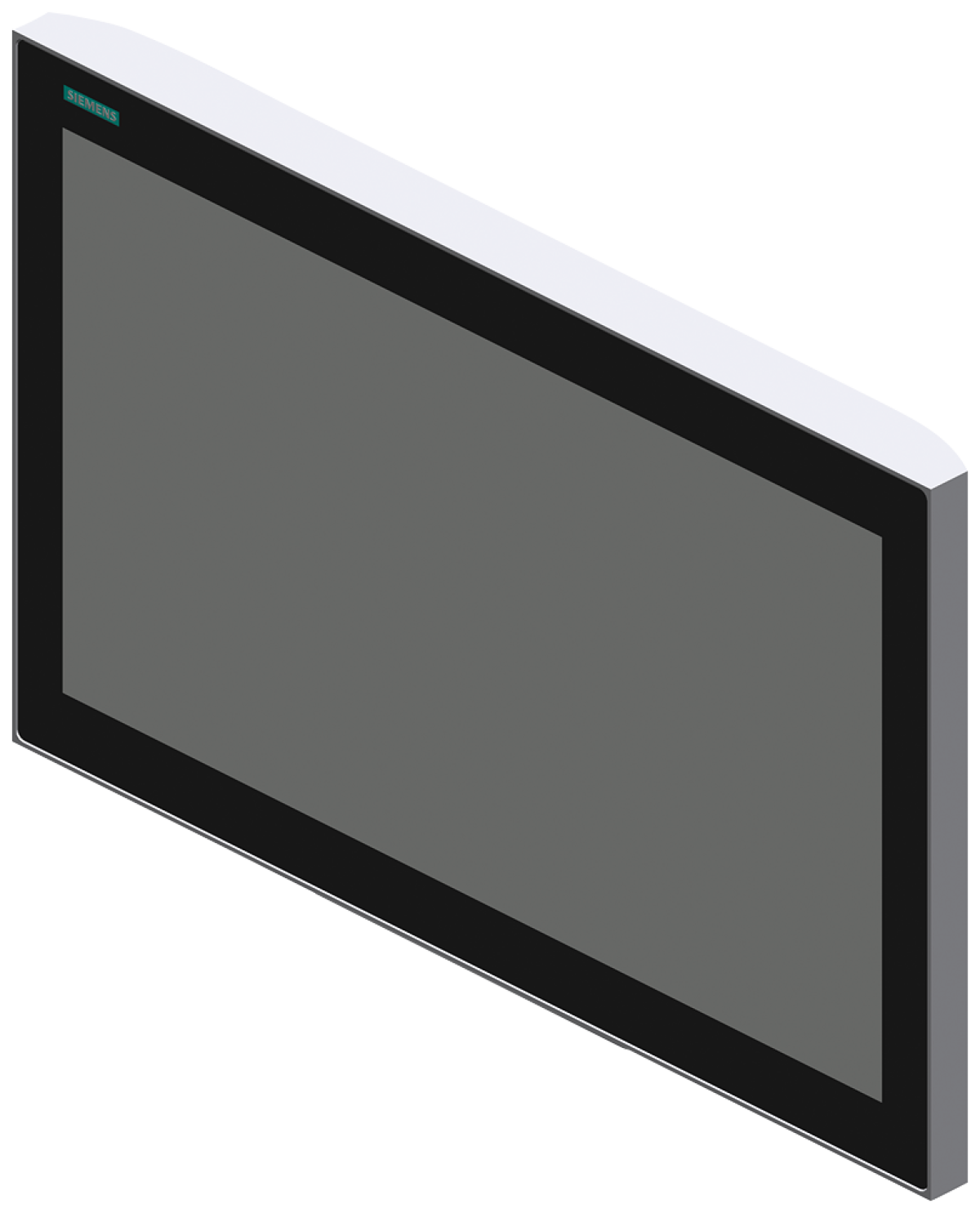

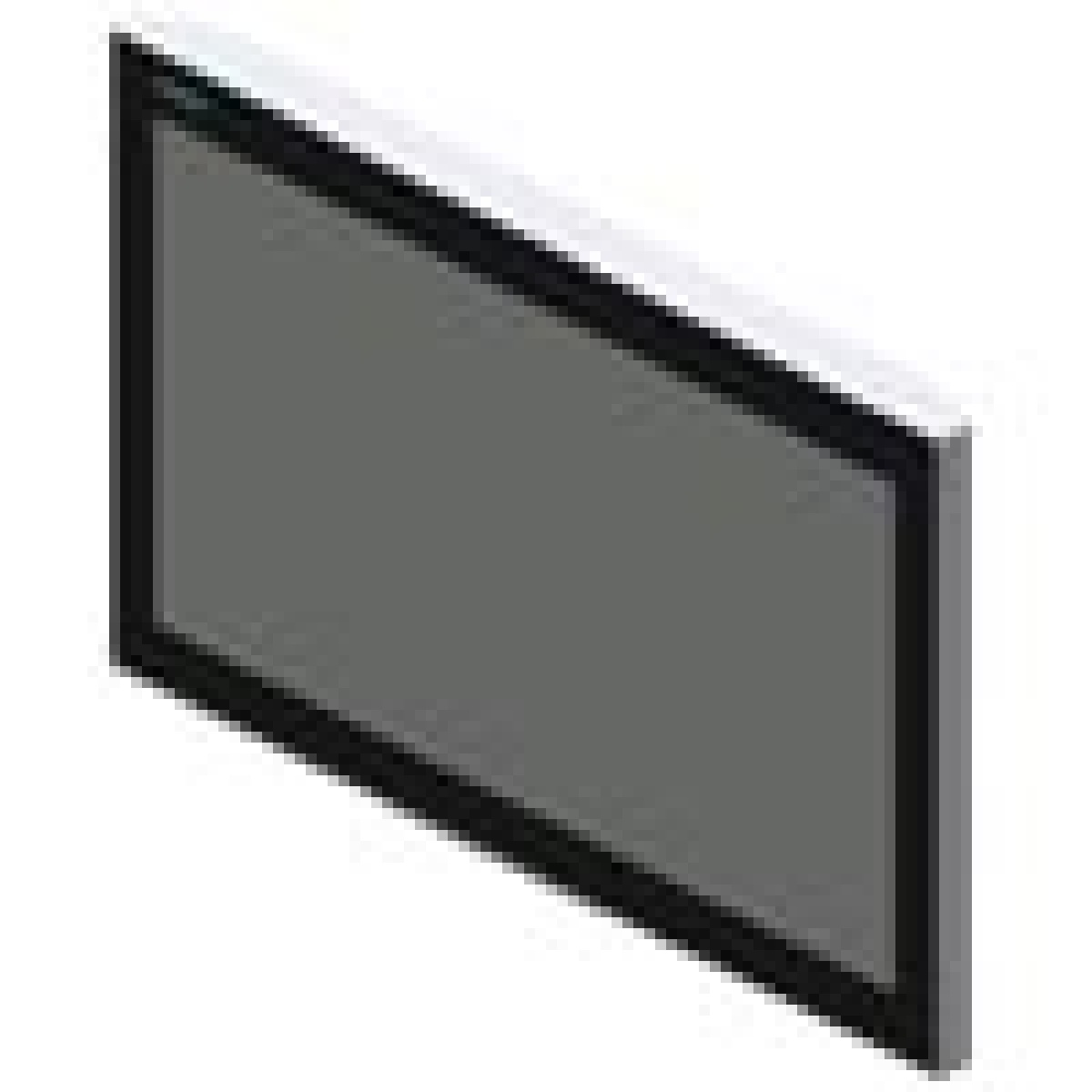

SIMATIC HMI ITC1900 V3 PRO neutral design support arm mounting with extension
Programmable Logic Controllers and Dialogue Terminals
SIMATIC HMI ITC1900 V3 PRO neutral design support arm mounting with extension
Manufacturer Ref:
6AV66461BD180NA0
Nortécnica Ref:
EAN:
4047623410065
Description
Technical Information
Attributes
Built-in depth
101
Suitable for safety functions
No
With hard disc
Yes
EF002002
No
Diagonal do ecrã
18.5
Operating temperature
0
Voltage type supply voltage
DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
2
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
4
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
Yes
Number of pixels, horizontal
1366
Number of pixels, vertical
768
With touch screen
Yes
Degree of protection IP, front side
IP65
Max. main memory
2000
EF003124
No
EF003125
No
EF003127
No
With floppy disc drive
No
With other storage media
No
Customer individual configuration
No
Number of free AGP-slots
0
Number of free PCI-slots
0
Number of free ISA-slots
0
Number of free PCMCIA-slots
0
Number of HW-interfaces SCSI
0
Number of HW-interfaces PS2
0
Integrated keyboard
No
Number of function buttons
0
Mouse-cursor control integrated
No

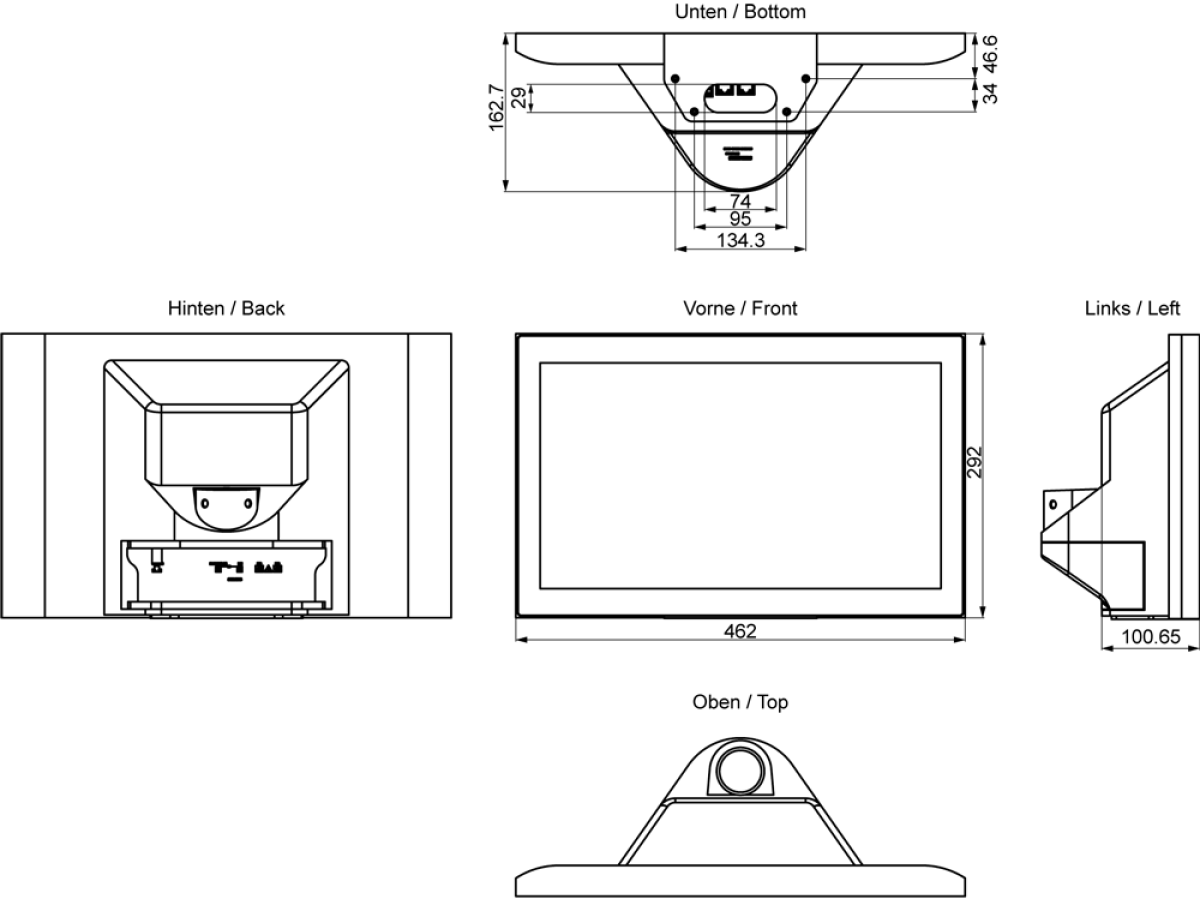

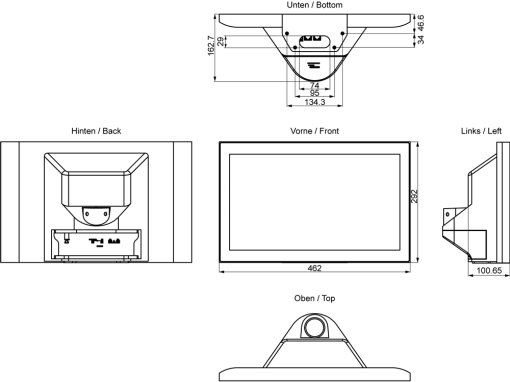

Width of the front
462
Height of the front
293
Suitable for rail mounting
No
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of interfaces PROFINET
2
Number of HW-interfaces wireless
-
Front built-in possible
No
Mounting type, gallows mounting
Yes
Rack-assembly possible
No
Mounting type, table foot
No
Wall mountingdirect mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
Supply voltage AC 60 Hz
-
Supply voltage DC
19.2
Preinstalled operating system
-
Type of display
-
Mobile communication standard GPRS
No
Mobile communication standard 2G GSM
No
Mobile communication standard 3G UMTS
No
Number of buttons with LED
0
Number of system buttons
0
Degree of protection NEMA
-
Brands
Siemens AG
