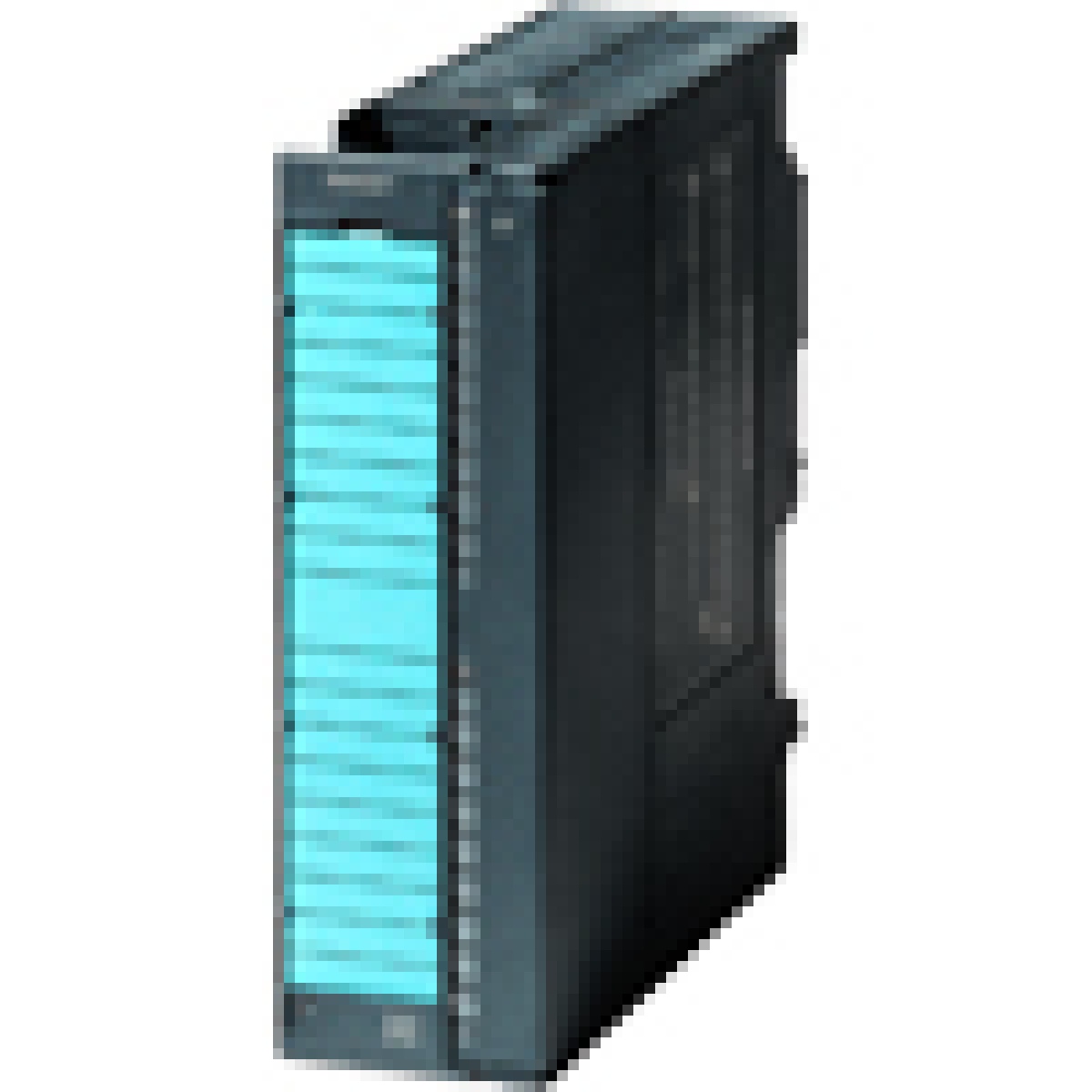

SIPLUS S7300 SM 331 AI RTD 8x16 bit With conformal coating based on 6ES7331

Manufacturer Ref: 6AG13317PF014AB0
Nortécnica Ref:
EAN: 4042948571156
Description

SIPLUS S7300 SM 331 AI RTD 8x16 bit With conformal coating based on 6ES7331

Technical Information
Attributes
Width
40
Height
125
Depth
120
Suitable for safety functions
No
Number of analogue inputs
8
Number of analogue outputs
0
Input, current
No
Input, voltage
No
Input, resistor
Yes
Input, resistance thermometer
Yes
Input, thermocouple
No
Input signal, configurable
Yes
Output, current
-
Output, voltage
-
Output signal configurable
-
Resolution of the analogue inputs
16
Resolution of the analogue outputs
-
Type of electric connection
Screwspring clamp connection
Explosion safety category for gas
ATEX gasexprotection Cat 3G
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Performance level according to EN ISO 13849-1
-
Analogue inputs configurable
Yes
Analogue outputs configurable
-
SIL according to IEC 61508
-
Brands
Siemens AG
Technical Sheet
