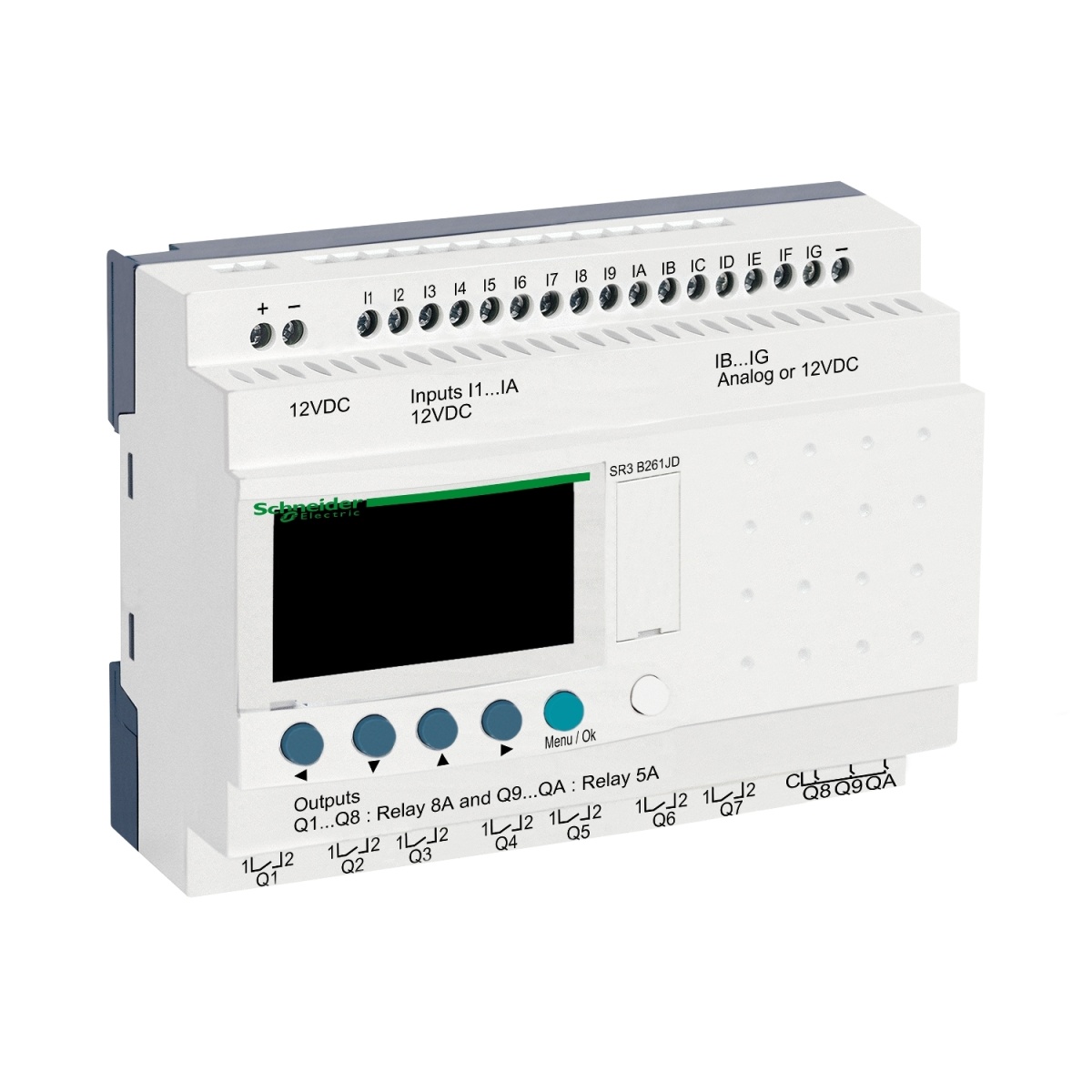

Zelio logic modular - 26 e s - 12 v dc - relógio - ecrã
Programmable Logic Controllers and Dialogue Terminals
Zelio logic modular - 26 e s - 12 v dc - relógio - ecrã
Manufacturer Ref:
SR3B261JD
Nortécnica Ref:
52SR3B261JD
EAN:
3389119203920
Description
Technical Information
Attributes
Width
124.6
Height
90
Depth
59.5
Expandable
Yes
Switching current
8
With time switch clock
Yes
Power consumption
3
With display
Yes
Suitable for safety functions
No
Number of digital inputs
16
Number of digital outputs
10
Number of analogue inputs
6
Number of analogue outputs
0
Voltage type supply voltage
DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
1
With optical interface
No
Supporting protocol for TCPIP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Redundancy
No
With relay output
Yes
Suitable for rail mounting
Yes
Explosion safety category for gas
None
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Degree of protection IP
IP20
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of interfaces PROFINET
0
Number of HW-interfaces wireless
0
Front built-in possible
Yes
Rack-assembly possible
No
Wall mountingdirect mounting
Yes
Expansion device
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Basic device
Yes
IO link master
No
Performance level according to EN ISO 13849-1
None
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
12
12
Radio standard GPRS
No
Radio standard GSM
No
Mobile communications standard 3G UMTS
No
SIL according to IEC 61508
None
Supporting protocol for EtherCAT
No
Certified for UL hazardous location class I
No
Certified for UL hazardous location class II
No
Certified for UL hazardous location class III
No
Certified for UL hazardous location division 1
No
Certified for UL hazardous location division 2
No
Certified for UL hazardous location group A acetylene
No
Certified for UL hazardous location group B hydrogen
No
Certified for UL hazardous location group C ethylene
No
Certified for UL hazardous location group D propane
No
Certified for UL hazardous location group E metal dusts
No
Certified for UL hazardous location group F carbonaceous dusts
No
Certified for UL hazardous location group G non-conductive dusts
No
Brands
Schneider
