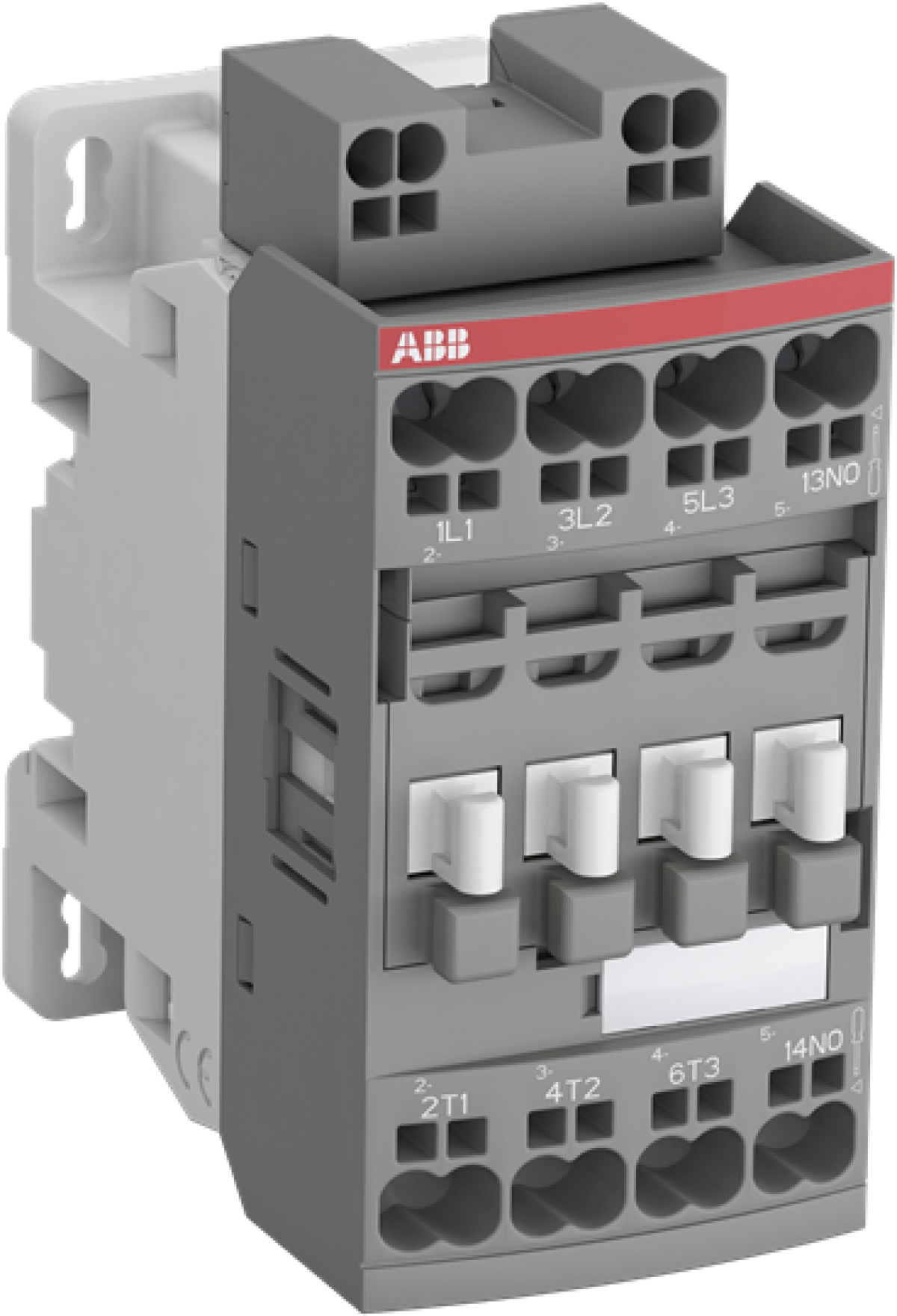

AF09-40-00K-14 250-500V5060HZ-DC Contactor
Contactors, Motor Circuit Breakers and Accessories
AF09-40-00K-14 250-500V5060HZ-DC Contactor
Manufacturer Ref:
1SBL137205R1400
Nortécnica Ref:
EAN:
3471523018549
Description
Technical Information
Attributes
Largura
45
Height
92.3
Depth
77
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
4
Number of normally open contacts as main contact
4
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
9
Rated operation current Ie at AC-1, 400 V
25
Rated control supply voltage AC 50 Hz
250
500
Rated control supply voltage AC 60 Hz
250
500
Rated control supply voltage DC
250
500
Type of electrical connection of main circuit
Spring clamp connection
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Voltage type for actuating
AC/DC
Rated operation current Ie at AC-4, 400 V
-
Rated operation power at AC-4, 400 V
-
Rated operation power NEMA
-
Brands
ABB
Technical Sheet
