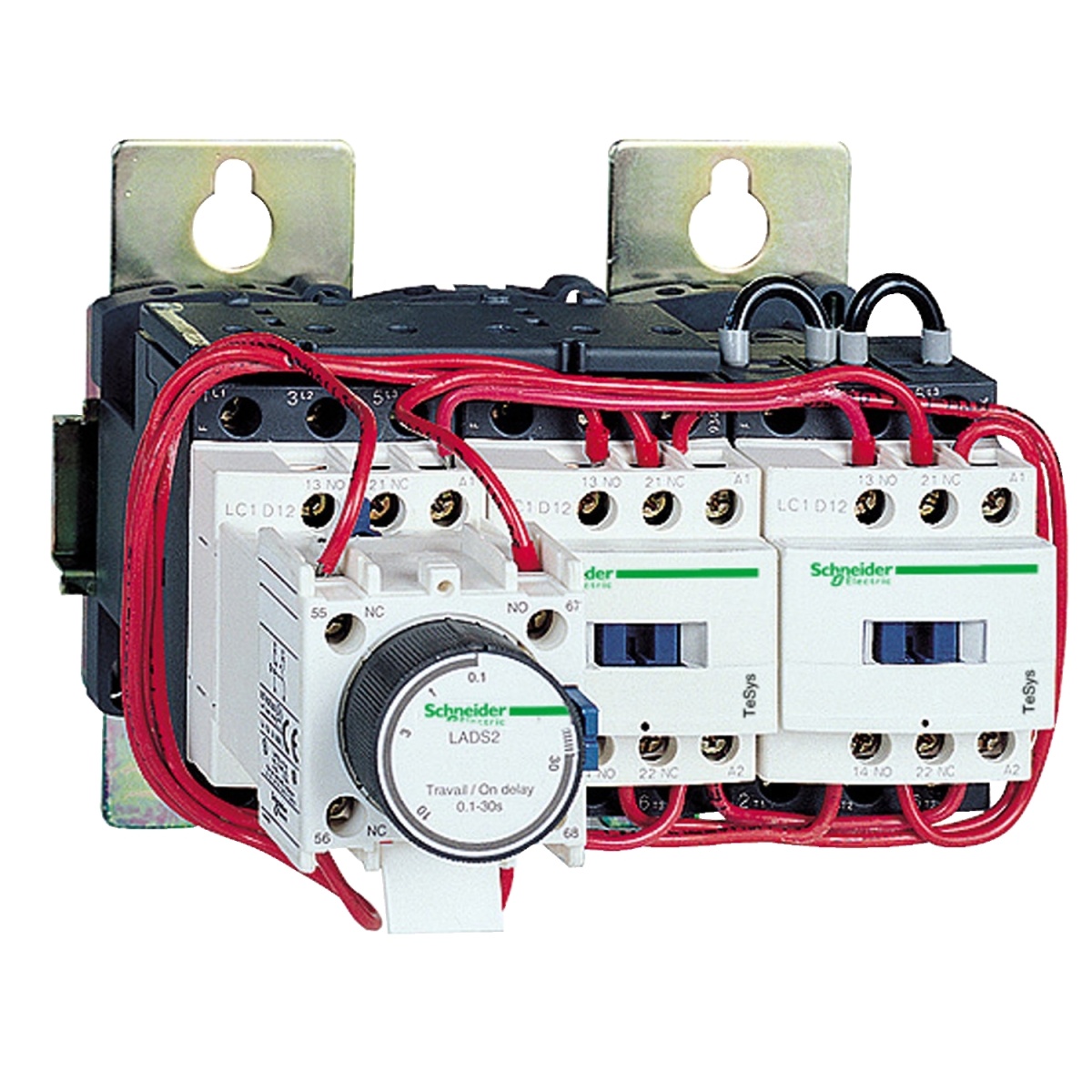

Arrancador estrela triângulo Tesys D - 3 x 3P 3 NA - 80 A - 230 V CA bobina
Contactors, Motor Circuit Breakers and Accessories
Arrancador estrela triângulo Tesys D - 3 x 3P 3 NA - 80 A - 230 V CA bobina
Manufacturer Ref:
LC3D80P7A64
Nortécnica Ref:
EAN:
3389110961393
Description
Technical Information
Attributes
Width
311
Function
Star-delta contactor
Height
143
Depth
183
Rated operation power at AC-3, 400 V
75
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
80
Rated operation current Ie at AC-1, 400 V
-
Number of auxiliary contacts as change-over contact
-
Suitable for rail mounting
No
Rated control supply voltage AC 50 Hz
230
230
Rated control supply voltage AC 60 Hz
230
230
Rated control supply voltage DC
-
-
Voltage type operating voltage
AC
Degree of protection IP
IP20
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
440
440
Operating voltage DC
-
-
Voltage type for actuating
AC
Degree of protection NEMA
Other
Rated operation power NEMA
-
Brands
Schneider
Technical Sheet
