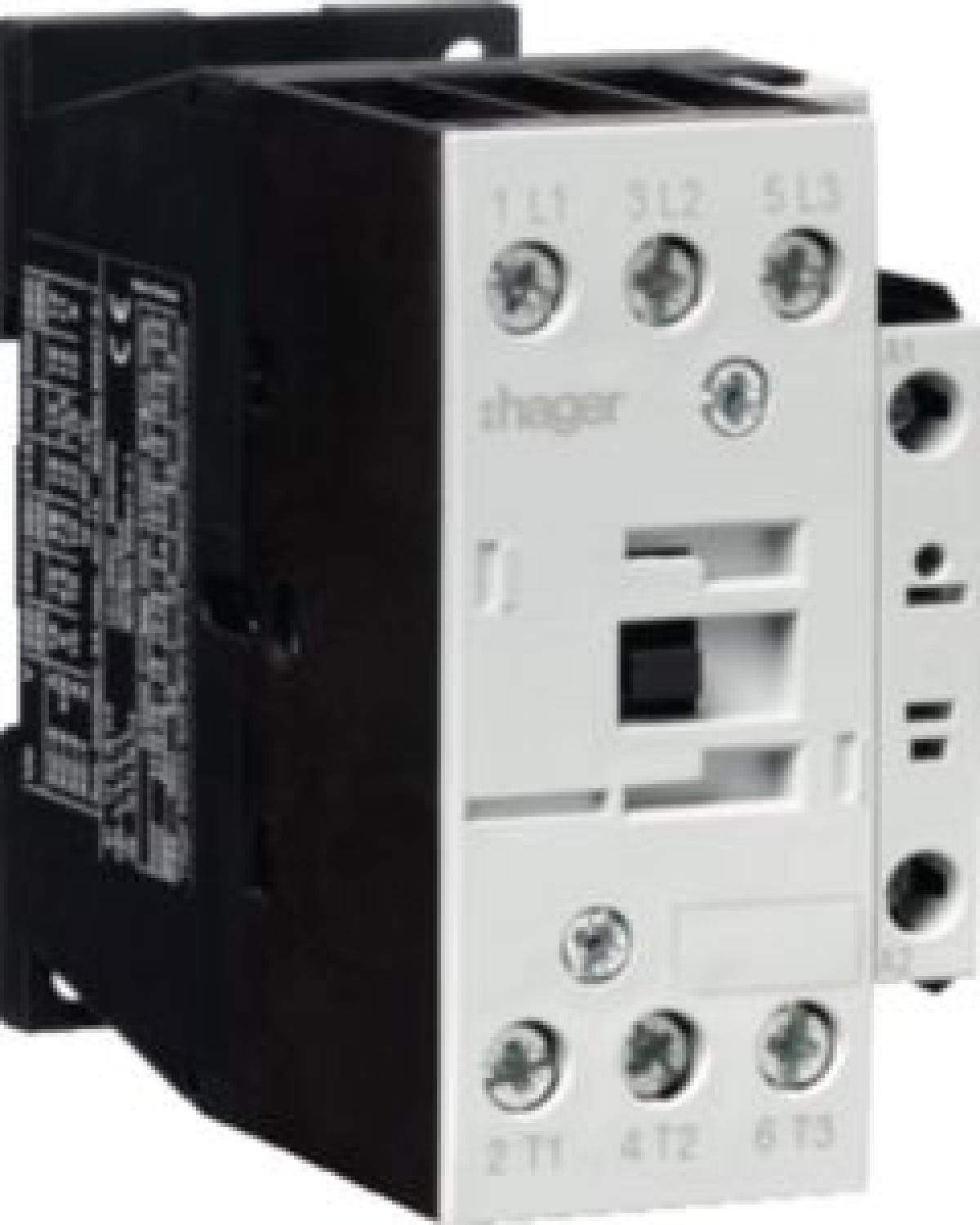

Cont 3P1 NA 38A 230 V 50Hz240 V 60Hz
Contactors, Motor Circuit Breakers and Accessories
Cont 3P1 NA 38A 230 V 50Hz240 V 60Hz
Manufacturer Ref:
EV03810C
Nortécnica Ref:
EAN:
3250612236060
Description
Technical Information
Attributes
Width
45
Height
85
Depth
138
Suitable for distribution board
Yes
Rated operation power at AC-3, 400 V
18.5
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
38
Rated operation current Ie at AC-1, 400 V
45
Rated control supply voltage AC 50 Hz
230
230
Rated control supply voltage AC 60 Hz
230
230
Rated control supply voltage DC
-
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
230
230
Operating voltage AC 60 Hz
240
240
Voltage type for actuating
ACDC
Rated operation current Ie at AC-4, 400 V
15
Rated operation power at AC-4, 400 V
7
Rated operation power NEMA
-
Brands
Hager Sistemas Eléctricos Modulares SA
