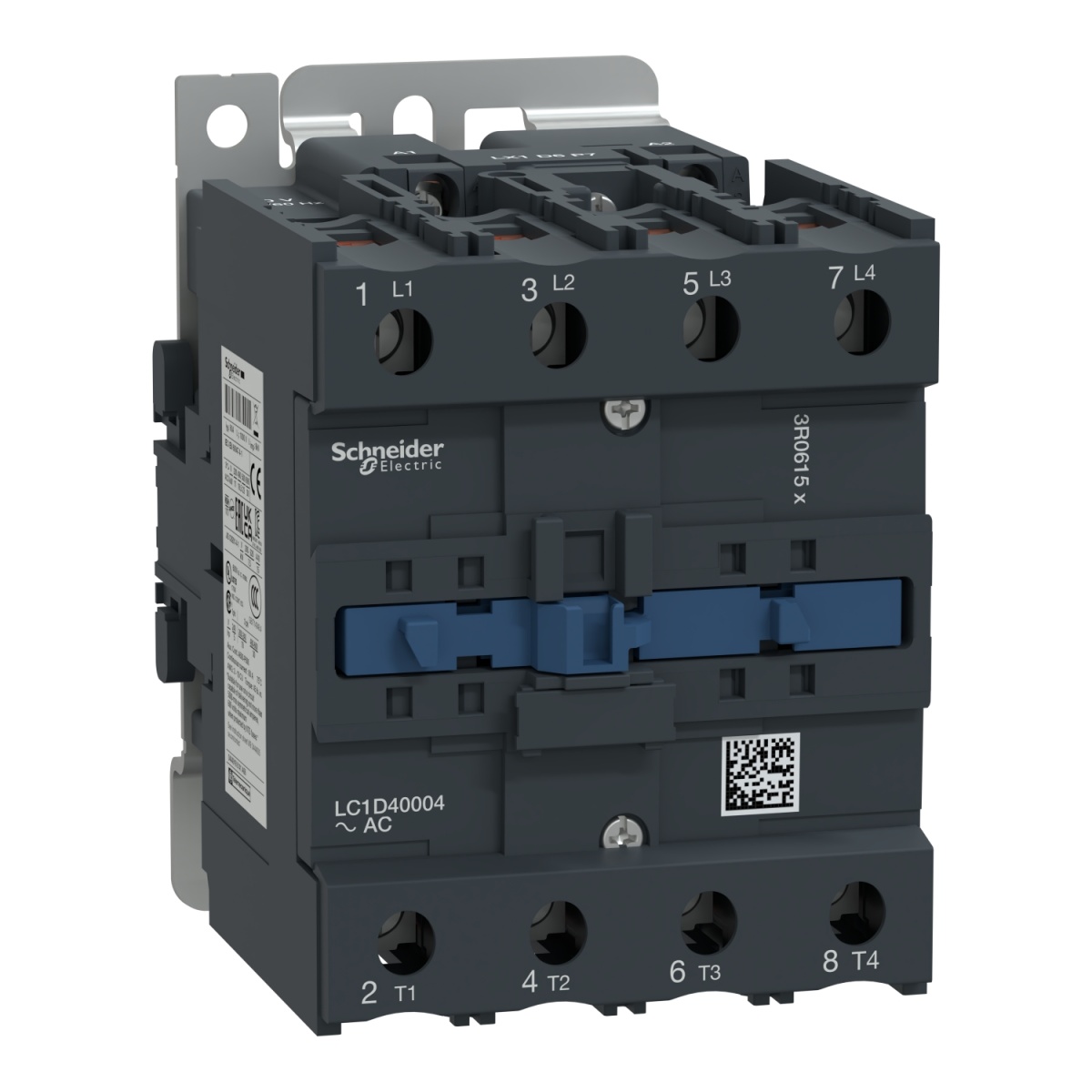

contactor - TeSys LC1-D - 4 poles - AC-1 440V 60 A - coil 230 V AC
Contactors, Motor Circuit Breakers and Accessories
contactor - TeSys LC1-D - 4 poles - AC-1 440V 60 A - coil 230 V AC
Manufacturer Ref:
LC1D40004P7
Nortécnica Ref:
52LC1D40004P7
EAN:
3389110069631
Description
Technical Information
Attributes
Width
85
Height
127
Depth
125
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
-
Number of normally open contacts as main contact
4
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
-
Rated operation current Ie at AC-1, 400 V
60
Rated control supply voltage AC 50 Hz
230
230
Rated control supply voltage AC 60 Hz
230
230
Rated control supply voltage DC
-
-
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
440
440
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
-
Rated operation power at AC-4, 400 V
-
Rated operation power NEMA
-
Brands
Schneider
Technical Sheet
