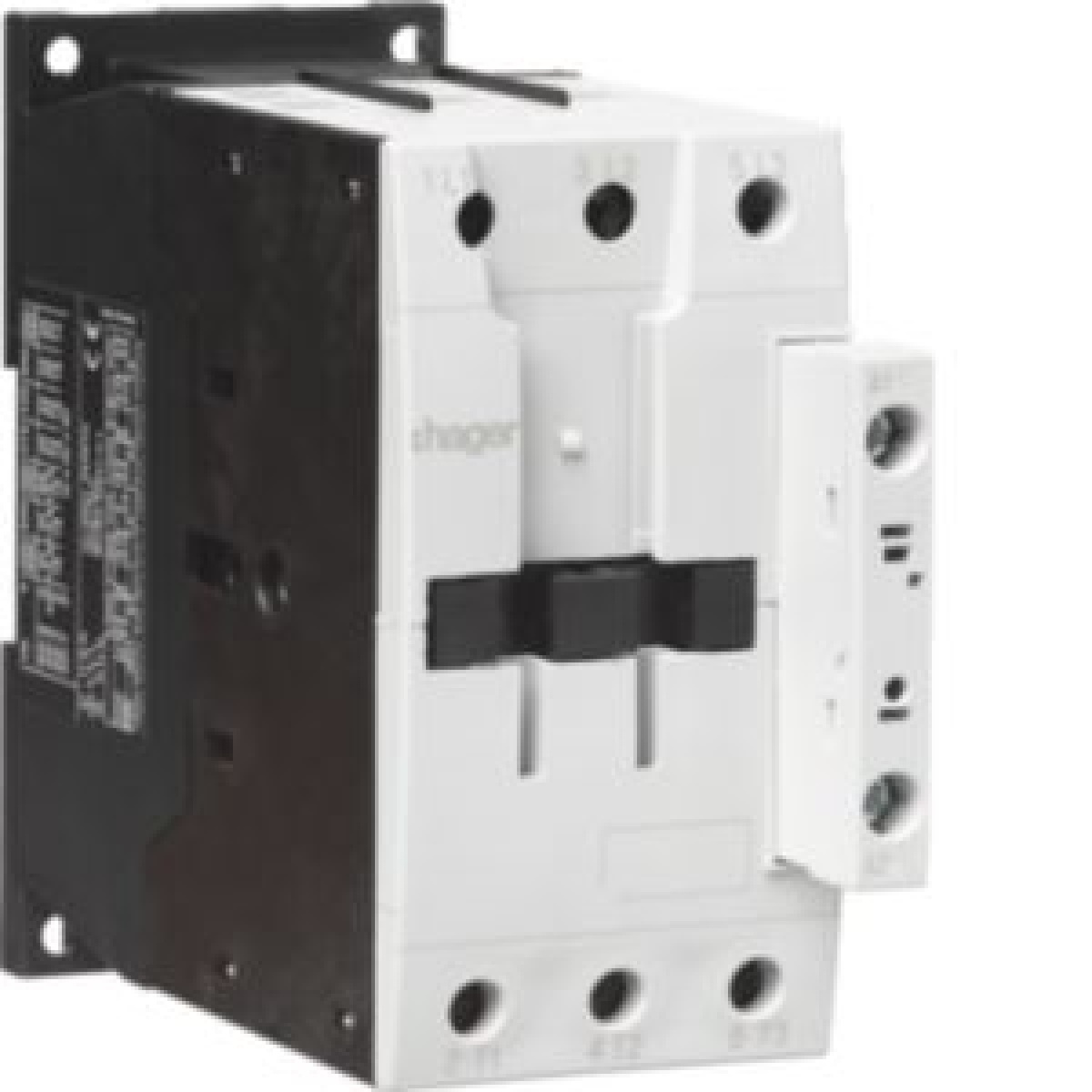

Contactor 3P 65A 24 V 5060 Hz
Contactors, Motor Circuit Breakers and Accessories
Contactor 3P 65A 24 V 5060 Hz
Manufacturer Ref:
EV065D
Nortécnica Ref:
EAN:
3250612236169
Description
Technical Information
Attributes
Width
55
Height
115
Depth
147
Suitable for distribution board
Yes
Rated operation power at AC-3, 400 V
30
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
65
Rated operation current Ie at AC-1, 400 V
98
Rated control supply voltage AC 50 Hz
24
24
Rated control supply voltage AC 60 Hz
24
24
Rated control supply voltage DC
-
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
24
24
Operating voltage AC 60 Hz
24
24
Voltage type for actuating
ACDC
Rated operation current Ie at AC-4, 400 V
25
Rated operation power at AC-4, 400 V
12
Rated operation power NEMA
-
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
