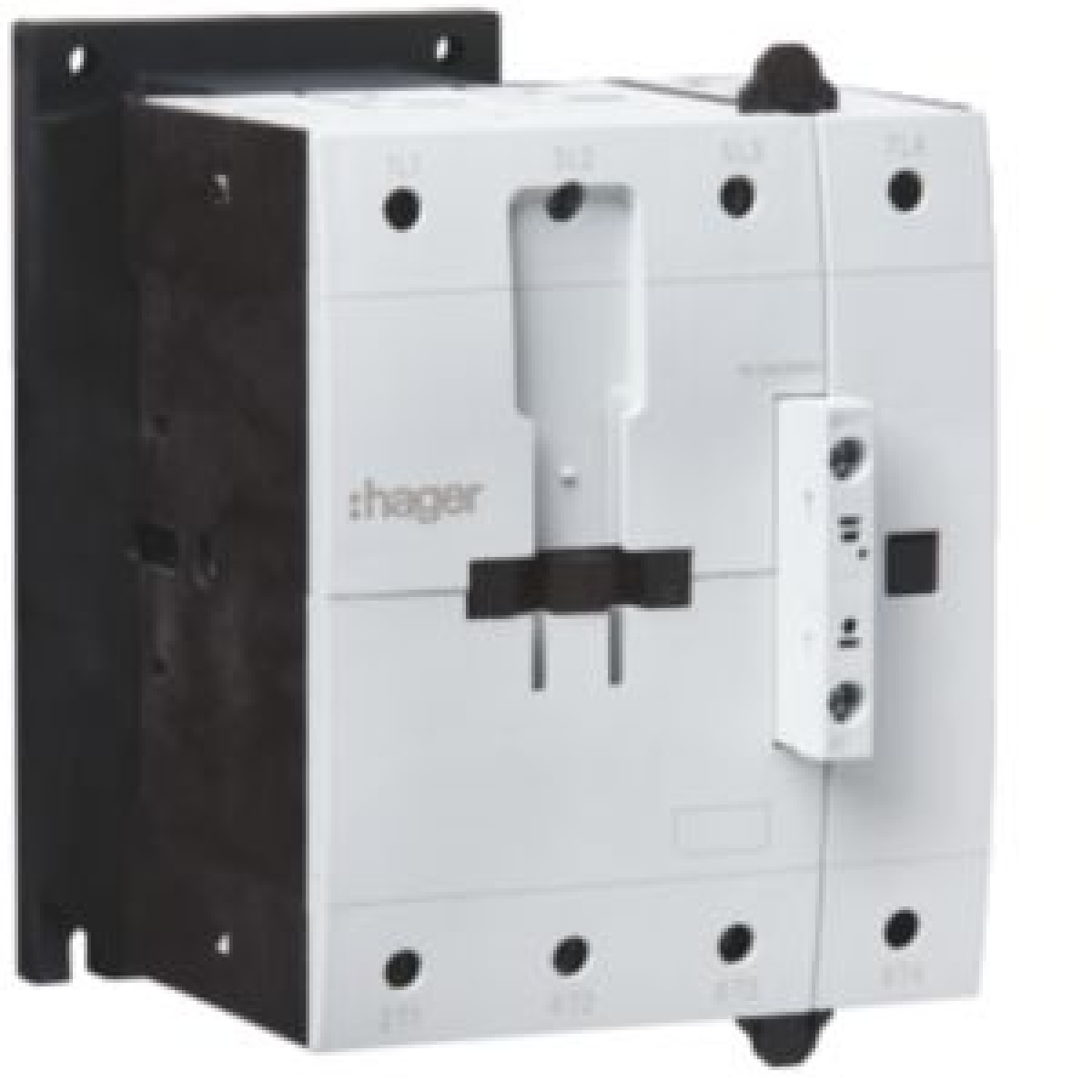

Contactor 4P 200A 230V 50 Hz240V 60 Hz
Contactors, Motor Circuit Breakers and Accessories
Contactor 4P 200A 230V 50 Hz240V 60 Hz
Manufacturer Ref:
EVN200C
Nortécnica Ref:
EAN:
3250612236497
Description
Technical Information
Attributes
Width
122
Height
170
Depth
142
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
55
Number of normally open contacts as main contact
4
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
115
Rated operation current Ie at AC-1, 400 V
200
Rated control supply voltage AC 50 Hz
190
240
Rated control supply voltage AC 60 Hz
190
240
Rated control supply voltage DC
-
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
190
240
Operating voltage AC 60 Hz
190
240
Voltage type for actuating
ACDC
Rated operation current Ie at AC-4, 400 V
-
Rated operation power at AC-4, 400 V
-
Rated operation power NEMA
-
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
