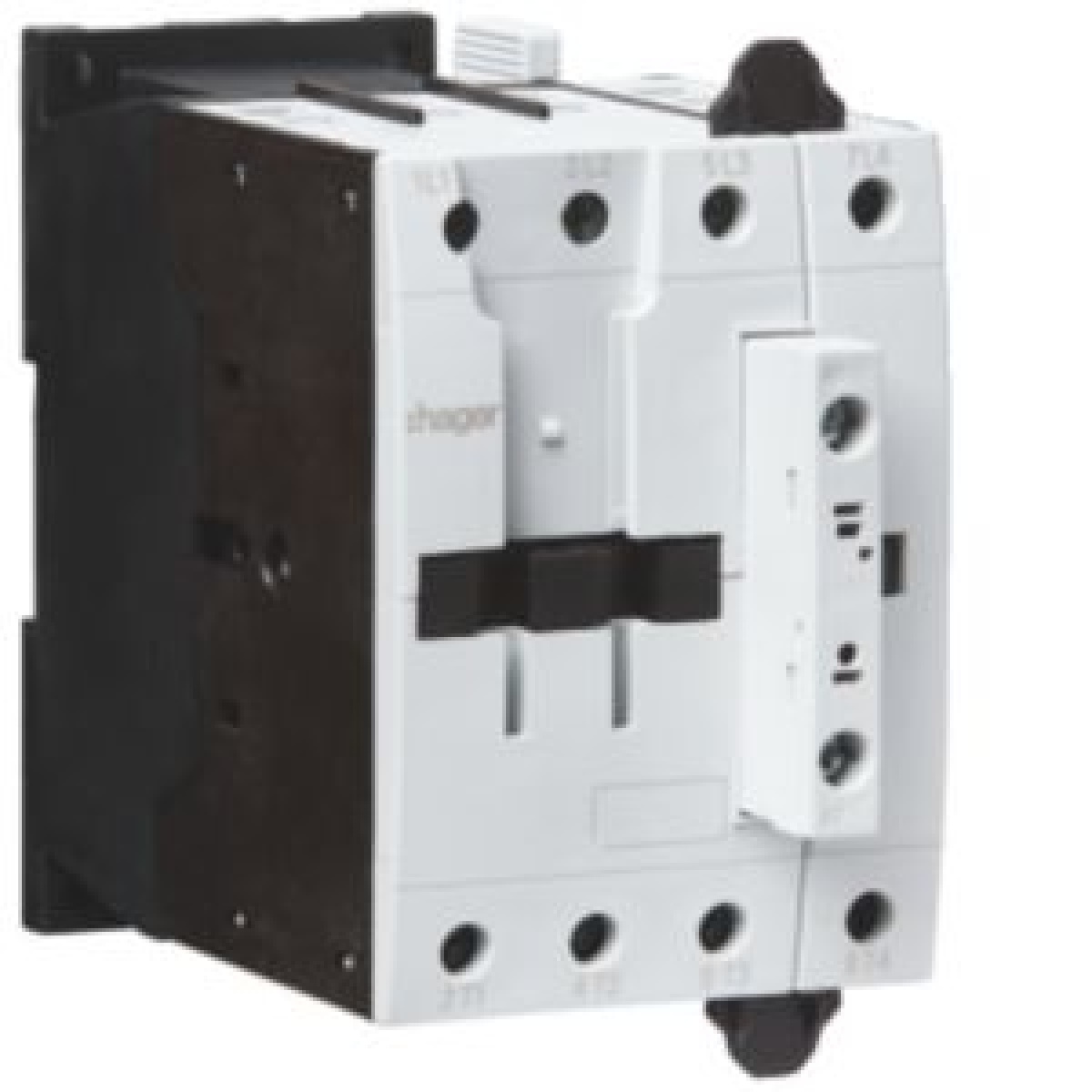

Contactor 4P 63A 24 27 VDC
Contactors, Motor Circuit Breakers and Accessories
Contactor 4P 63A 24 27 VDC
Manufacturer Ref:
EVN063E
Nortécnica Ref:
EAN:
3250612236435
Description
Technical Information
Attributes
Width
74
Height
115
Depth
114
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
18.5
Number of normally open contacts as main contact
4
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
40
Rated operation current Ie at AC-1, 400 V
63
Rated control supply voltage AC 50 Hz
-
Rated control supply voltage AC 60 Hz
-
Rated control supply voltage DC
24
27
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
230
690
Operating voltage AC 60 Hz
230
690
Voltage type for actuating
ACDC
Rated operation current Ie at AC-4, 400 V
25
Rated operation power at AC-4, 400 V
12
Rated operation power NEMA
22
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
