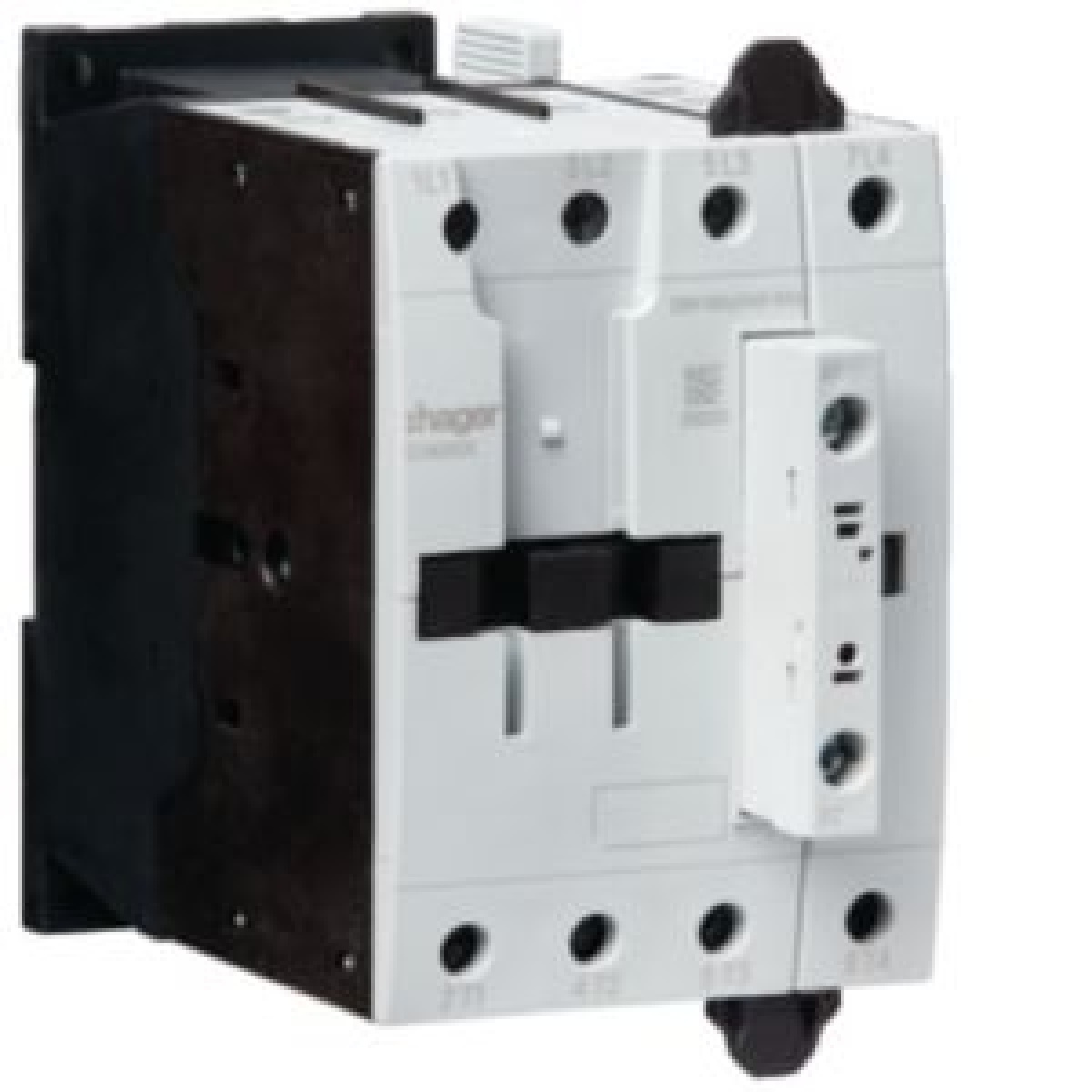

Contactor 4P 80A 230 V 50 Hz240 V 60 Hz
Contactors, Motor Circuit Breakers and Accessories
Contactor 4P 80A 230 V 50 Hz240 V 60 Hz
Manufacturer Ref:
EVN080C
Nortécnica Ref:
EAN:
3250612236442
Description
Technical Information
Attributes
Width
74
Height
115
Depth
114
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
22
Number of normally open contacts as main contact
4
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
50
Rated operation current Ie at AC-1, 400 V
80
Rated control supply voltage AC 50 Hz
230
230
Rated control supply voltage AC 60 Hz
230
230
Rated control supply voltage DC
-
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
230
230
Operating voltage AC 60 Hz
240
240
Voltage type for actuating
ACDC
Rated operation current Ie at AC-4, 400 V
-
Rated operation power at AC-4, 400 V
-
Rated operation power NEMA
-
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
