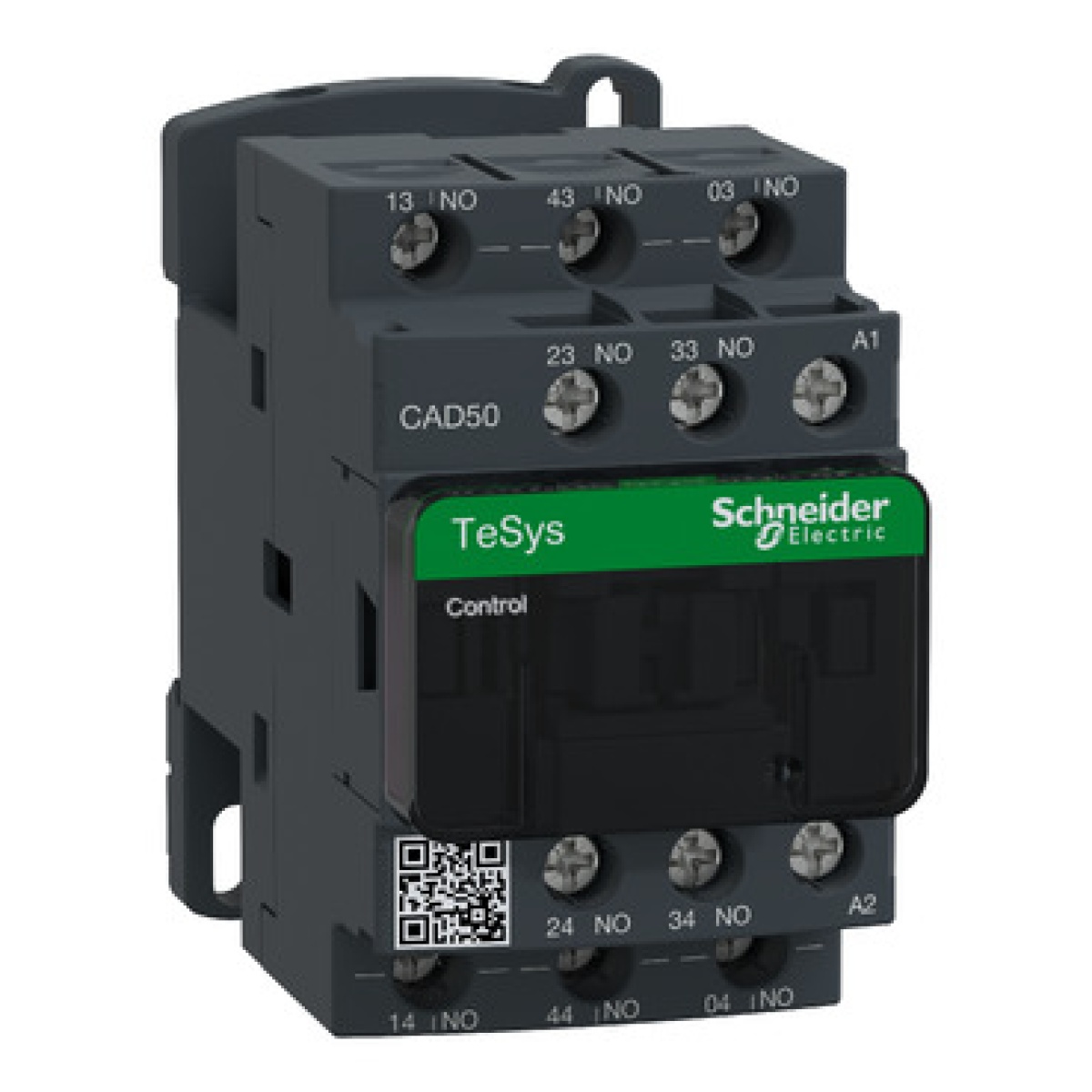

Contactor auxiliar TeSys CAD50 - 5NA 230VCA
Contactors, Motor Circuit Breakers and Accessories
Contactor auxiliar TeSys CAD50 - 5NA 230VCA
Manufacturer Ref:
CAD50P7
Nortécnica Ref:
52CAD50P7
EAN:
3389110403336
Description
Technical Information
Attributes
Mounting method
DIN-rail/screw
Width
27
Height
56
Depth
55.5
Interface
No
Number of auxiliary contacts as normally open contact
5
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie, 400 V
10
Suitable for manual operation
No
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage AC 50 Hz
230
230
Rated control supply voltage AC 60 Hz
230
230
Rated control supply voltage DC
-
-
Voltage type operating voltage
AC
With LED indication
No
Rated switch current
0.005
Connection type auxiliary circuit
Screw connection
Number of auxiliary contacts as normally closed contact, delayed switching
0
Number of auxiliary contacts as normally open contact, leading
0
Rated operation current
10
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
-
-
Voltage type for actuating
AC
Brands
Schneider
Technical Sheet
