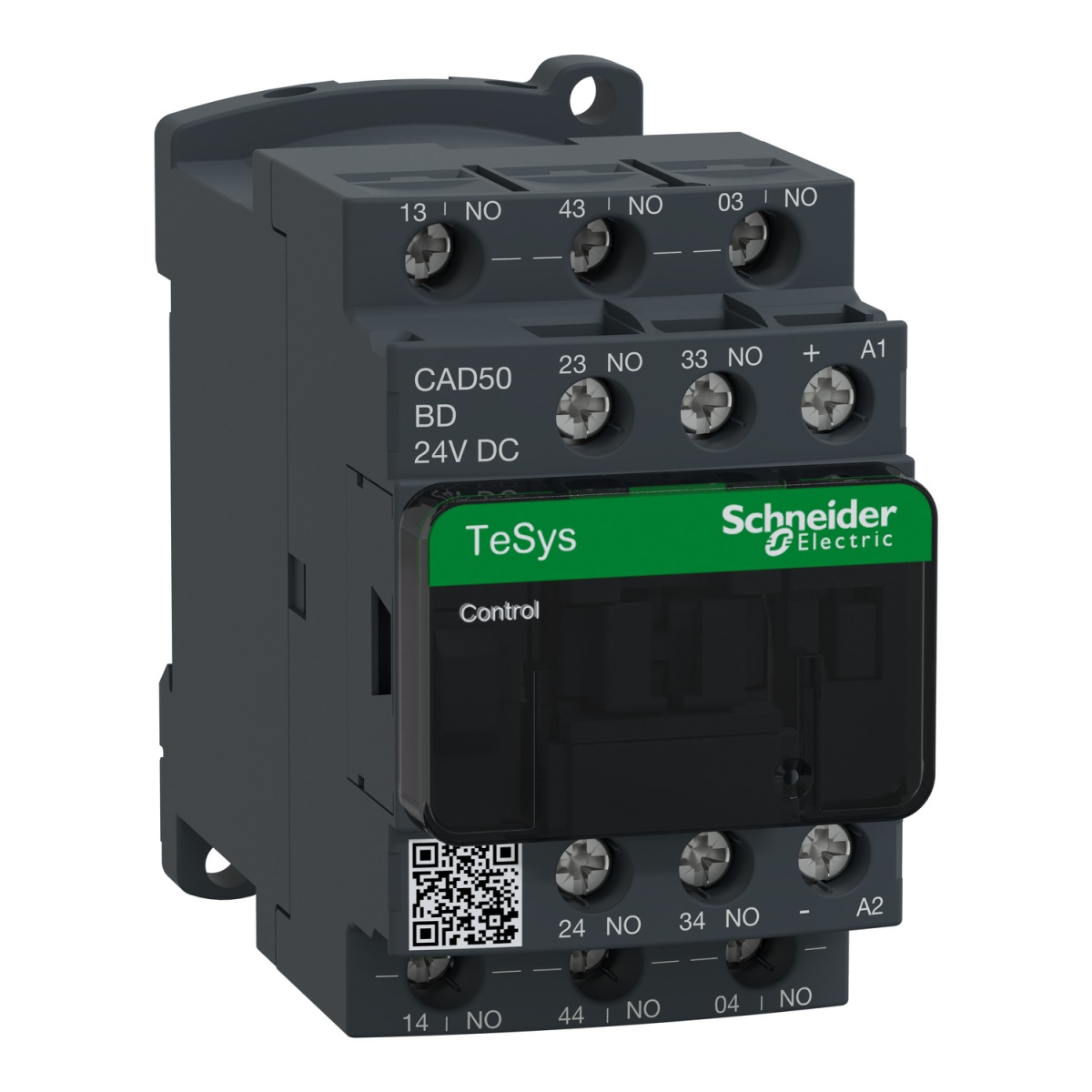

Contactor auxiliar TeSys CAD50 - 5NA 24VCC
Contactors, Motor Circuit Breakers and Accessories
Contactor auxiliar TeSys CAD50 - 5NA 24VCC
Manufacturer Ref:
CAD50BD
Nortécnica Ref:
EAN:
3389110405583
Description
Technical Information
Attributes
Mounting method
DIN-rail/screw
Largura
45
Altura
77
Profundidade
93
Interface
No
Number of auxiliary contacts as normally open contact
5
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie, 400 V
10
Suitable for manual operation
No
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
24
24
Voltage type operating voltage
DC
With LED indication
No
Rated switch current
0.005
Connection type auxiliary circuit
Screw connection
Number of auxiliary contacts as normally closed contact, delayed switching
0
Number of auxiliary contacts as normally open contact, leading
0
Rated operation current
10
Operating voltage AC 50 Hz
-
-
Operating voltage AC 60 Hz
-
-
Operating voltage DC
690
690
Voltage type for actuating
DC
Brands
Schneider
Technical Sheet
