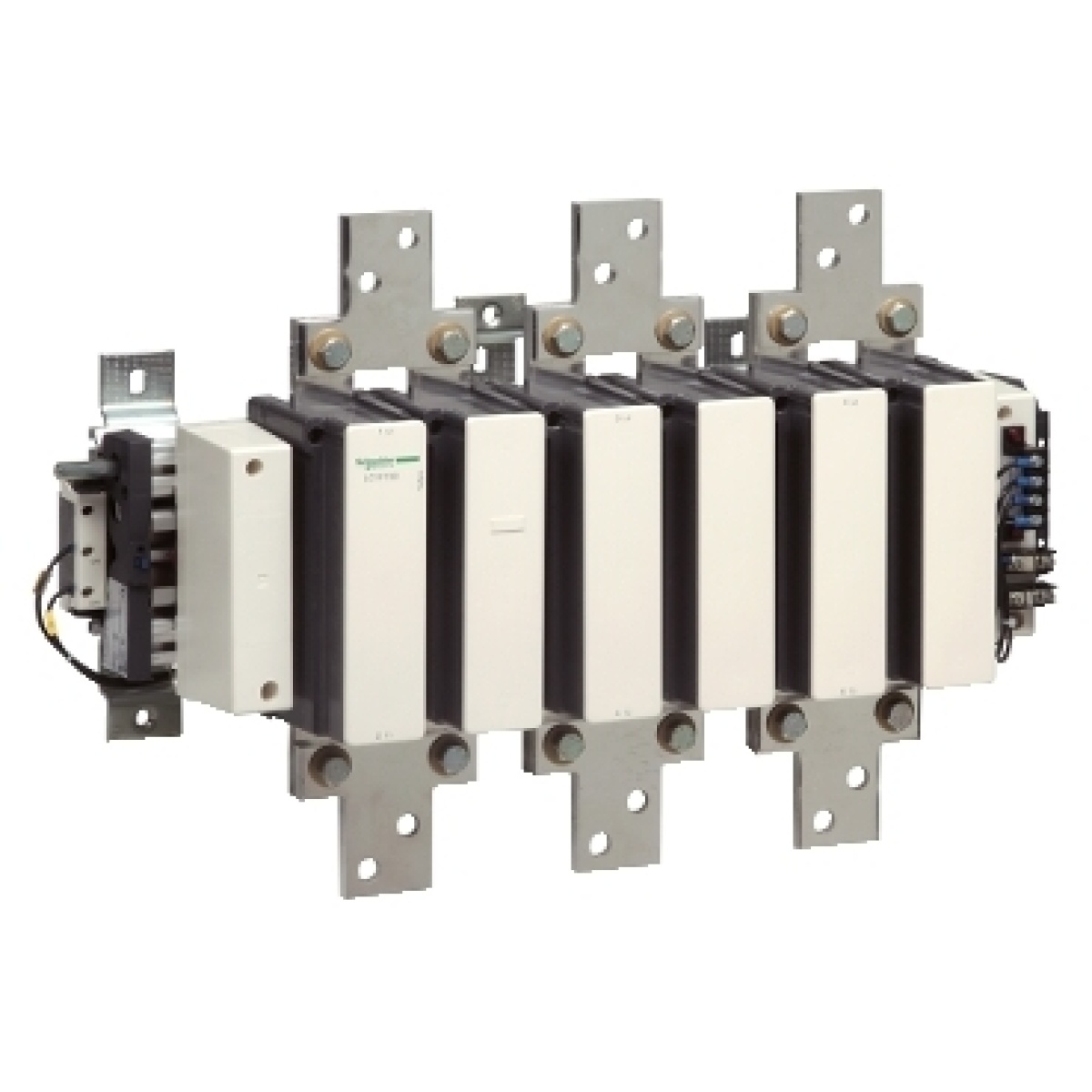

Contactor LC1F - 780A AC3 3P sem bobina
Contactors, Motor Circuit Breakers and Accessories
Contactor LC1F - 780A AC3 3P sem bobina
Manufacturer Ref:
LC1F780
Nortécnica Ref:
EAN:
3389110227239
Description
Technical Information
Attributes
Largura
702
Altura
434
Profundidade
255
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
400
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
780
Rated operation current Ie at AC-1, 400 V
1600
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
-
-
Type of electrical connection of main circuit
Bolt connection
Operating voltage AC 50 Hz
1000
1000
Operating voltage AC 60 Hz
1000
1000
Voltage type for actuating
-
Rated operation current Ie at AC-4, 400 V
225
Rated operation power at AC-4, 400 V
110
Rated operation power NEMA
-
Brands
Schneider
Technical Sheet
