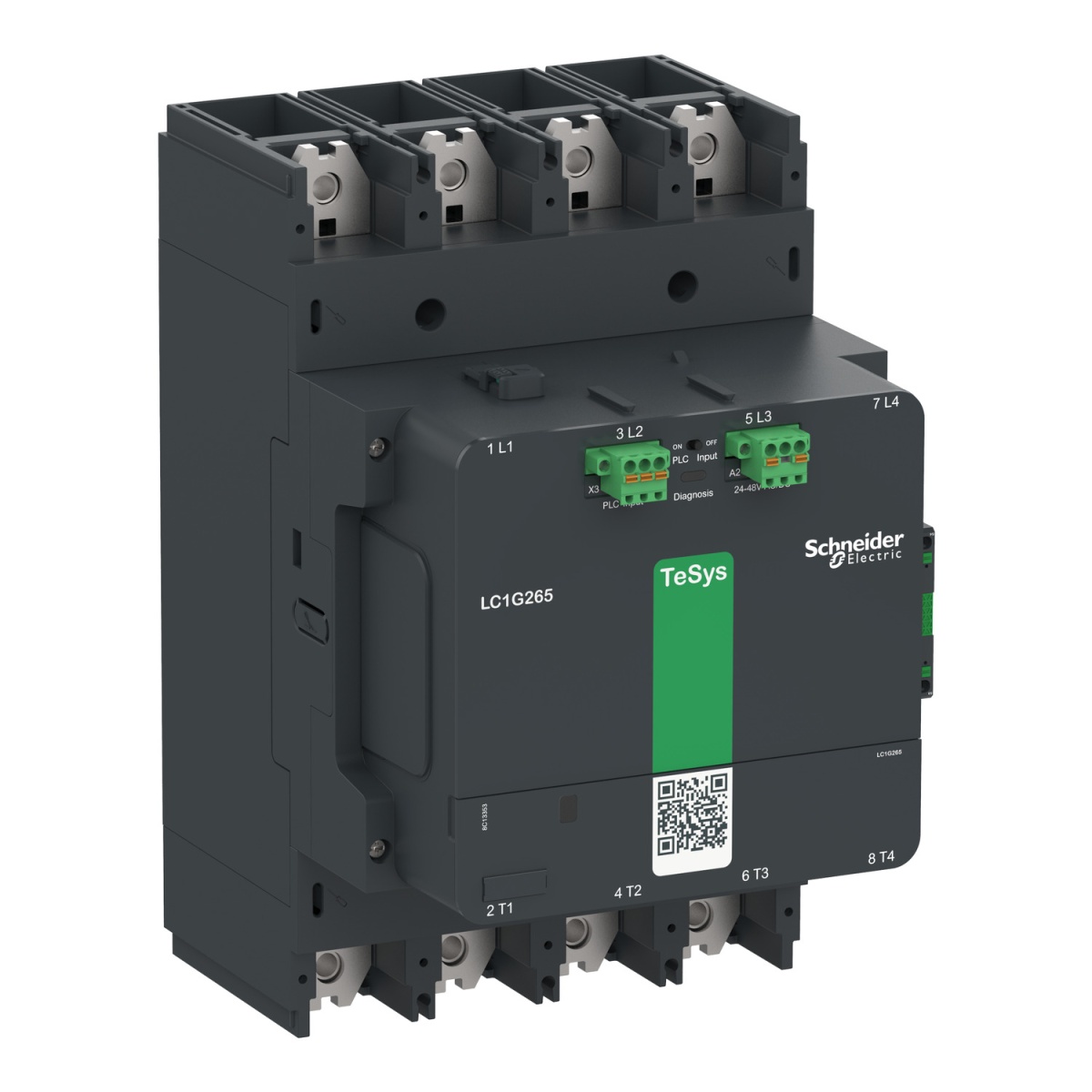

Contactor TeSys LC1G 265A 440V 4P AC3 Avançado 200-500V bobina CA-CC
Contactors, Motor Circuit Breakers and Accessories
Contactor TeSys LC1G 265A 440V 4P AC3 Avançado 200-500V bobina CA-CC
Manufacturer Ref:
LC1G2654LSEA
Nortécnica Ref:
EAN:
3606481922762
Description
Technical Information
Attributes
Width
185
Height
290
Depth
226
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
132.0
Number of normally open contacts as main contact
4
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
-
Rated operation current Ie at AC-1, 400 V
385.0
Rated control supply voltage AC 50 Hz
200
500
Rated control supply voltage AC 60 Hz
200
500
Rated control supply voltage DC
200
500
Type of electrical connection of main circuit
Bolt connection
Operating voltage AC 50 Hz
1000
1000
Operating voltage AC 60 Hz
1000
1000
Voltage type for actuating
AC/DC
Rated operation current Ie at AC-4, 400 V
265
Rated operation power at AC-4, 400 V
132.0
Rated operation power NEMA
200
Brands
Schneider
Technical Sheet
