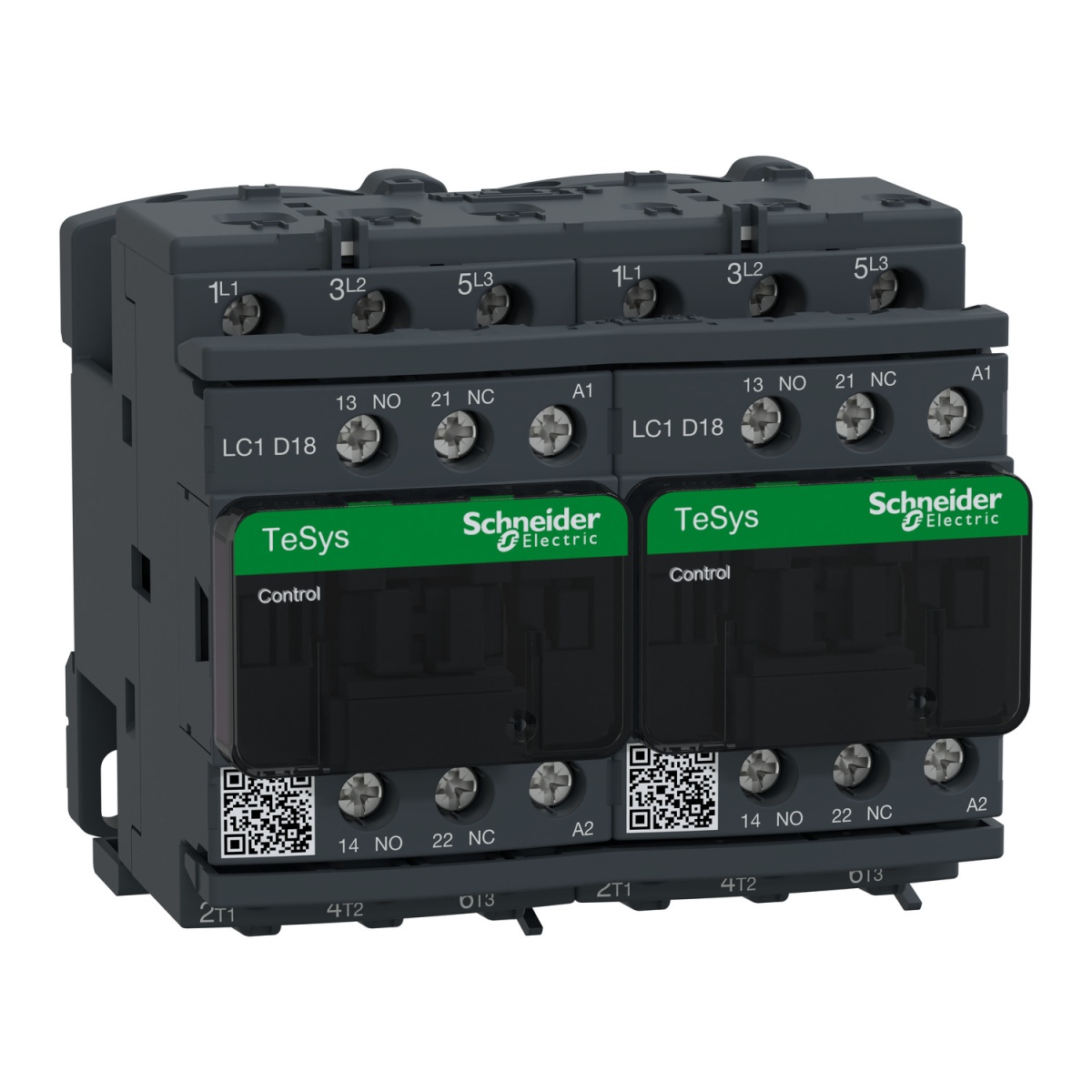

Inversor Tesys D 575VCA 18A IEC
Contactors, Motor Circuit Breakers and Accessories
Inversor Tesys D 575VCA 18A IEC
Manufacturer Ref:
LC2D18B7
Nortécnica Ref:
52LC2D18B7
EAN:
3389110386332
Description
Technical Information
Attributes
Width
90
Function
Reversing contactor
Height
77
Depth
86
Rated operation power at AC-3, 400 V
7.5
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
18
Rated operation current Ie at AC-1, 400 V
32
Number of auxiliary contacts as change-over contact
-
Suitable for rail mounting
Yes
Rated control supply voltage AC 50 Hz
24
24
Rated control supply voltage AC 60 Hz
24
24
Rated control supply voltage DC
-
-
Voltage type operating voltage
AC
Degree of protection IP
IP20
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
440
440
Operating voltage DC
-
-
Voltage type for actuating
AC
Degree of protection NEMA
Other
Rated operation power NEMA
7.46
Brands
Schneider
Technical Sheet
