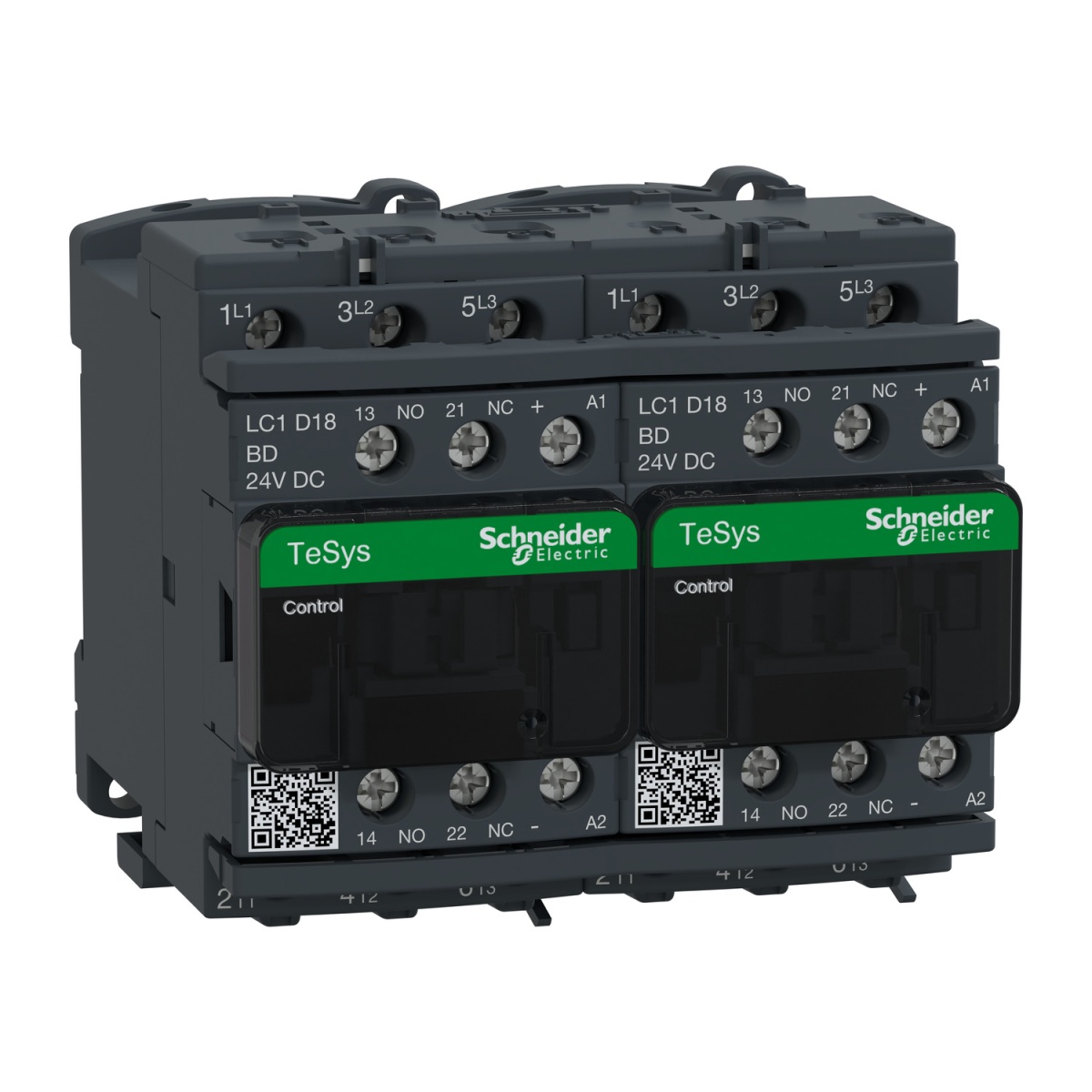

Inversor Tesys D 575VCA 18A IEC
Contactors, Motor Circuit Breakers and Accessories
Inversor Tesys D 575VCA 18A IEC
Manufacturer Ref:
LC2D18BD
Nortécnica Ref:
52LC2D18BD
EAN:
3389110392425
Description
Technical Information
Attributes
Width
90
Function
Reversing contactor
Height
77
Depth
95
Rated operation power at AC-3, 400 V
7.5
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
18
Rated operation current Ie at AC-1, 400 V
32
Number of auxiliary contacts as change-over contact
-
Suitable for rail mounting
Yes
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
24
24
Voltage type operating voltage
DC
Degree of protection IP
IP20
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Operating voltage AC 50 Hz
-
-
Operating voltage AC 60 Hz
-
-
Operating voltage DC
440
440
Voltage type for actuating
DC
Degree of protection NEMA
Other
Rated operation power NEMA
7.46
Brands
Schneider
Technical Sheet
