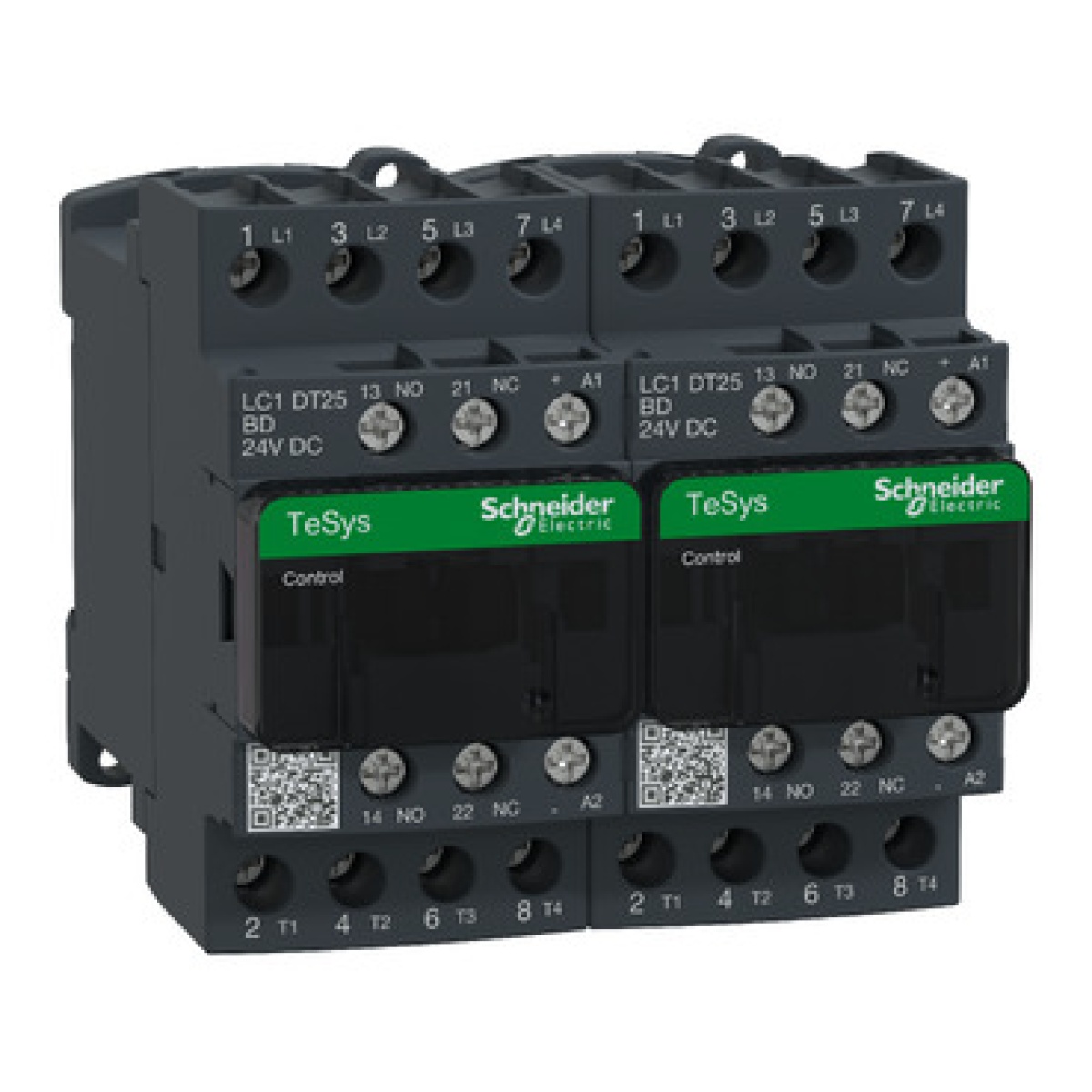

Inversor Tesys D 575VCA 25A IEC
Contactors, Motor Circuit Breakers and Accessories
Inversor Tesys D 575VCA 25A IEC
Manufacturer Ref:
LC2DT25BD
Nortécnica Ref:
52LC2DT25BD
EAN:
3389110247978
Description
Technical Information
Attributes
Width
90
Function
Changeover contactor
Height
85
Depth
90
Rated operation power at AC-3, 400 V
-
Number of normally open contacts as main contact
2
Number of normally closed contacts as main contact
2
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
-
Rated operation current Ie at AC-1, 400 V
25
Number of auxiliary contacts as change-over contact
-
Suitable for rail mounting
Yes
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
24
24
Voltage type operating voltage
DC
Degree of protection IP
IP20
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Operating voltage AC 50 Hz
-
-
Operating voltage AC 60 Hz
-
-
Operating voltage DC
440
440
Voltage type for actuating
DC
Degree of protection NEMA
Other
Rated operation power NEMA
-
Brands
Schneider
Technical Sheet
