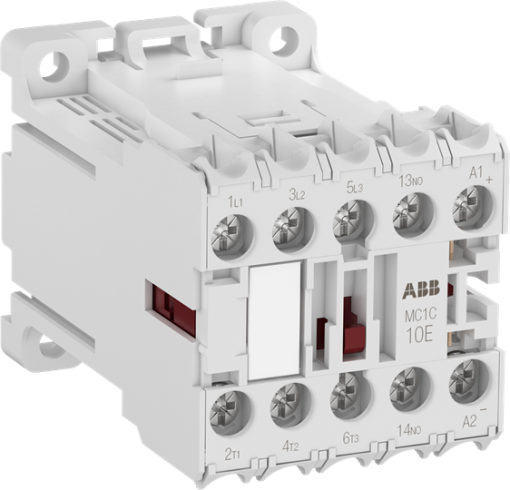

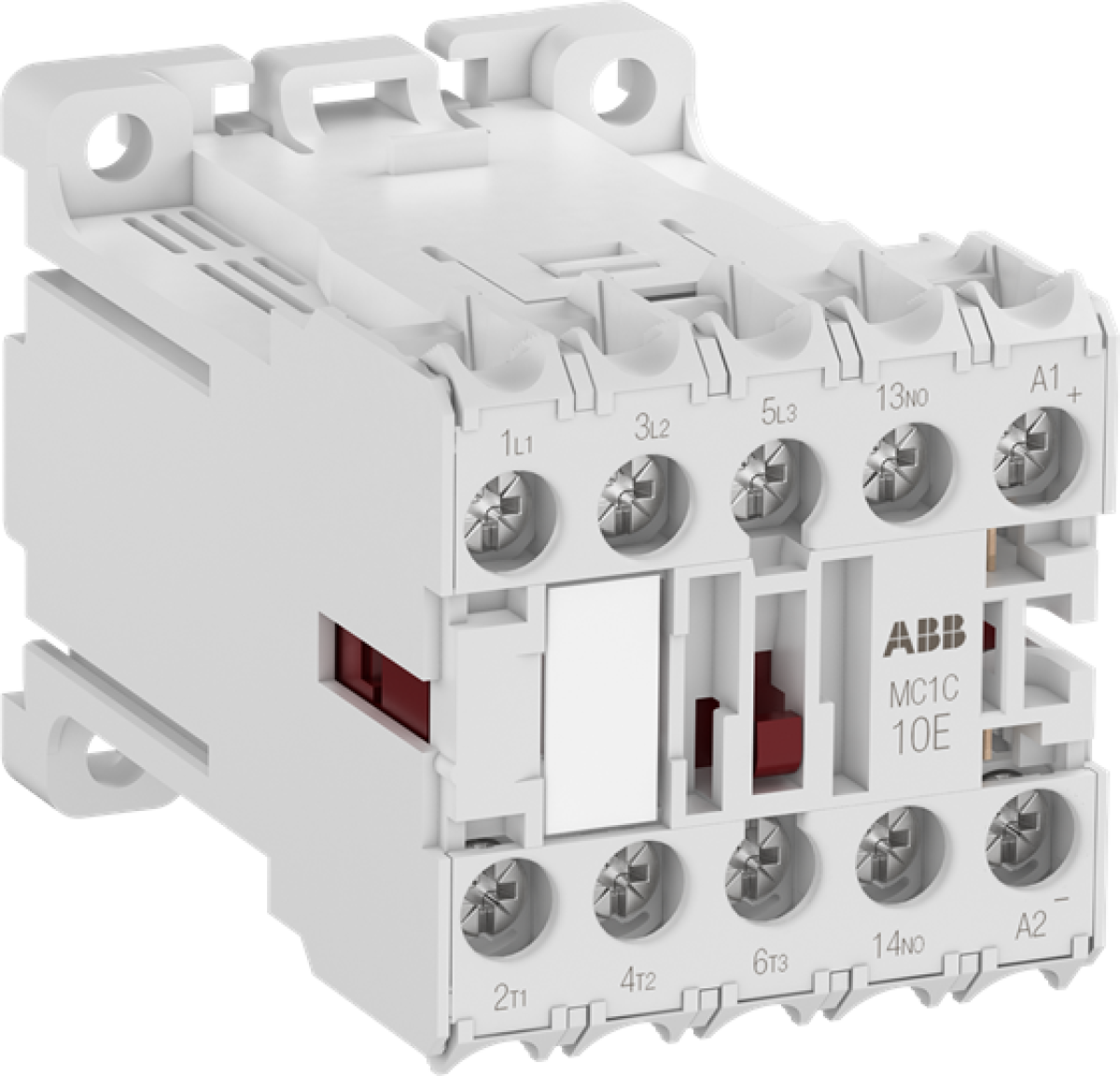

MC1C310ARB Mini Contactor 12 V DC - 3 NO - 0 NC - Ring-Tongue Terminals
Contactors, Motor Circuit Breakers and Accessories
MC1C310ARB Mini Contactor 12 V DC - 3 NO - 0 NC - Ring-Tongue Terminals
Manufacturer Ref:
1SAL101847R9901
Nortécnica Ref:
EAN:
4013614543968
Description
Technical Information
Attributes
Width
45
Height
48
Depth
68
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
4
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
9
Rated operation current Ie at AC-1, 400 V
20
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
12
12
Type of electrical connection of main circuit
Other
Operating voltage AC 50 Hz
440
690
Operating voltage AC 60 Hz
440
690
Voltage type for actuating
DC
Rated operation current Ie at AC-4, 400 V
9
Rated operation power at AC-4, 400 V
4
Rated operation power NEMA
2.2371
Brands
ABB
Technical Sheet
