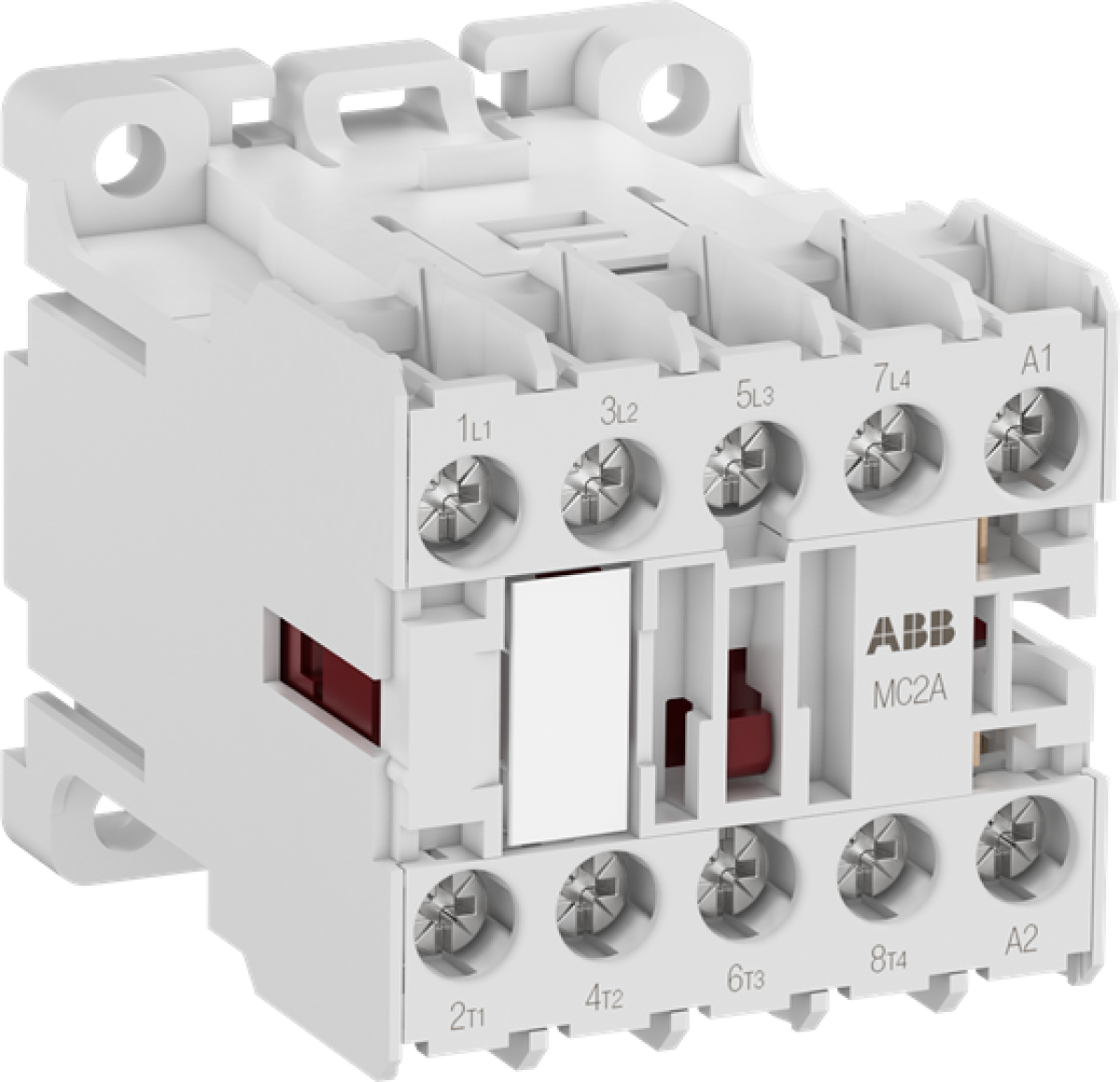

MC2AB00ATY Mini Contactor 50 Hz 500 V AC - 2 NO - 2 NC - Screw Terminals
Contactors, Motor Circuit Breakers and Accessories
MC2AB00ATY Mini Contactor 50 Hz 500 V AC - 2 NO - 2 NC - Screw Terminals
Manufacturer Ref:
1SAL101923R9902
Nortécnica Ref:
EAN:
4013614544514
Description
Technical Information
Attributes
Width
45
Height
48
Depth
56
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
5.5
Number of normally open contacts as main contact
2
Number of normally closed contacts as main contact
2
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
12
Rated operation current Ie at AC-1, 400 V
20
Rated control supply voltage AC 50 Hz
500
600
Rated control supply voltage AC 60 Hz
500
500
Rated control supply voltage DC
-
-
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
440
690
Operating voltage AC 60 Hz
440
690
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
9
Rated operation power at AC-4, 400 V
4
Rated operation power NEMA
2.2371
Brands
ABB
Technical Sheet
