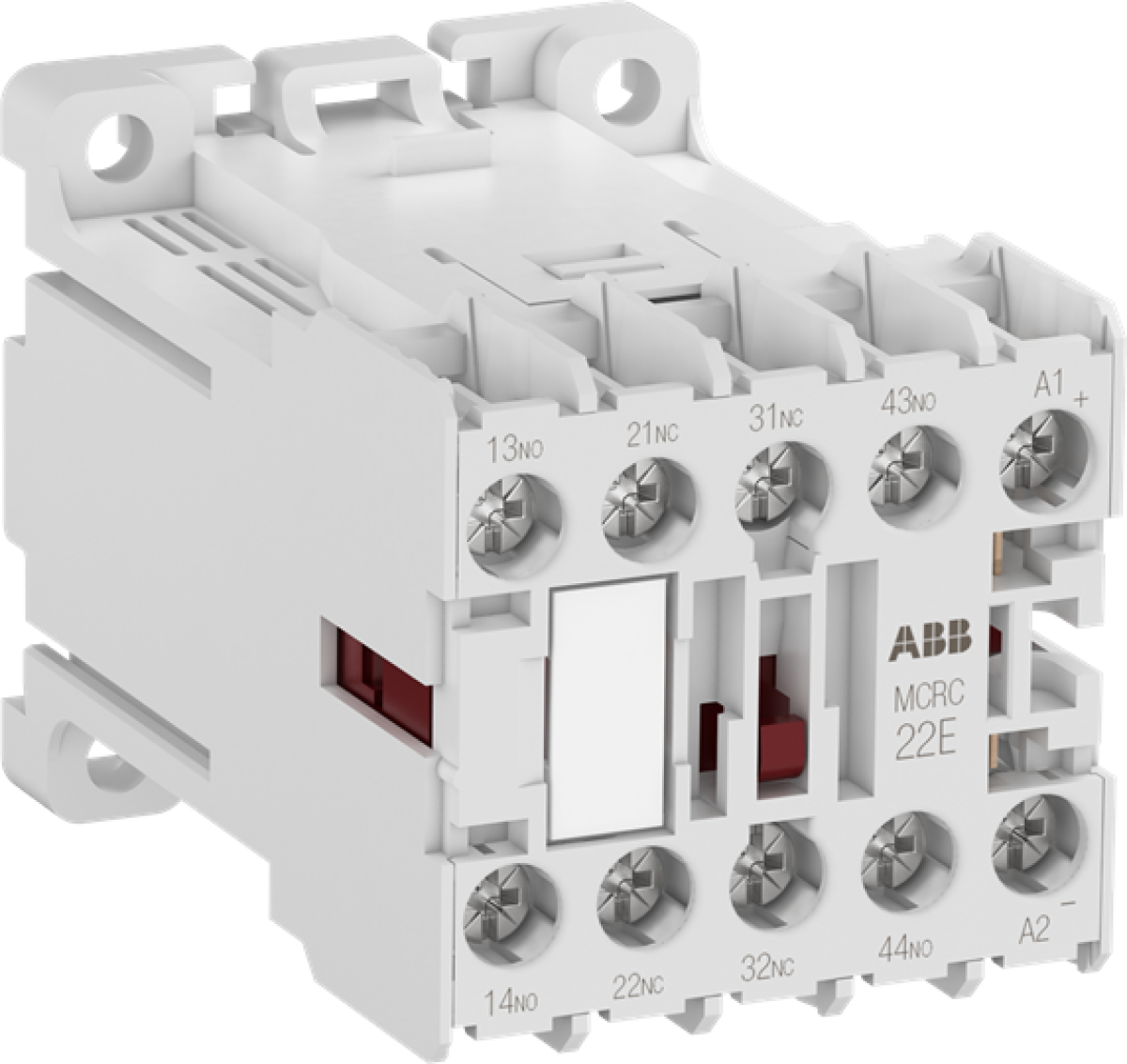

MCRC022ATD Mini Contactor Relay 24 V DC - 0 NO - 0 NC - Screw Terminals
Contactors, Motor Circuit Breakers and Accessories
MCRC022ATD Mini Contactor Relay 24 V DC - 0 NO - 0 NC - Screw Terminals
Manufacturer Ref:
1SAH100026R9900
Nortécnica Ref:
EAN:
4013614547102
Description
Technical Information
Attributes
Mounting method
DIN rail
Width
45
Height
48
Depth
68
Interface
No
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact
2
Rated operation current Ie, 400 V
4
Suitable for manual operation
No
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
24
24
Voltage type operating voltage
DC
With LED indication
No
Rated switch current
6
Connection type auxiliary circuit
Screw connection
Number of auxiliary contacts as normally closed contact, delayed switching
0
Number of auxiliary contacts as normally open contact, leading
0
Rated operation current
6
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
440
440
Voltage type for actuating
DC
Brands
ABB
Technical Sheet
