Contactors, Motor Circuit Breakers and Accessories

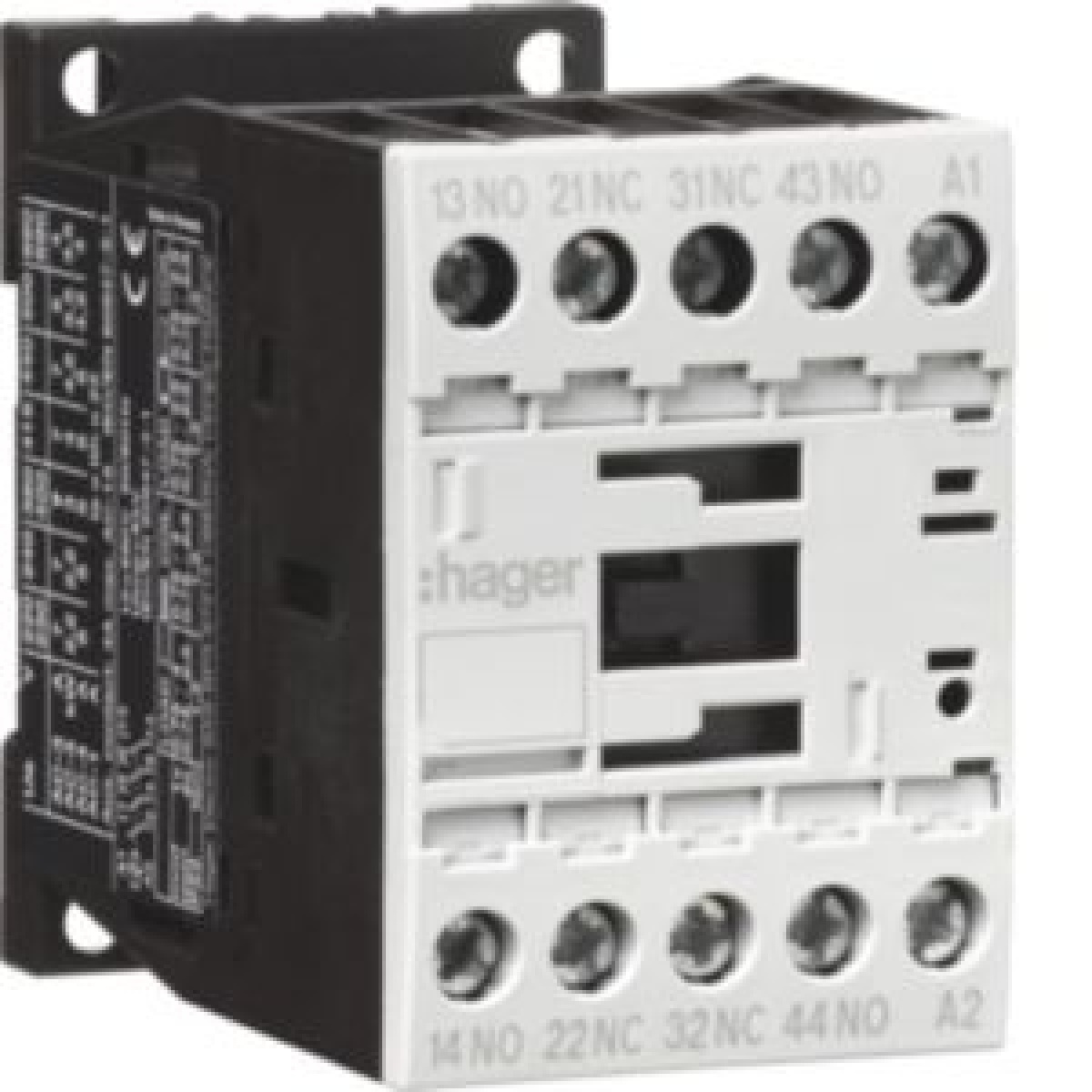

Relé de com 2NA2NF 24 VDC

Manufacturer Ref: EVR00422E
Nortécnica Ref:
EAN: 3250612236527
Description

Relé de com 2NA2NF 24 VDC

Technical Information
Attributes
Mounting method
DIN rail
Width
45
Height
68
Depth
114
Interface
No
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact
2
Rated operation current Ie, 400 V
4
Suitable for manual operation
No
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage AC 50 Hz
600
600
Rated control supply voltage AC 60 Hz
600
600
Rated control supply voltage DC
250
250
Voltage type operating voltage
ACDC
With LED indication
No
Rated switch current
16
Connection type auxiliary circuit
Screw connection
Number of auxiliary contacts as normally closed contact, delayed switching
-
Number of auxiliary contacts as normally open contact, leading
-
Rated operation current
16
Operating voltage AC 50 Hz
-
Operating voltage AC 60 Hz
-
Operating voltage DC
24
24
Voltage type for actuating
DC
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
